I. Project overview
Date of signing: April 2024
Equipment name: φ0.9×1.12m ceramic ball mill
Processing material: Glass
Processing capacity: 200 kg/ time
The ceramic ball mill of this project focuses on the needs of users, such as convenient production and operation. Mill for the center drive, intermittent discharge type ball mill. When the body rotates, the material is highly crushed due to the impact and grinding of the moving hard grinding body. The pulverized material is discharged through the discharge mill door through the discharge cover body and transported by the discharge car.
II. Equipment introduction
Ceramic ball mill is suitable for intermittent production, the fineness of the product is uniform, saving power. The fineness of grinding operation depends on the grinding time to control itself. It has the characteristics of less investment, energy saving and power saving compared with similar products, novel structure, easy operation, safe use, stable and reliable performance.
Equipment features:
1, the main bearing part: the main bearing of the mill is the aligning roller bearing, the friction coefficient is small, and the maintenance is simple.
2, rotating part: the cylinder body is equipped with a protective cylinder body and the end cover of the ceramic liner, in order to load the grinding body into the mill and repair the liner, the cylinder body is provided with a grinding door. In addition, there are special grinding doors and sampling ports for discharging materials. The sample can be taken through the sampling port to determine whether the material has been ground to the required fineness.
3. Transmission device: the motor and reducer drive the spindle through the coupling to make the mill turn. In addition, considering safety factors, the coupling guard is also provided.
4, the mill frame: after the whole welding is completed, the integrated processing and manufacturing ensure the processing, matching accuracy and form and position tolerance of each part, and effectively improve the installation accuracy and reliability of the whole machine. The bottom frame is provided with a sloping ladder, which is convenient for manual operation and maintenance.
5, discharge device: the access door is easy to open, easy to replace the grinding door when loading and unloading. With sealing felt and discharge valve, good sealing, can be discharged in the case of mill rotation, reduce the accumulation of grinding materials in the dead corner, can ensure the orderly discharge of materials and ensure the surrounding working environment clean and tidy.
6, feed port: through the quick joint and nozzle and the previous process connection, feeding is convenient and fast, reduce the operation time.
7, discharge car: the lower part of the discharge car is equipped with moving casters, which can easily move the material in the hopper to the required position, easy to operate, and effectively reduce the work intensity.
8, electric control part: easy to start and stop, and with a click button, can control the grinding door stop position, easy to operate.

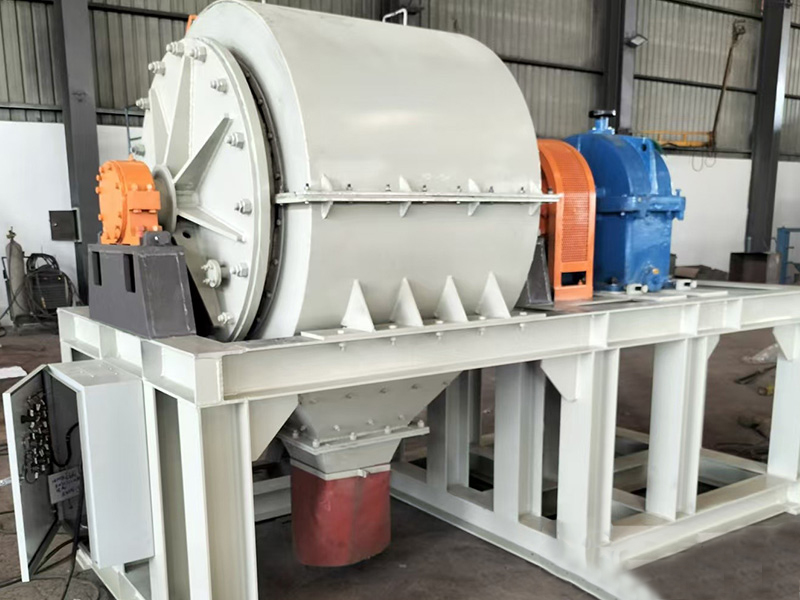

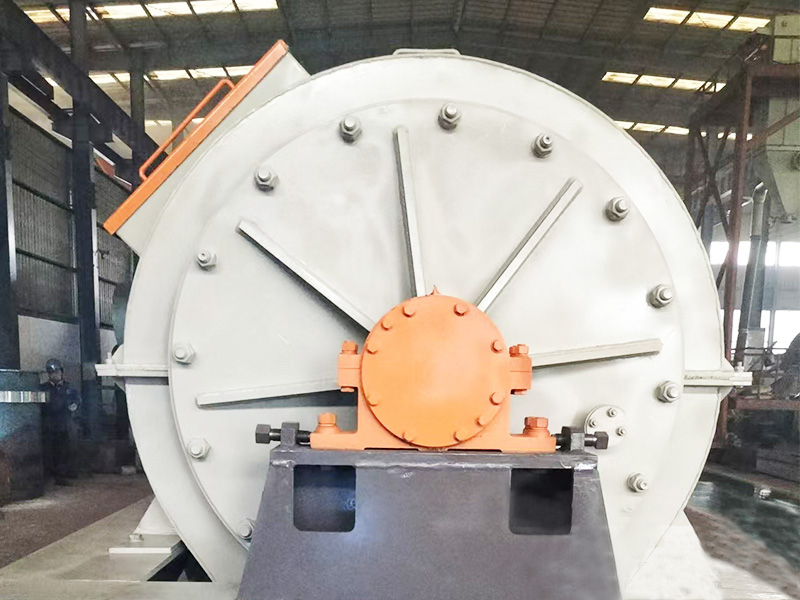

III. On-site pictures
