Overall Introduction of Fertilizer (Compound Fertilizer) Production Line System
The fertilizer production line, also known as the compound fertilizer production line system, is a complete set of automated equipment system specifically designed for large-scale and standardized production of single-nutrient fertilizers such as nitrogen, phosphorus, and potassium, as well as multi-component compound fertilizers. It is mainly suitable for mainstream fertilizer products such as NPK compound fertilizers, sulfur-based/nitrogen-based compound fertilizers, water-soluble fertilizers, and micronutrient fertilizers. The entire production line relies on core processes such as physical granulation, precise proportioning, and drying modification, without complex chemical reactions. It has the characteristics of wide raw material adaptability, high automation level, stable product quality, energy conservation and environmental protection, and short production cycle. It is widely used in fertilizer production enterprises, agricultural materials processing plants, and agricultural industrial parks, etc. Customized complete sets of equipment ranging from 1 to 500,000 tons per year can be provided according to production capacity requirements.
I. Overall Overview of the Production Line
The entire fertilizer production line adopts a modular and integrated layout, achieving full automation and continuous flow operations throughout the process. From raw material feeding, precise batching, crushing and mixing, granulation and molding, to drying and cooling, screening and classification, coating modification, automatic packaging, stacking and storage, the entire process operates in a closed loop. The equipment is compatible with various chemical raw materials such as urea, phosphorus ammonium, potassium chloride, potassium sulfate, heavy calcium, nitric acid, and micronutrients, and can flexibly adjust to different formulations of agricultural fertilizers to meet the differentiated fertilization needs of crops in fields, fruits and vegetables, seedlings, and economic crops. At the same time, the equipment can be customized according to different regional climates and working conditions, adapting to complex production environments such as high temperatures, high humidity, and voltage fluctuations. The equipment has extremely strong durability and adaptability.
The core of the production line is based on three main processes: roller granulation, disc granulation, and extrusion granulation. It can be freely selected according to the shape of the finished granules, production capacity requirements, and raw material characteristics. The finished granules are round, uniform, high in strength, do not clog, have good water solubility, and all indicators comply with national fertilizer production standards.
II. Composition of Core Equipment (Comprehensive Modular Configuration)
The complete fertilizer production line consists of ten core system equipment. Each module works collaboratively to ensure continuous and stable production with controllable precision.
1.Raw material pre-treatment system
It includes raw material crusher, screening machine, and feed conveyor. It is mainly used for crushing agglomerated and large-sized fertilizer raw materials, uniformly controlling the particle size of the raw materials within the standard range, removing impurities, screening qualified materials, solving problems such as inaccurate proportioning and failure of granulation caused by agglomeration and uneven particle size of the raw materials, providing standardized raw materials for subsequent processes, and ensuring uniform and stable mixing and granulation effects. For high-hardness mineral raw materials, the dedicated crusher can be adapted for high-load crushing operations, avoiding equipment blockage failures.
2. Intelligent Precise Ingredient Mixing System
The core adopts a microcomputer-based automatic multi-bin batching equipment, equipped with high-precision weighing sensors and an intelligent control system. It can simultaneously complete the automatic feeding and precise weighing of various raw materials, as well as the proportion-based blending. The system supports custom formula storage and can be switched to different nitrogen-phosphorus-potassium ratio products with a single click. The batching accuracy error is ≤ ±0.5%, completely solving the problems of large deviations in manual batching and unstable fertilizer efficacy. It ensures that the nutrient content of each batch of fertilizers is uniform and consistent, and is suitable for standardized batch production.
3. Mixing and blending system
Using a horizontal double-axis mixer or a vertical disc mixer, with variable frequency speed control, the mixed and proportioned raw materials are subjected to high-intensity stirring and mixing. The equipment can achieve a uniformity of over 98%, enabling the full integration of nitrogen, phosphorus, potassium, and medium and trace elements as well as additives. This ensures the complete blending of nutrients, eliminates the problem of uneven nutrient distribution and product stratification, and guarantees the balanced and stable fertilizer efficacy from the very beginning.
4. Granulation and Forming System
As the core process module of the production line, it is divided into three mainstream granulation equipment, which are suitable for different production needs: The drum granulator is suitable for large-scale production with high capacity and high output, and it forms granules through the assistance of steam or atomized water during rolling, with high granulation rate and large output; The disc granulator is flexible to operate and the granules are round and uniform, suitable for multi-formula and small-batch precise production; The extrusion granulator does not require water addition or drying, and can directly form granules, suitable for high-concentration fertilizers and functional fertilizers production, with no material waste. The overall granulation system has a granulation rate of over 90%, and the finished granules have moderate hardness and are not prone to breaking.
5. Drying System
The drum-type energy-saving dryer is adopted, along with a thermal air circulation heating system. The wet granules after granulation are uniformly dried by low-temperature hot air. The drying temperature and rotation speed can be controlled to precisely regulate the moisture content of the finished products, avoiding dampness, mold growth, and agglomeration of the particles. The equipment adopts an逆流 drying process， with high heat utilization rate， energy saving and consumption reduction, no material loss during the drying process, and ensuring stable particle formation.
6. Cooling System
Install drum cooling equipment or fluidized bed cooling devices, and adopt the counter-flow air cooling process to rapidly cool the 70-80℃ hot particles from the drying process to room temperature. Directly packaging the hot particles may lead to problems such as moisture re-entrainment, agglomeration, and bulging of the packaging bags. The cooling process can stabilize the particle properties, enhance the adhesion of the subsequent coating agent, significantly improve the stability of the finished product storage, and extend the shelf life of the fertilizer.
7. Screening and Grading System
Using multi-layer vibrating screening machines, the cooled particles are sorted and screened to precisely separate large particles, qualified particles, and fine powder waste. The qualified particles enter the next process, while the unqualified large particles and fine powder can be recycled for re-crushing and granulation, achieving 100% material recycling, without any production waste, and reducing raw material loss and production costs.
8. Membrane modification system
Equipped with a dedicated granule coating machine, it can spray auxiliary materials such as anti-caking agents, slow-release agents, and colorants according to product requirements. After the coating treatment, the surface of the fertilizer granules forms a protective film, effectively preventing moisture absorption, caking, and compaction during storage and transportation. At the same time, it can achieve slow-release, controlled-release, and long-lasting efficacy functions, thereby enhancing the added value and market competitiveness of the fertilizer products.
9. Automatic Packaging System
Using a fully automatic quantitative packaging machine, it can be adapted to different specifications of bagged fertilizers ranging from 2.5kg to 50kg. It can automatically complete the integrated operations of measurement, bagging, sealing, sewing, and conveying. The equipment has precise measurement, tight sealing, adjustable speed, and can be adapted for high-speed continuous production. It can prevent problems such as material leakage, insufficient filling, and overfilling. The finished products are neatly packaged and comply with market circulation standards.
10. Intelligent Palletizing and Warehousing System
The system is equipped with robotic palletizing machines and conveyor lines. The finished products after packaging are sent to the palletizing station by the conveying equipment, automatically completing layer-by-layer palletizing and stacking formation. The entire process does not require any manual intervention, significantly reducing labor costs and improving storage and loading efficiency. It is suitable for the standardized operation mode of modern factories.

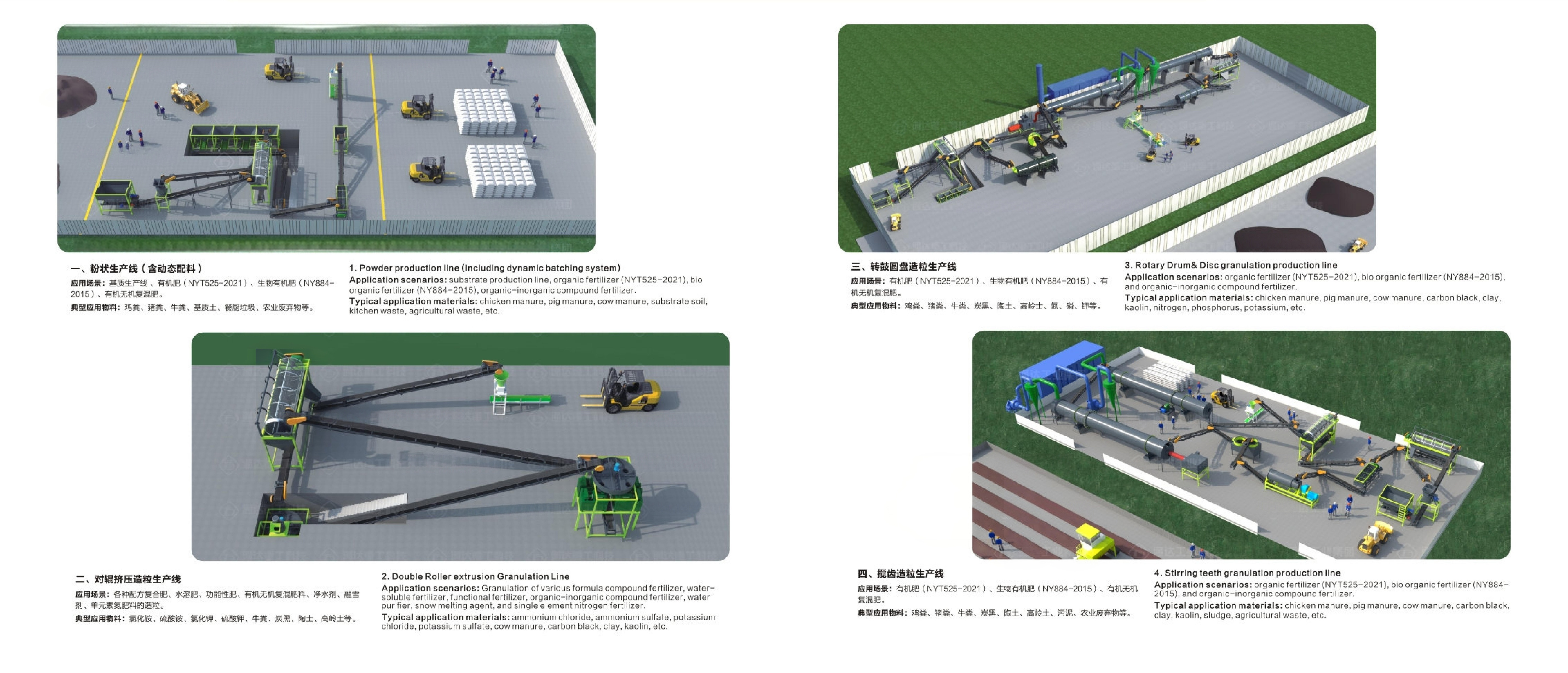

III. Complete Production Process Flow
Raw materials are stored → sorted and impurities are removed → ground and refined → intelligent and precise ingredient blending → high-speed mixing and blending → automated granulation and molding → hot air drying and dehydration → air cooling and shaping → vibration screening and classification → waste material recycling and reuse → particle coating and modification → finished product inspection → automatic quantitative packaging → robot palletizing → finished product storage/outlet. The entire process is automated and closed-loop production, with closely connected processes and high efficiency and stability in production.
IV. Core Advantages of the Production Line
1.High degree of automation, saving labor costs
The entire process is fully controlled by microcomputers, achieving automation from ingredient preparation, production to packaging and palletizing. Only 1-2 operators are needed for on-site operation, significantly reducing reliance on manual labor and minimizing human errors. This is suitable for modern factory lean production management.
2. The product has wide compatibility and can be put into production flexibly.
It can produce a variety of products such as general-purpose compound fertilizers, high-concentration fertilizers, slow-release fertilizers, trace element fertilizers, and water-soluble fertilizers. It supports the switching of any nitrogen-phosphorus-potassium formula and is suitable for all types of agricultural planting needs including grains, fruits and vegetables, flowers, and ornamental plants. Its market adaptability is extremely strong.
3. The product quality is stable and highly recognized by the market.
Precise ingredient blending, uniform mixing, and standardized granulation process ensure that each batch of fertilizer has uniform nutrient content, plump particles, moderate hardness, and is not prone to caking. It has good water solubility, uniform fertilizer release, and fully complies with national fertilizer industry standards. The qualified rate of the finished product can reach over 99%.
4. Energy-saving and environmentally friendly, zero-waste production
The equipment adopts a sealed production structure, ensuring no dust leakage and maintaining a clean production environment. The drying system employs a heat air circulation energy-saving technology, featuring low energy consumption and low noise. All unqualified materials and fine powder waste can be recycled for re-production, achieving zero waste of materials and no emission of pollutants, meeting the requirements of environmental protection production.
5. Flexible investment options with high cost-effectiveness
The production line can be customized according to customer needs, offering different production capacity specifications ranging from small to medium to large (1-500,000 tons/year). The equipment layout is compact, the floor space is small, installation is convenient, and the production cycle is short. The equipment has a low failure rate, simple maintenance, stable operation, high return on investment, and is suitable for start-up enterprises and the upgrading of large-scale fertilizer plants.
V. Scope of Application and Production Capacity Specifications
1.Compatible product
NPK triple compound fertilizer, sulfur-based compound fertilizer, nitrate compound fertilizer, high-concentration compound fertilizer, trace element fertilizer, slow-release fertilizer, water-soluble granular fertilizer, and various other agricultural chemical fertilizers.
2. Customized production capacity
Small-scale production line: 1-50,000 tons/year, suitable for small and medium-sized agricultural chemical processing plants and township agricultural chemical enterprises; Medium-scale production line: 50,000 - 200,000 tons/year, suitable for regional fertilizer manufacturing enterprises; Large-scale production line: 200,000 - 500,000 tons/year, suitable for large-scale and brand-oriented fertilizer production bases.
3. Adapt to the scenario
Standardized fertilizer production workshop, agricultural industrial park, agricultural input processing base, organic fertilizer and chemical fertilizer compound processing plant, fertilizer technological transformation and upgrading project. At the same time, according to different working conditions in Southeast Asia, the Middle East, Africa and other overseas regions, customized versions of anti-corrosion, high-temperature resistance, pressure stability, dust-proof special equipment can be provided.
VI. Quality and After-Sales Guarantee
The entire fertilizer production line equipment is made of thickened steel and wear-resistant components, featuring corrosion resistance, wear resistance, and a long service life. It can operate continuously at high load for a long time. Before leaving the factory, the equipment undergoes complete machine debugging and testing. During the installation process, professional on-site installation, debugging, and training services are provided. After delivery, one-stop services such as long-term after-sales maintenance, equipment maintenance, formula technical guidance, and equipment upgrading are offered to ensure that customers can start production without worries and achieve stable profits.
