I. Project overview
Project location: Yerevan, Armenia
Product name: Cement grinding (clinker, gypsum, slag)
Production scale: 8-10 tons per hour
Service scope: Process design of the whole line, including raw material transportation, grinding, finished product storage and transportation system, dust collection system, electrical, equipment supply, equipment transportation, etc.
II. Production site introduction
[Project highlight] : grinding effect is good
[Project background] : The customer company is located in Moscow and has established a branch in Armenia. There are two cement grinding lines in Armenia, and he wants to set up a new grinding production line with an output of 8-10 tons/hour.
The whole production line includes: belt scale, belt conveyor, crusher, ball mill, fan, bag dust collector, screw conveyor, electrical equipment, etc
III. Equipment used
| NO. | Device name | Model | QTY |
| 1 | Belt weigher | B500×1800 | 3PCS |
| 2 | Belt conveyor | B500×37.1m | 1PCS |
| 3 | Hammer crusher | PC0806 | 1PCS |
| 4 | Screw conveyor | LS250×4700 | 1PCS |
| 5 | Cement mill | Ф1.83×9m | 1PCS |
| 6 | Bag type dust collector | PPC32-3 | 1PCS |
| 7 | Air blower | 9-19№8D | 1PCS |
| 8 | Electrical system | 1SET |

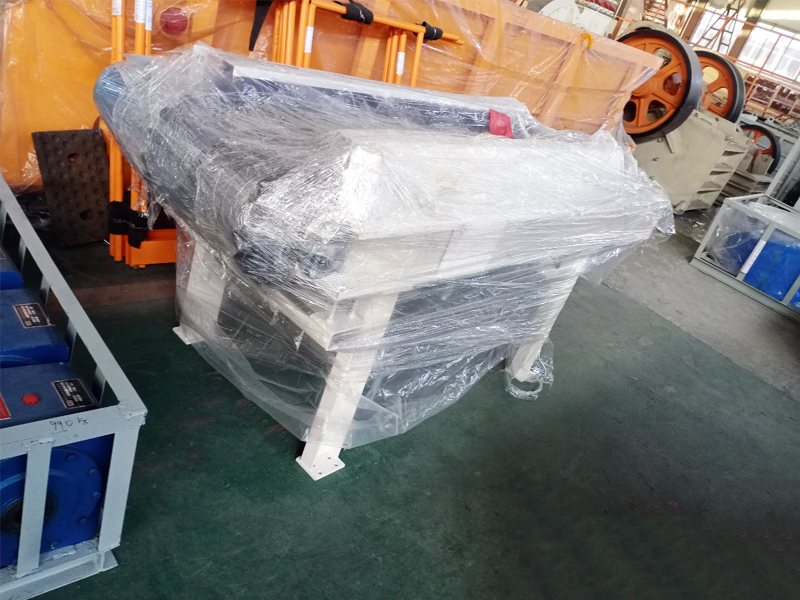

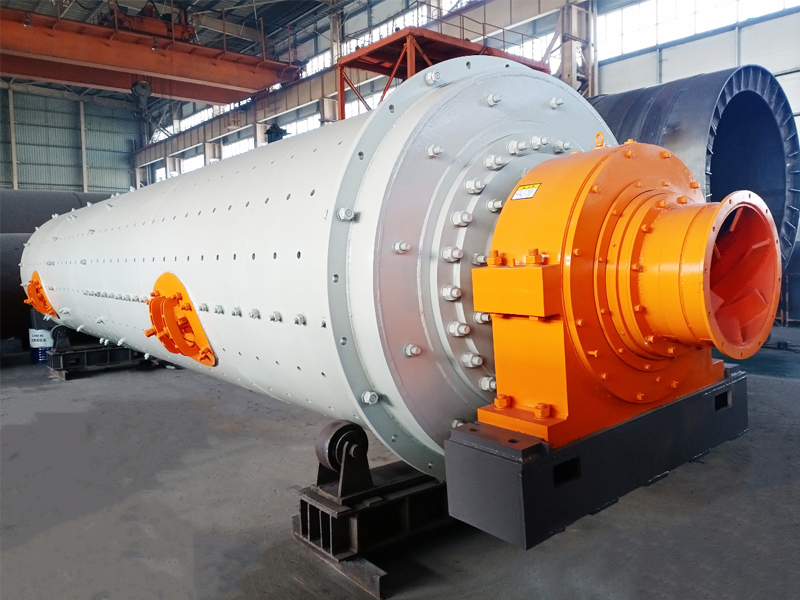

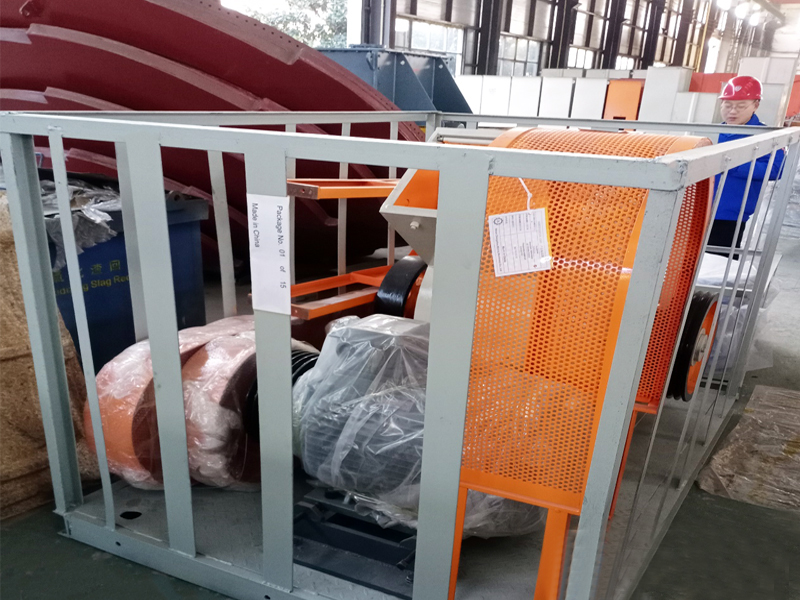

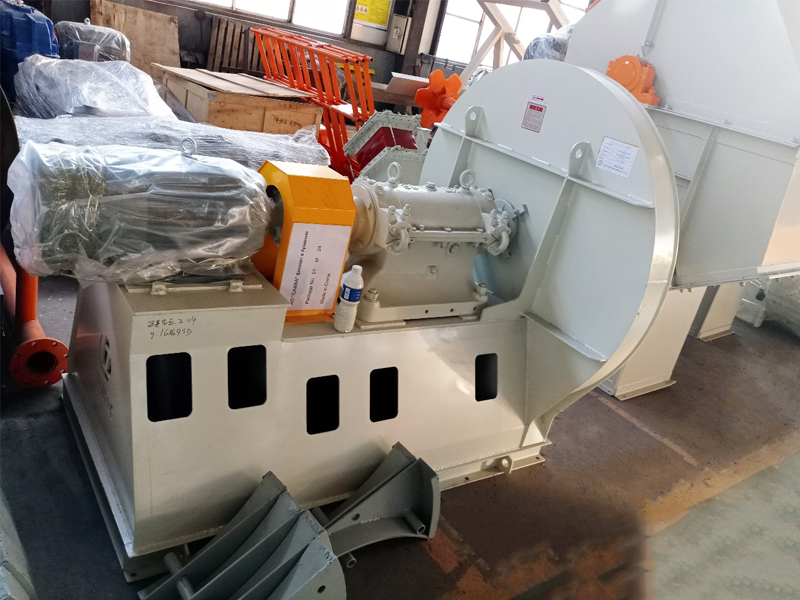

IV. Delivery photos
