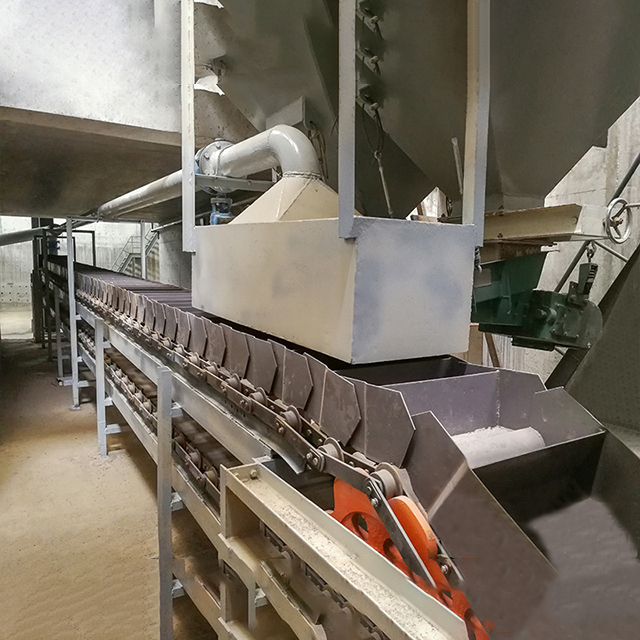

BL Scale Conveyor

BL scale conveyor

Our production of scale conveyor is divided into light and medium two categories, the width of the conveyor trough is 400mm-1200mm, there are seven models, transport speed of 0.05-1.6m/s, transport capacity of 450-1750m³/h, can meet a variety of production needs.

Throughput: 450-1750m³/h

Specification Model: BL400-BL1200

Operating speed: 0.05-1.6m/s

Application: Used in mining, building materials, metallurgy, coal, chemical and other industries of sharp, hot, large and corrosive materials conveying.

BL scale conveyor product introduction

Scale conveyor is a kind of ground conveyor, which can transport materials in a horizontal and inclined direction. The conveying equipment uses the plate chain as the traction element, which is not only strong, high efficiency and reliable, but also the conveying inclination can reach 30° ~ 35°, the bending radius is generally about 3m ~ 5m, and can also transport high temperature materials (600 ° C ~ 700 ° C).

Outstanding advantage

1, compact structure, convenient installation, debugging, less wearing parts, and easy to replace;

2, scale plate hopper for wear-resistant steel stamping, cumulative error is small, stable and reliable;

3, the chain as a traction element, with high strength, high efficiency, reliable work characteristics, but also can achieve heavy load, long distance transportation;

4, strong adaptability, can transport large blocks, with sharp edges, hot materials, and complete cooling, cleaning and other processes during the transportation process.

Working principle

BL type scale conveyor is a flexible traction continuous conveying equipment with traction chain as a traction mechanism and scale hopper as a bearing device. When working, the sprocket of the head device is driven by the transmission device to rotate, and the chain meshing with the sprocket also moves forward, while the hopper and its supporting roller fixed on the chain also move forward synchronously along the track on the frame; When the material is added to the hopper in the feed mouth, the material is transported to the discharge port with the movement of the hopper, and under the combined action of gravity and centrifugal force, the material is unloaded from the discharge port and enters the next process.

Technical parameter
