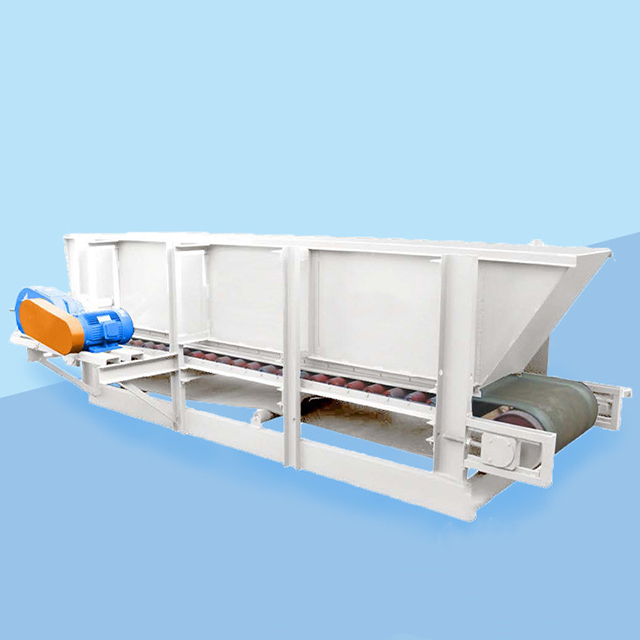

Box feeder
Feed rate: 25-60m³/h
Grid: XGD65-XGD120
Application: clay, fly ash, loose shale, coal gangue and other materials.
Box feeder product introduction
The box feeder has four feeding products with the width of its conveyor belt, the belt width of the feeder is 0.65m-1.2m, and the feeding amount is 25-60m³/h. It is suitable for uniform feeding of clay, fly ash, pulverized shale, coal gangue and other materials with moisture content less than 20%.
Outstanding advantage
The box-type feeder has the characteristics of large box volume, simple structure, convenient adjustment of feed amount, and high moisture content of raw materials, etc. It is widely used in ceramic plants and brick factories for various raw materials feeding and batching. However, when it is used for feeding and mixing block hard materials, the pulling rod must be cancelled; When used to supply the aged material, because this material has been close to the forming moisture and high plasticity, the top of the receiving groove should be as large as possible with the tape surface Angle, otherwise it is easy to form a "material arch", and can not be smoothly given and batched.
Working principle
By the motor through the transmission mechanism, the tape (or chain plate) for continuous (or intermittent) movement to achieve uniform feeding. The material is stored in the material box on the surface of the tape (or chain plate). Change the feed amount by adjusting the height of the cartridge valve plate or the speed of the tape (or chain plate).
Technical parameter
| Specification and model | Production capacity (m³/h) | Power (kW) | Belt width (mm) | Tape speed (m/min) | Reduction gear | Conveyor belt length (mm) | Weight (t) |
| XGD65 | 0~25 | 7.5 | 650 | 1~6 | ZQ400 | 6900 | 2.5 |
| XGD80 | 0~30 | 7.5 | 800 | 1~6.6 | ZQ400 | 8900 | 3.5 |
| XGD100 | 0~40 | 11 | 1000 | 1~6.5 | ZQ500 | 12500 | 5 |
| XGD120 | 0~60 | 15 | 1200 | 1~6 | ZQ650 | 15000 | 7 |
