CO2 Multi-component PSP Foam Insulation Box, Preservation Box, Advertising (KT) Board Production Line

Share to:

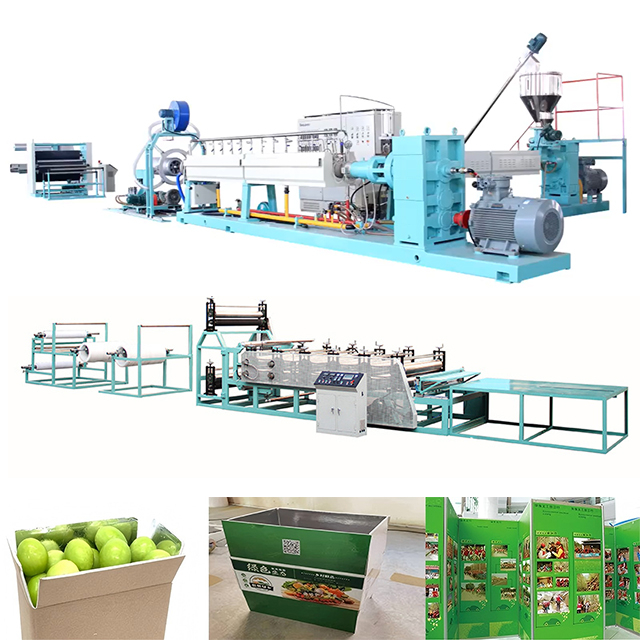

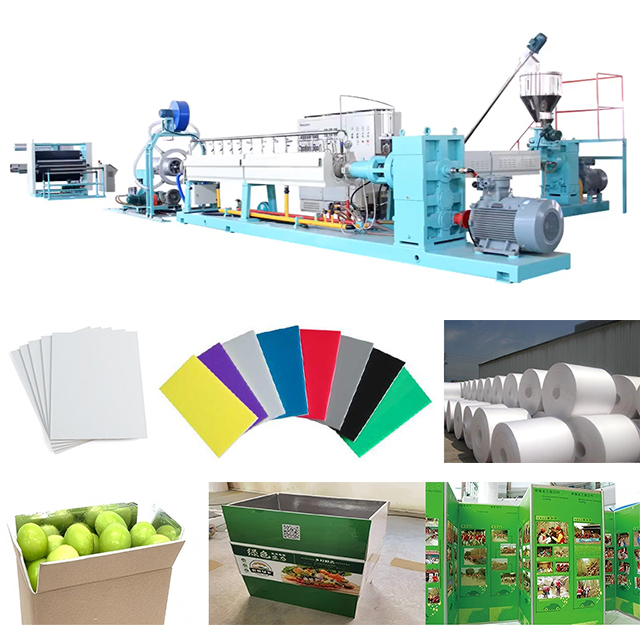

CO2 Multi-component PSP Foam Insulation Box, Preservation Box, Advertising (KT) Board Production Line

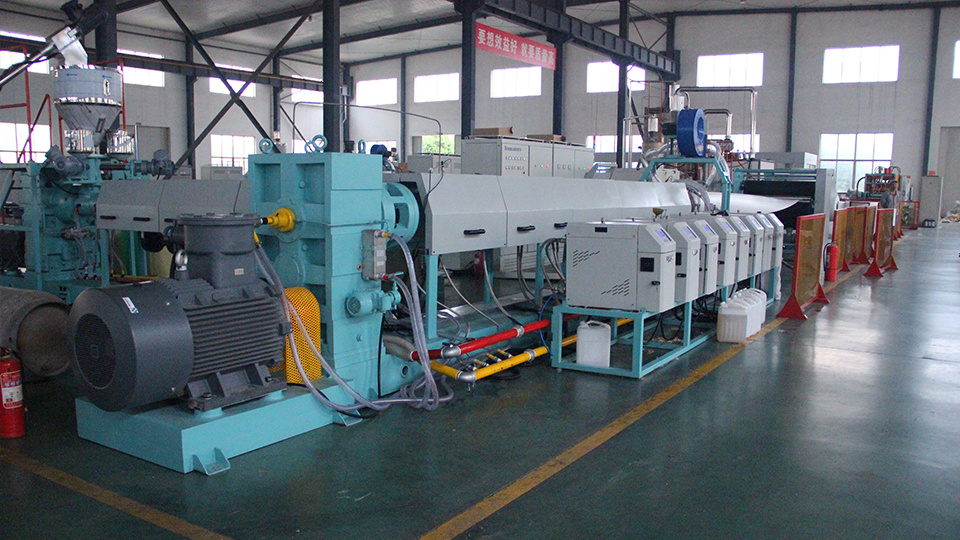

This production line adopts a double-machine series high-foaming sheet production process. The PSP foaming sheet produced is a new type of packaging material, which not only has excellent heat insulation and buffering performance, but also has a pearl-like appearance color. It has the advantages of shock absorption, sound insulation, heat preservation, moisture-proofing, safety and hygiene, and plasticity. It is widely used in the packaging and advertising boards of various products such as food preservation and heat preservation, fruits, electronics, daily necessities, and hardware products.

Availability:

Quantity:



Inquire Add to Basket

Product Description

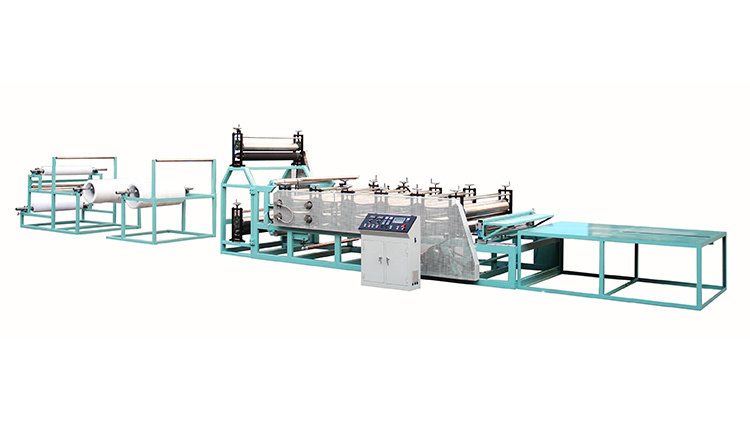

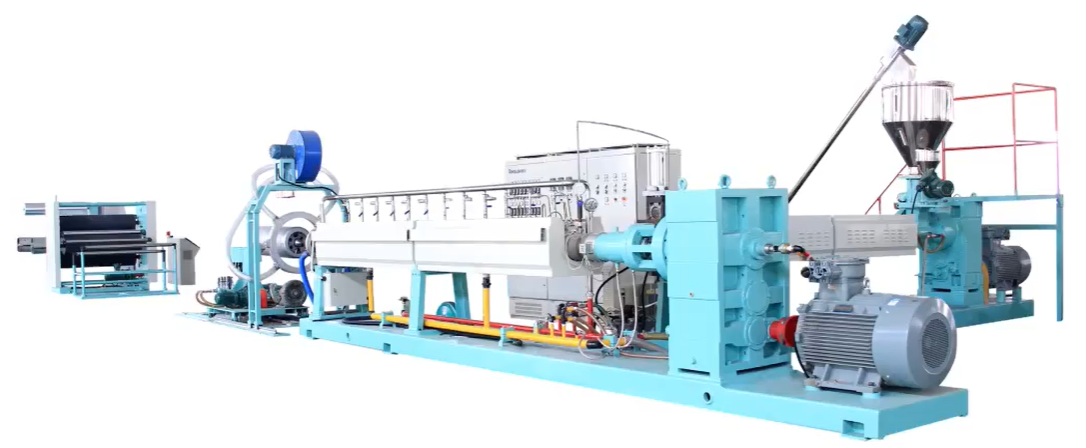

CO2 Multi-component PSP Foam Insulation Box, Preservation Box, Advertising (KT) Board Production Line 2d33a8f1-6950-4408-9def-9f6bedc84ae2 1744959708261

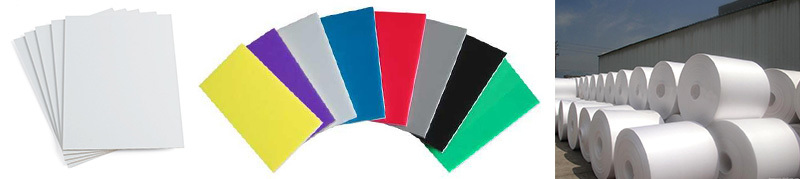

6c58621e-3cf1-49ef-891d-8445a21a3912

bdc00082-0f04-4ee7-ac86-91420b01c185(1)

Equipment parameter
Type		TJ-FPP65/90	TJ-FPP90/120	TJ-FPP100/130	TJ-FPP120/150	TJ-FPP75m2/150
Extruder		middle 65/90	middle 90/120	middle 100/130	middle 120/150	middle 75m2/150
Foaming ratio		10-20times	10-20times	10-20times	10-20times	10-20times
Product width	mm	640	640-1040	640-1040	640-1200	640-1200
Sectioning method		Single cutting		Double cutting
Product thickness	mm	1.0-2.0	1.0-3.5	1.0-3.5	2.0-5.0	2.0-5.0
Cooling method		Air-cooled, water-cooled
Production capacity (approximately)	kg/h	50-80	80-120	100-150	180-300	200-450
Installed capacity (approximately)	KW	120	150	180	260	300
Overall dimensions (length × width × height)(approximately)	m	20×7×2.8	22×8×2.8	23×9×3	25×10×3.2	30×12×4.5
Total weight (approximately)	T	10	12	15	18	22

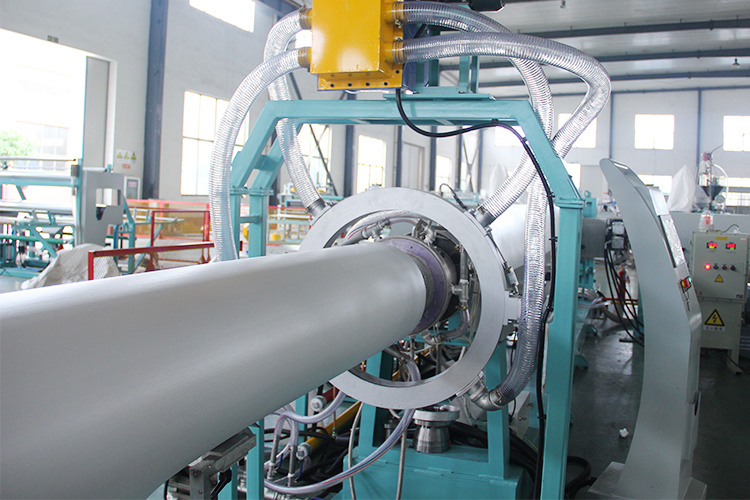

08fb46b5-8dbc-48b4-92e3-e66f66030060 d2ed8c2a-62fa-4049-ac45-a0f7927c3677 b8a07117-9d0f-4287-97f6-9ed4a8914a85

f18f5995-b67c-4f77-af15-1e3da96bacc2 (1) e1d976dd-b75a-4dc8-ac8b-1aba8dbca191
