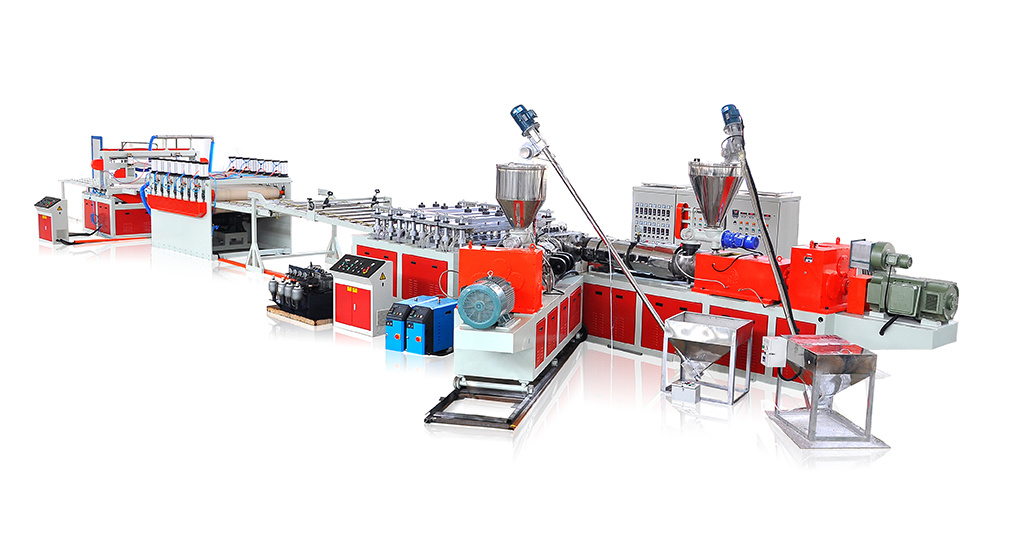

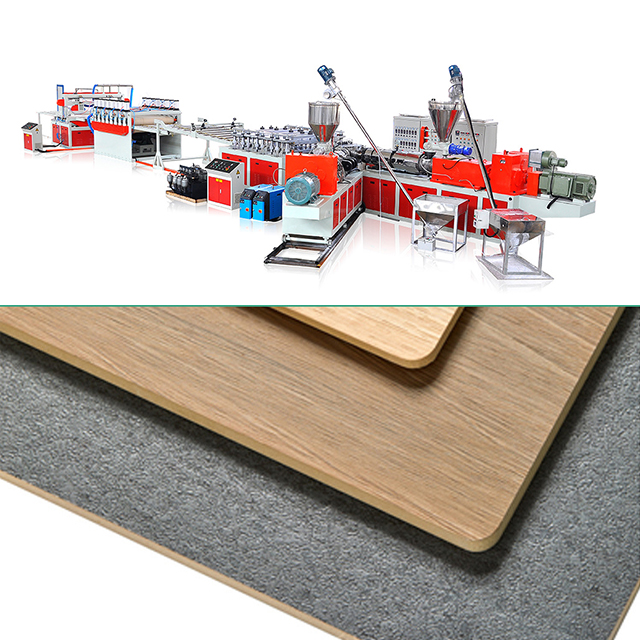

Carbon crystal ecological board production line (PVC foam board)

Performance features: ◆ The TJ-MSC series of special extrusion equipment for wood-plastic boards features stable performance, energy conservation and high efficiency. Advanced CAD design software, 38CrMoALA high-quality alloy steel material, with a bimetallic coating on the surface. Screw barrel with special mixing function and high plasticizing capacity design. ◆ The cooling of the screw core adopts an oil constant temperature system with automatic temperature control to enable the material to reach a good plasticizing state. A vacuum exhaust type screw cylinder is used to fully evaporate the moisture in the material and ensure the product quality. ◆ It is driven by a DC motor with stable output and large torque, and is equipped with ABB or British Continental speed regulators. The extrusion output is large and the efficiency is high.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Equipment parameters
Model		TJ-MSC80/156	TJ-MSC80/156-FH
Screw diameter	mm	φ80/156	φ80/156	middle 65/132
Number of screws	PCS	2	2	2
Rotational speed	r/min	1-37.7	1-37.7	1-39.1
Host power	KW	75	75	37
Heating power (approximately)	KW	36	36	24
Extrusion output	kg/h	150-350	250-450
Main technical parameters of the auxiliary machine
Model		BF915	BF1220
Product size	mm	915	1220
Traction height	mm	50-20	150
Traction force	kn	50	50
Traction speed	m/s	00-3	0-2.5
Total power of auxiliary machines	kw	35	40
Cooling water capacity	m3/h	9	12

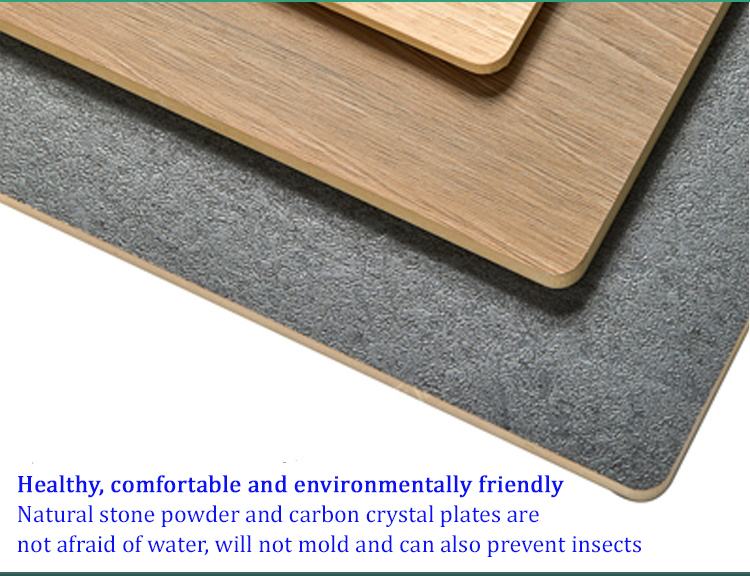

What is carbon crystal ecological board?

Carbon crystal plate is a modified and purified carbon particle heating product. It is made by modifying short-fiber carbon fibers and then subjecting them to physical ball milling treatment to form microcrystalline particles. Subsequently, far-infrared emitters are added.

Carbon crystal plates are generally made into heating elements through one or two encapsulation and lamination processes and special synthesis techniques. Compared with ordinary heating products, carbon crystal plates have significant improvements and enhancements in terms of heating uniformity, fire resistance, safety, weather resistance, electric-to-thermal conversion efficiency, and infrared emissivity.

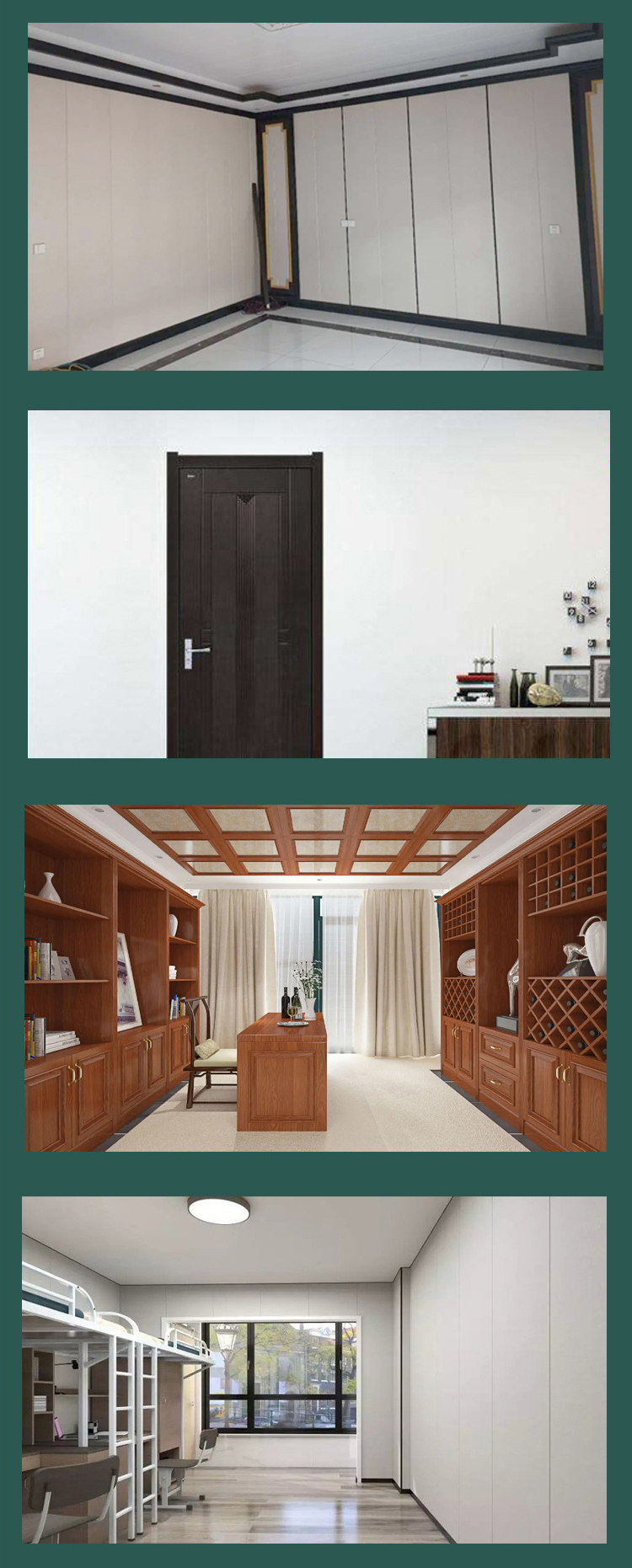

It is suitable for home decoration, offices, hotels, restaurants, etc. to be matched with decorative strips, and has the functions of waterproofing, moisture-proofing, heat insulation, flame retardancy, and environmental protection
