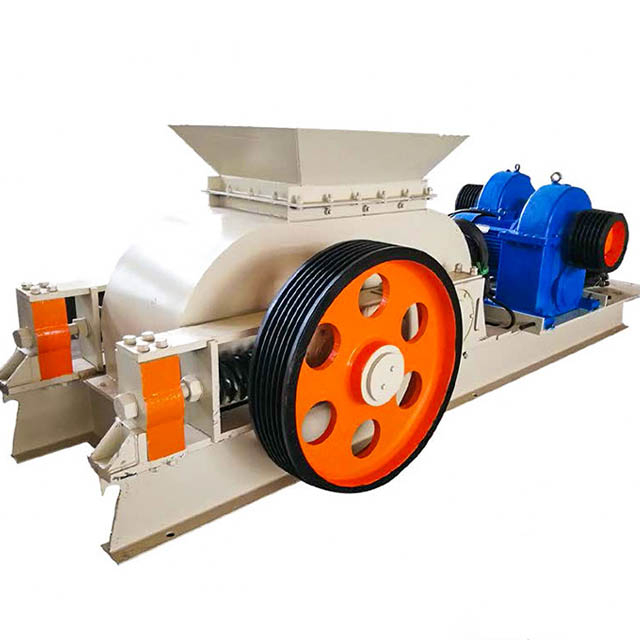

Counterroll Crusher

Counterroll crusher

Product introduction: Our roller crusher products are divided into six models according to the diameter and length of the roller, which can meet the feed particle size of 32mm-90mm, discharge particle size of 2mm-25mm, when the output of 2-60t production needs. It has the advantages of simple structure, compact and lightweight body, low price, reliable operation, convenient adjustment and crushing, less excessive crushing phenomenon during crushing, and can crush wet materials.

Processing capacity: 2-60t/h

Specification Model: 2PGφ400 x 250-2PGφ900 x 1200

Application: Used in metallurgy, building materials, mining, highway, mineral processing and other industries of small pieces of material crushing.

Introduction to roll crusher products

Roll crusher (roll crusher) is suitable for fine breaking of brittle bulk materials in cement, chemical industry, electric power, mining, metallurgy, building materials, refractory materials, coal mining and other industries. The discharge particle size is adjustable, and the material with compressive strength ≤160MPa can be broken. Especially in the coal industry, the use of this machine to break raw coal, as long as the iron removal, impurity removal, no need to remove dirt, it can be directly broken, broken materials, uniform particle size, low crushing rate, thus simplifying the coal preparation process, reducing investment and production costs.

Outstanding advantage

1, the roller crusher has the advantages of small volume, large crushing ratio, large crushing capacity, low noise, simple structure and convenient maintenance;

2, the crushing material particle size is uniform, over crushing rate is low, easy maintenance, overload protection sensitive, safe and reliable;

3, for the coal industry, the use of this machine to break raw coal, as long as the removal of iron, impurity, no need to remove dirt, it can be directly broken, broken materials, uniform particle size, low fragmentation;

4, simplify the process, reduce the investment and production costs.

Working principle

The counterroll crusher is a pair of cylindrical rolls mounted horizontally on a frame in parallel to each other. The front roller 1 and the back roller work opposite to each other, and the material is added to the feeding box and falls on the top of the rotating roller. Under the action of the friction on the surface of the roller, the material is pulled between the rotating rollers and crushed by the roller. The crushed material is pushed out by the roller and unloaded downward.

Technical parameter
