Counterroll Granulator

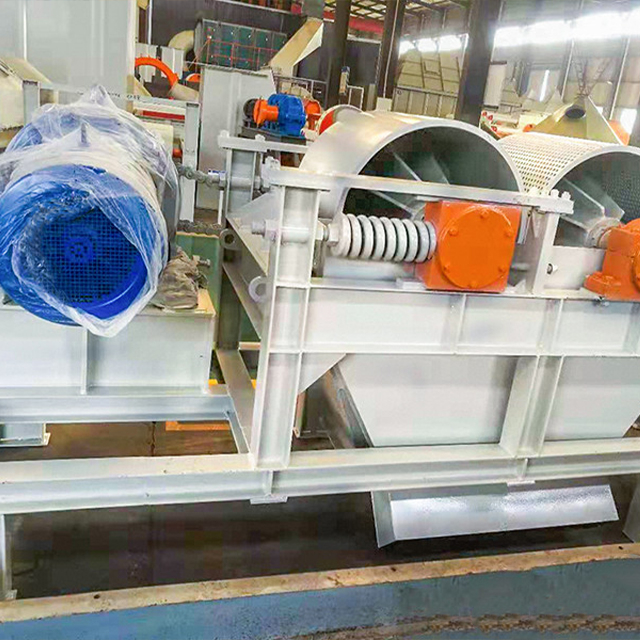

Counterroll granulator

The roller granulator is a special granulation equipment designed for the moisture content between 15%-25% and certain viscous materials. Extrusion hole is generally 8-16mm, 1-15 tons per hour granulation, power 7.5-30kW, can meet the granulation needs of a variety of materials.

Capacity: 1-15t/h

Roller diameter: GL400×350-GL1000×900

Applicable materials: sludge, bauxite, pulverized coal, limestone, coal gangue, clay, shale, etc

Application: Can be widely used in chemical, petrochemical, building materials, mining and metallurgy, environmental protection and other industries.

Introduction to roller granulator products

Roller granulator is a special molding equipment designed for powder or small particle materials by Henan Zhengkuang Machinery Co., LTD. It is also the key equipment of ceramite production line. It has uniform discharge, high yield, large output, compact structure and low maintenance cost, and can meet the requirements of sludge ceramics, shale ceramics, ash ceramics and other granulation processes.

Outstanding advantage

1, advanced technology, stable quality, according to the calcination characteristics of ceramics developed by the type of roll granulator, won the customer's praise.

2, high production efficiency, high ball formation rate.

3, uniform discharge, the roller granulator production of ceramic particles uniform size, can meet the ceramic rotary kiln for the size and shape of the ball requirements.

4, the overall operation of the equipment is stable, low noise, and the use of sealed cover receiving form, the work site is clean and tidy, reducing the labor intensity of workers.

Working principle

The motor drives the reducer to drive the fixed roller and the active roller to rotate synchronously through the chain drive, and the material falls into the roller pelletizing machine from the feed chute, passes through the double roller extrusion, pelletizing, and is discharged from the discharge port.

Technical parameter
