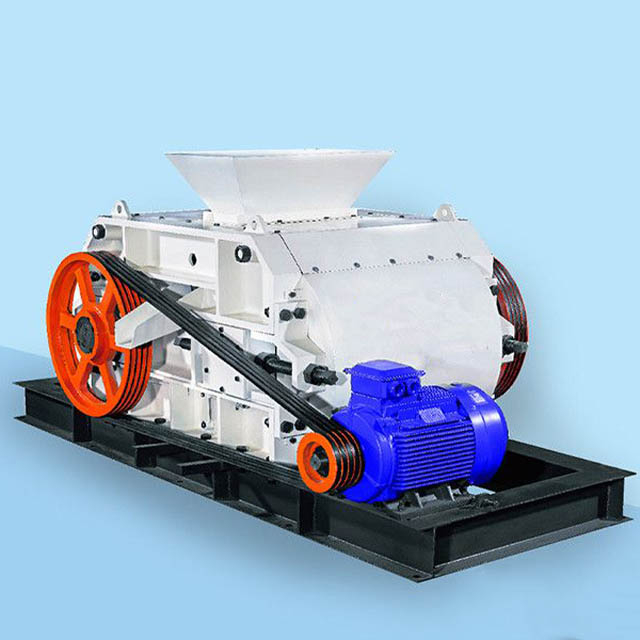

Counterroll Stone Removal Machine

Counterroll stone removal machine

In building materials, mining, ceramics and other industries, raw materials such as clay contain hard impurities such as stones, which is not conducive to the subsequent processing of raw materials, so it is necessary to remove large granular stones in the clay. A stone remover is a device that removes stones from clay.

Roller diameter: 600-1200mm

Production capacity: 5-25t/h

Application: Building materials, mining, ceramics and other industries

The roller stone removal machine product introduction

In building materials, mining, ceramics and other industries, raw materials such as clay contain hard impurities such as stones, which is not conducive to the subsequent processing of raw materials, so it is necessary to remove large granular stones in the clay. A stone remover is a device that removes stones from clay.

Outstanding advantage

1, simple structure, reliable performance, easy maintenance.

2. Efficient equipment that can separate stones from raw materials such as clay.

3, the two rollers of the roller stone removal machine have high speed, and the two rollers rotate at different speeds, so that the material can be used more smoothly and prevent the material from sticking to the roller.

4. There are long holes on the bearing seat, which can make the bearing seat move left and right, adjust the gap between the two rollers, and achieve the purpose of adjusting the particle size of the large particle stone.

Working principle

The material falls into the stone removal machine through the feed port on the cover, and through the gap between the single and the spiral roller, it is squeezed by the single and the spiral roller, and falls into the belt into the subsequent receiving device of the production line. Because of its high hardness, the stone can not be squeezed through, and will be discharged from the side along the groove on the spiral roll through the rotation of the spiral roll, so as to achieve the purpose of removing the stone in the clay. The clay stone removal machine has the characteristics of simple structure, reliable performance and convenient maintenance.

Technical parameter

Main technical parameters of roller type stone removal machine
