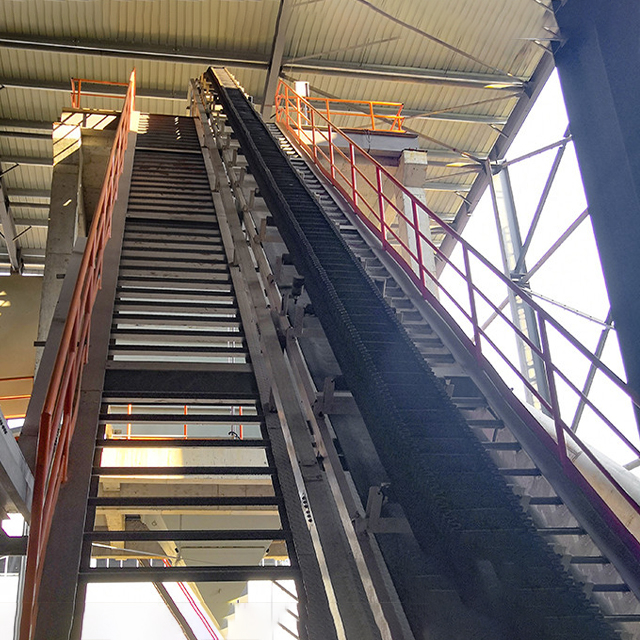

DJ High Angle Belt Conveyor

DJ high Angle belt conveyor

Product introduction: Our DJ high Angle belt conveyor can be divided into three series according to its transmission baseband width, each series has three products according to different gear height, which can meet the Angle between 30-90°, the particle size is less than 180mm material transportation, and the material is 84-360m³ per hour.

Throughput: 84-360m³/h

Specification Model: DJ500-DJ800

Inclination: 30-90°

Application: Widely used in metallurgy, coal, transportation, hydropower, chemical industry, port and other industries.

DJ high Angle belt conveyor product introduction

The conveyor with large Angle is a conveyor belt with corrugated fender and transverse partition, and its allowable transmission Angle can reach 90°, so it can save the floor area, save equipment investment and civil construction costs, and has higher comprehensive economic benefits, and is the ideal equipment for large Angle transmission and vertical lifting.

Outstanding advantage

1, simple structure, smooth operation, low noise, reliable operation, low energy consumption;

2. Easy connection. The horizontal conveying section of any length can be arranged in the head and tail of the machine to facilitate connection with other equipment;

3, large throughput. Because the conveyor belt has a corrugated flange, its loading end face increases, and the conveying capacity is larger than that of the general belt conveyor at the same inclination Angle.

4. The conveyor belt with corrugated flange and transverse partition is used, and the allowable conveyor inclination can reach 90°, saving the floor area, saving investment and civil construction costs.

Working principle

The conveyor belt of the large-angle belt conveyor plays the role of pulling and carrying, and the wavy guard, transverse partition and baseband of the conveyor belt form a "gate" shaped container for conveying materials. Driven by the motor, the conveyor belt drives the material up, so as to achieve a large Angle of transmission. Belt conveyor equipment is mainly composed of a head transmission device, a tail tensioning device and a conveyor belt. The traction member and the bearing member are endless tape, which is wrapped around the transmission drum and the reversing drum at both ends of the frame, and the tail is tensioned by a tensioning device, which is supported by a roller along the length of the belt to form a closed circulation loop. When the driving device drives the drive drum to rotate, the friction between the drive drum and the belt drives the belt to run. The material to be transported * is generally added to the tape by the guide trough, and the material is transported to the discharge device at the head for discharge along with the movement of the tape.

Technical parameter
