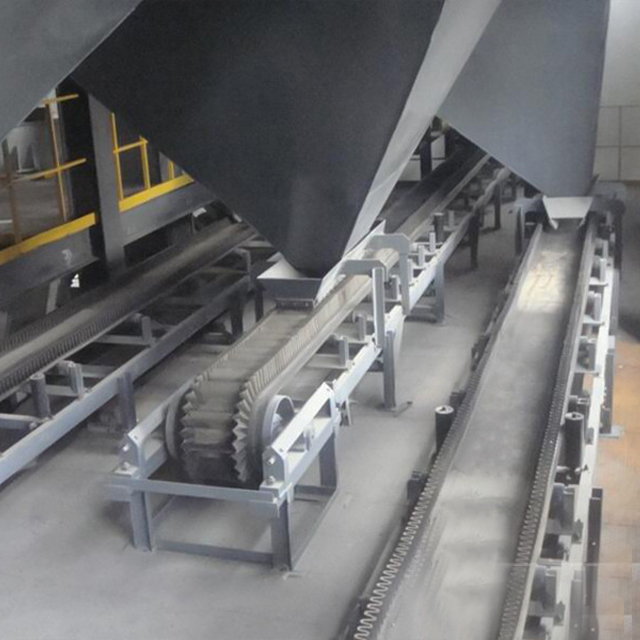

Dt-II Fixed Belt Conveyor

Dt-ii fixed belt conveyor

Product introduction: DT-II type fixed belt conveyor general series products have four models, the belt width between 500mm-1000mm, transport Angle between 10°-20°, can meet a variety of high, medium and low amount of material transportation needs.

Throughput: 69-1622m³/h

Specification Model: DTⅡ500-DTⅡ1000

Conveying length: 2-240m

Application: Widely used in metallurgy, coal, transportation, electricity, building materials, chemical industry, light industry, food and machinery and other industries.

Dt-ii fixed belt conveyor product introduction

Dt-ii type fixed belt conveyor general series products, transport packing density of 500-2500kg/m³ of all kinds of bulk materials and pieces, suitable for the ambient temperature of -20℃ ~ 40℃.

Outstanding advantage

1, reliable operation, can be used in important occasions that need continuous operation;

2, long transport distance, large volume, easy to achieve automation and centralized control;

2, the material and conveyor belt almost no relative movement, low running resistance, low power consumption;

3, the wear and breakage rate of the cargo is small, which is conducive to reducing production costs;

4, the transmission line is adaptable, flexible layout, can be installed in a small tunnel, can also be set up in the ground traffic chaos and dangerous areas above.

Working principle

Dt-ii type fixed belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly covered on them. The drum that drives the conveyor belt to rotate is called the driving drum, and the other drum that only changes the direction of the conveyor belt is called the reversing drum. The driving drum is driven by the motor through the reducer, and the conveyor belt is dragged by the friction between the driving drum and the conveyor belt. The driving roller is generally installed at the discharge end to increase traction and facilitate dragging. The material is fed by the feed end, falls on the rotating conveyor belt, and relies on the friction of the conveyor belt to drive the material from the discharge end.

Technical parameter
