Environmentally Friendly Fluoride-free CO2 Foam XPS Extrusion Insulation Sheet Production Line (flagship Model)

Share to:

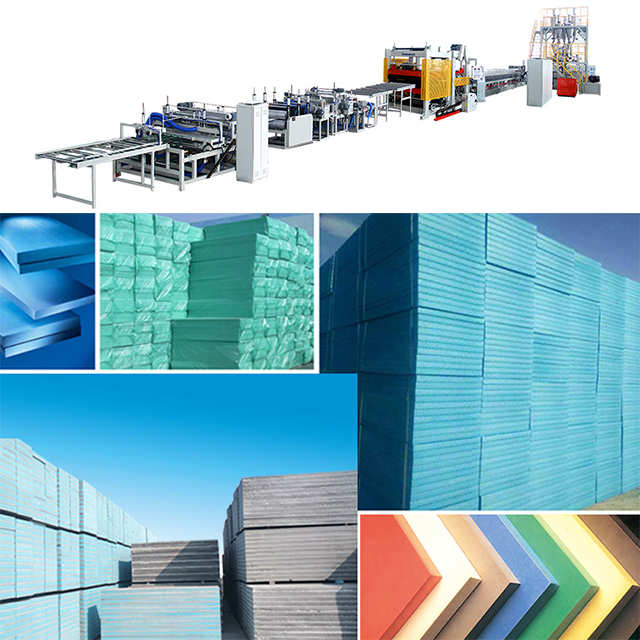

Environmentally Friendly Fluoride-free CO2 Foam XPS Extrusion Insulation Sheet Production Line (flagship Model)

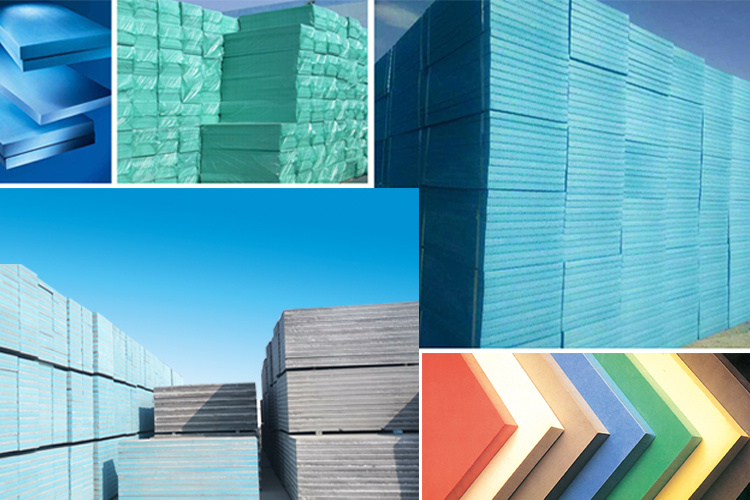

◆ Used for waterproof, heat preservation and heat insulation of walls and roofs of residential buildings, office buildings, industrial plants and other buildings
◆ Heat insulation board for cold storage, cold and waterproof
◆ For central air conditioning ventilation duct, heat insulation, heat preservation
◆ Anti-frost heave materials for concrete water transmission channels in water conservancy projects (such as South-to-North Water transfer project)
◆ Used for road, railway, airport, square and other roadbed projects of antifreeze insulation

Availability:

Quantity:



Inquire Add to Basket

Product Description

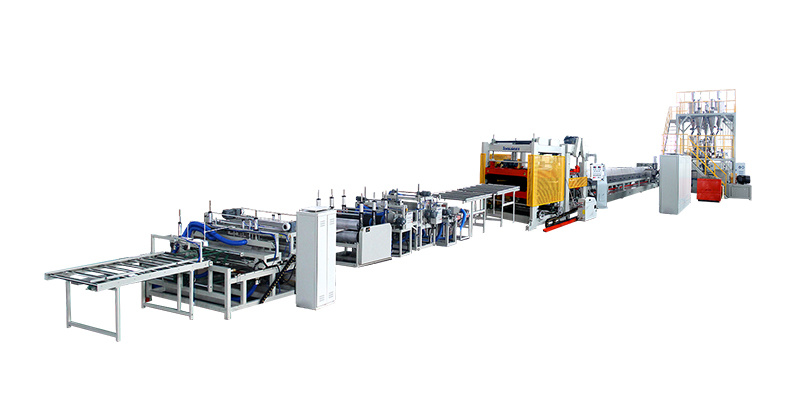

XPS extruded polystyrene foam insulation sheet production line is a new type of building energy-saving thermal insulation material with PS polystyrene particles as the main raw material, which is heated and melted by the extruder and injected with environmentally friendly physical blowing agent under high pressure.

32ace28f-5d0e-4bff-9e09-b91e1dd33e61

94401de9-3baf-439e-8df3-972bd9207f7d

Equipment parameter

Type TJ-XPS		85P/250		95P/250		95P/300		110P/300		120P/300
Extruder		085 double	0250	095 double	0250	095 double	0300	0110 double	0300	0120 double	0300
Product thickness	mm	20-150		30-150		30-150		30-150		30-150
Product width (optional)	mm	600/900/1220				600/900/1220
Production capacity (approx.)	KG/h	600-800		700-900		800-1000		1000-1300		1000-1600
Installed capacity (approx)	KW	550		650		700		750		800
Overall dimensions (approx.)	m	80×15×5		90×15×5		90×15×5		100×16×6		100×16×6
Machine weight (approx.)	T	55		60		70		75		78

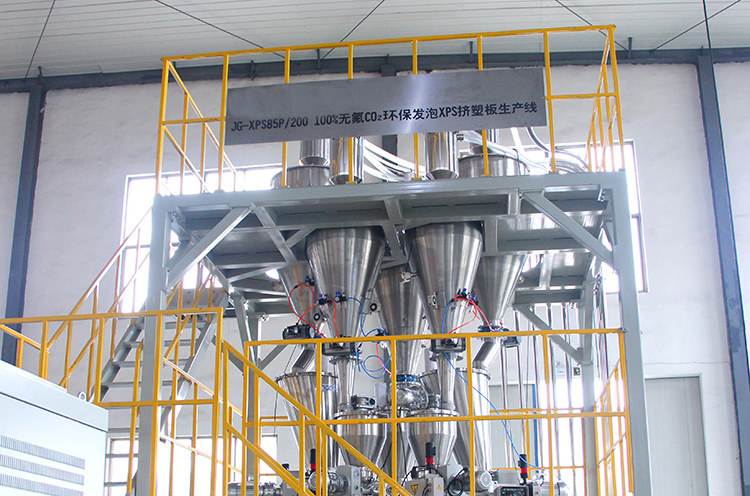

Multi-component weightless blending system

Automatic computer control of various raw material ratio feeding system adopts vacuum feeding to ensure the stable delivery of raw materials.

多组份失重式配混系统

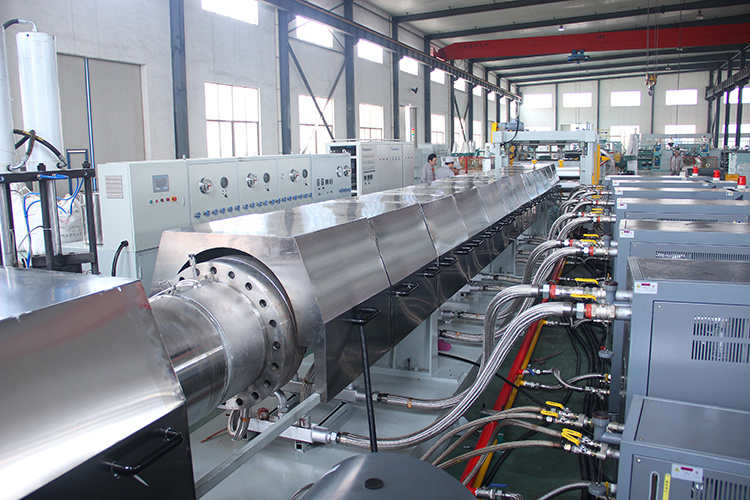

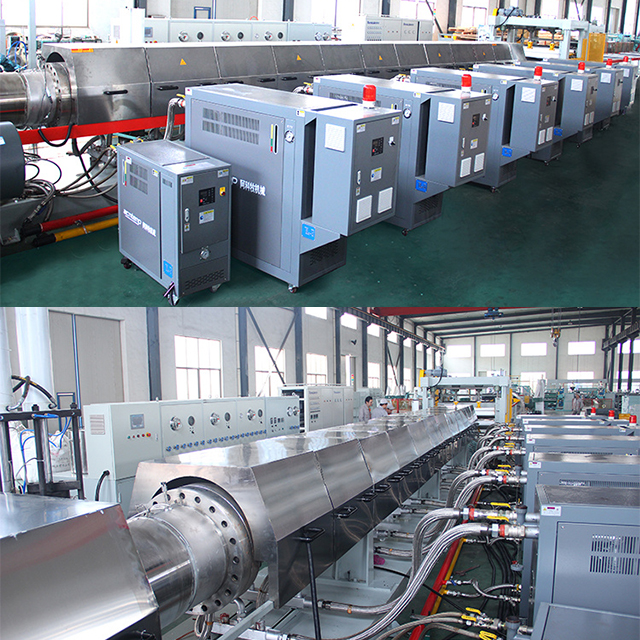

Energy-saving servo extrusion system

Adopt permanent magnet synchronous servo drive motor, screw building block structure, according to the material processing technology combined use.

节能伺服挤出系统

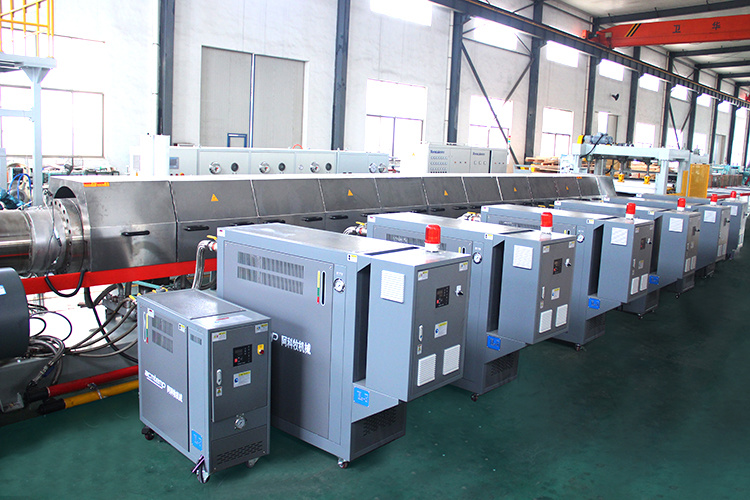

Cooling, constant temperature system

Precise proportional control of the cooling system to ensure good cooling results

冷却、恒温系统

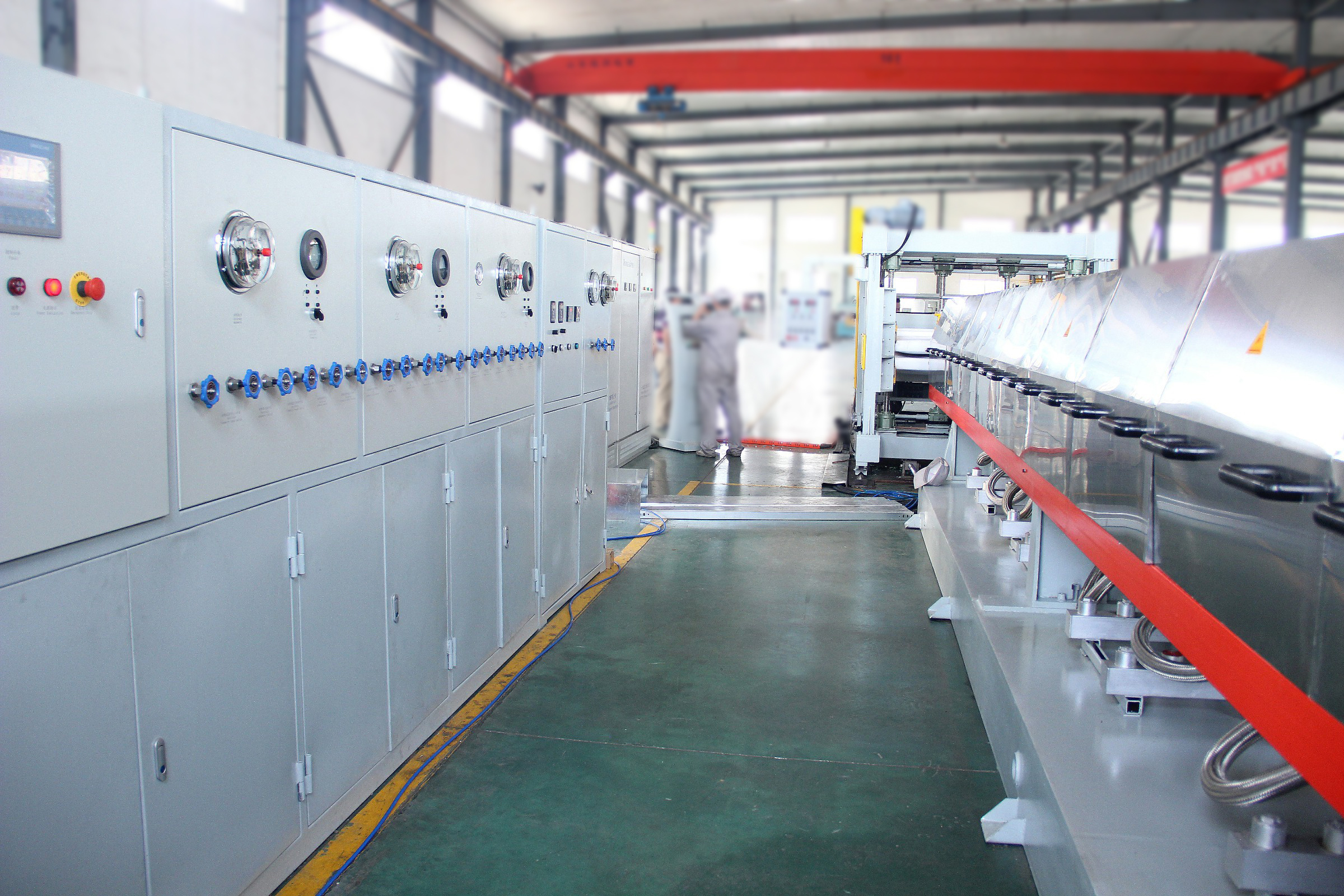

Supercritical CO2 blowing agent injection system

Adopt full import flow control system, unique three-stage booster injection system, to maintain the stability of blowing agent flow.

超临界CO2发泡剂注入系统

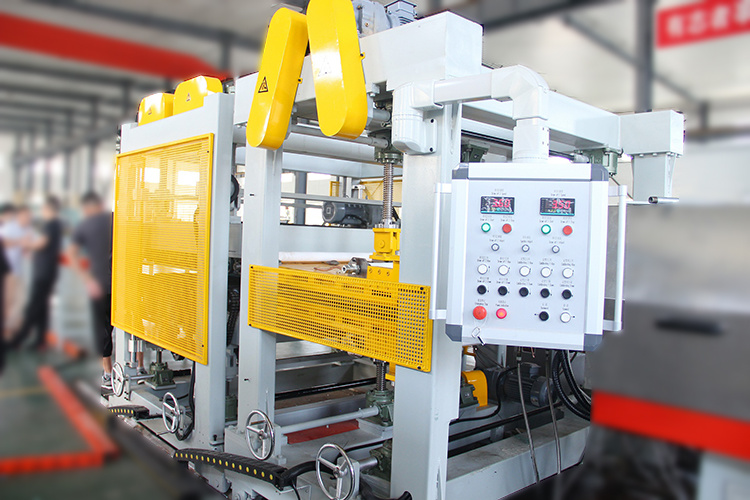

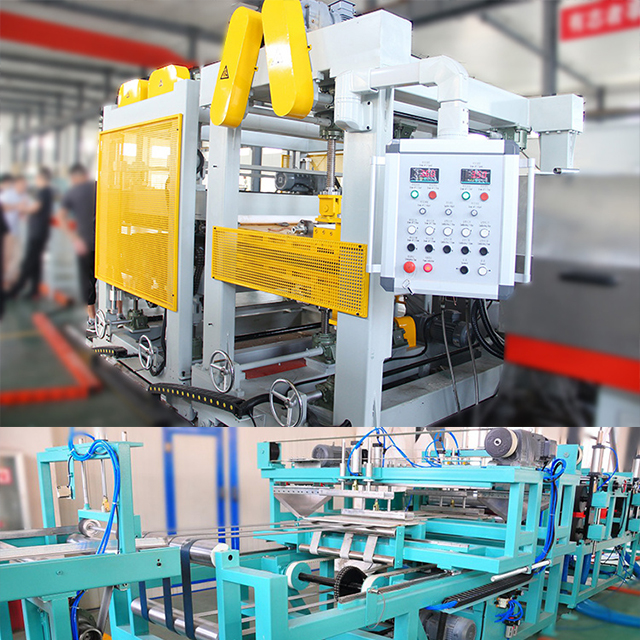

Extrusion mold, sizing system

Using long sector area type head to build extrusion, forming system bidirectional electric adjustable device, proportional control of low resistance system material, double-sided shaping.

挤出模具、定径系统

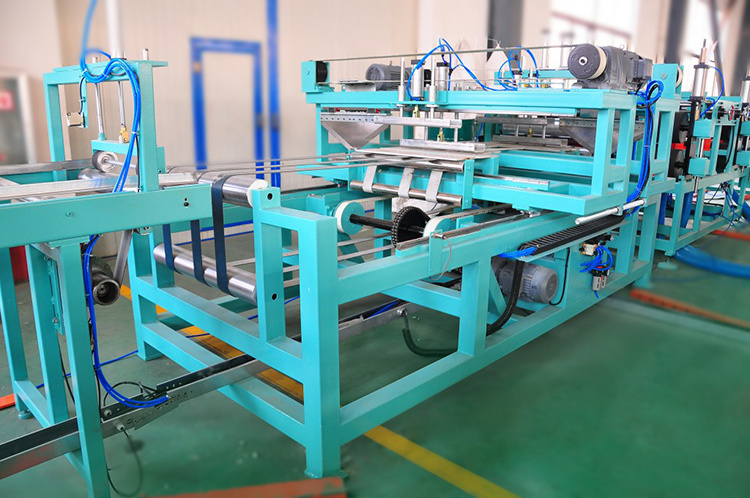

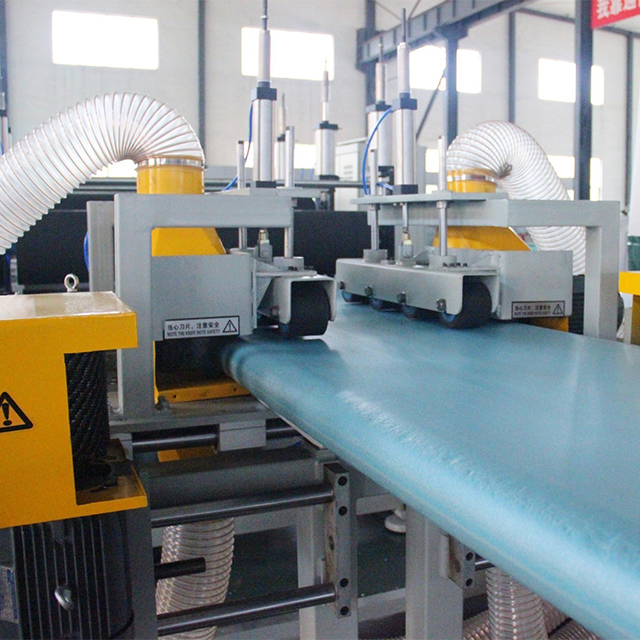

Conveying and cutting system

Automatic fixed length cutting, trimming, vertical and horizontal edge forming, automatic stacking, multi-point monitoring, automatic alarm, automatic packaging system, no dust.

输送、切割系统
