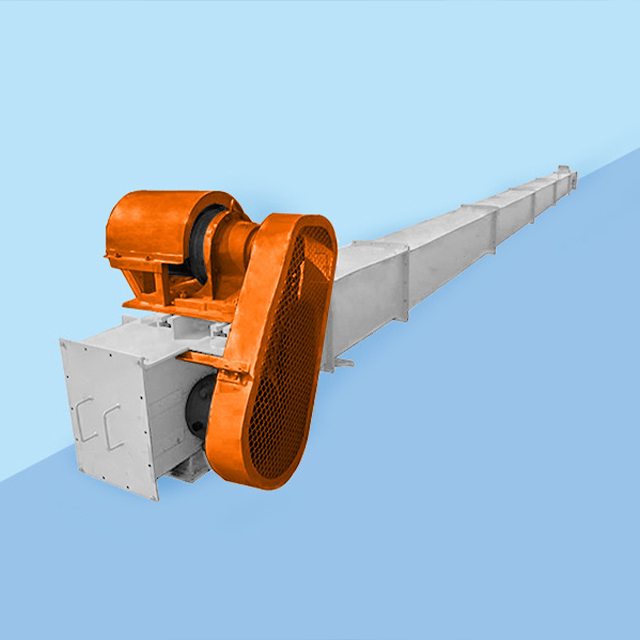

FU Buried Scraper Conveyor

FU buried scraper conveyor

Product introduction: The company's FU type buried scraper conveyor (chain conveyor) products are divided into six models according to the different width of the conveyor trough, suitable for conveying the particle size of 4mm-25mm and the humidity is not more than 5% of the material, to meet a variety of production needs.

Throughput: 6-255m³/h

Specification Model: FU200-FU500

Transmission slope: ≤15°

Application: Widely used in metallurgy, coal, transportation, electric power, building materials, chemical industry, machinery and other industries.

FU buried scraper conveyor product introduction

FU type buried scraper conveyor (chain conveyor) is a continuous conveying equipment with roller plate chain as the traction member. This type of equipment has the characteristics of compact structure, good sealing, reasonable layout, easy use and maintenance, etc. It is mainly used for conveying powder, granular and small block materials with strong grinding and dressing at horizontal or small Angle.

Outstanding advantage

1, because the buried scraper conveyor is driven by the internal friction of the material to move the material, therefore, the operation resistance is small, low energy consumption, compared with the screw conveyor, energy saving about 50%;

2. The conveying chain is made of sleeve roller plate chain structure made of high-strength wear-resistant alloy, and is treated by special process, with high strength, small friction coefficient, long service life and other characteristics;

3, a wide range of transport, can carry out large capacity, long distance transport temperature below 150℃ of a variety of powder, granular, block materials;

4, the whole conveying process is carried out in a closed space, sealed safe and reliable, especially suitable for conveying volatile, corrosive and other special media.

Working principle

The working principle of FU type buried scraper conveyor is that the transmission device drives the drive sprocket to rotate, and the conveyor chain with the scraper engages with the drive sprocket and moves accordingly. When the material is added from the feed port, the material is subjected to the same direction of the movement of the conveyor chain in the groove, so that the internal friction force and internal pressure between the materials increase, when the friction force is greater than the friction force between the material and the groove wall, the material moves forward under the conveyor chain, and the increased internal pressure ensures the stable state between the material layers, so that it forms an overall continuous flow. When the ratio of the height of the material layer to the width of the groove meets the specified conditions, the material flow is stable, the material speed is about equal to the chain speed, and the material can be continuously and stably transported and unloaded from the discharge port.

Technical parameter
