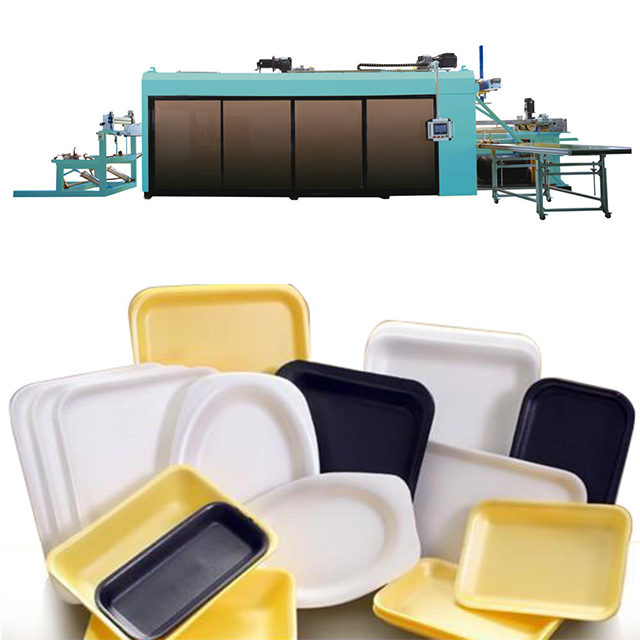

Fully Automatic Servo Multi-station PET Vacuum Forming Machine

Share to:

Fully Automatic Servo Multi-station PET Vacuum Forming Machine

The whole machine is fully intelligently controlled by PLC and computer, featuring integrated intelligent control functions such as flexible parameter adjustment, data operation monitoring, one-click storage of production parameters, and closed-loop feedback of alarms. Full servo drive control, featuring low noise, low energy consumption, high output, green energy conservation, high-quality and efficient plasticizing, etc. Optional intelligent robot operation is available, fully supporting 5G remote control technology, truly achieving unmanned operation in chemical plant workshops.

Availability:

Quantity:



Inquire Add to Basket

Product Description

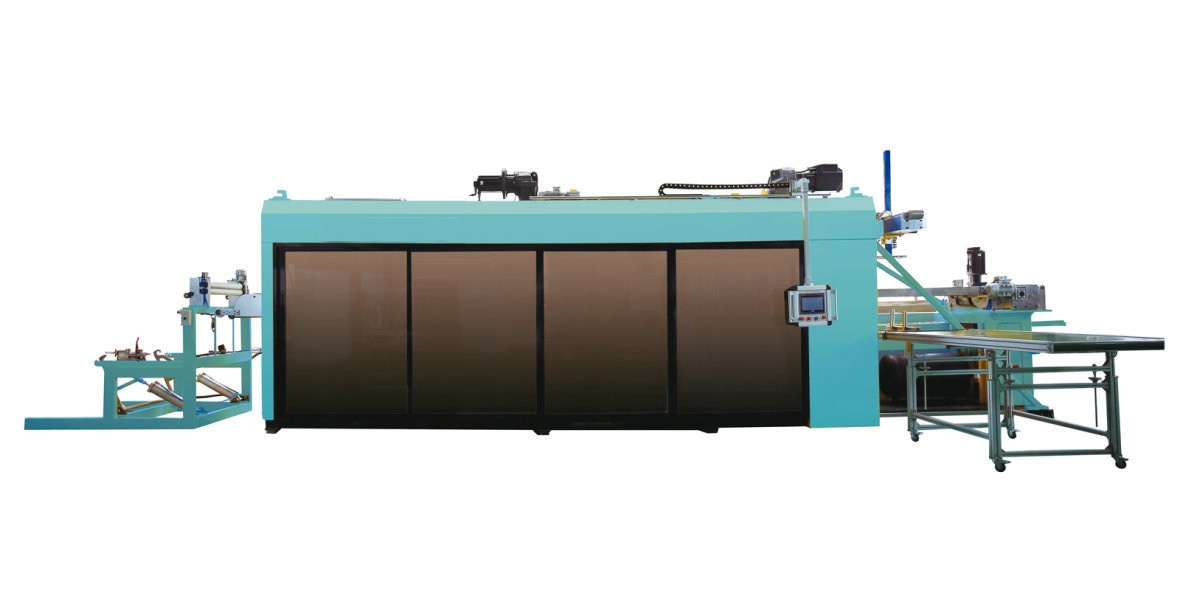

Fully automatic servo multi-station PET vacuum forming machine

1ef90941-1d22-421f-b5c4-0026e67fdccb.jpg_1180xaf 1420ecea-f684-4e73-b669-5e353f200a25

Equipment parameters
Machine model	TJ-RCX500A/TJ-RCX5 00B	TJ-RCX550A/TJ-RCX5 50B	TJ-RCX750A/TJ-RCX7 50B	TJ-RCX850A/TJ-RCX8 50B	TJ-RCX800A/TJ-RCX8 00B
External dimensions	650cm×1 30cm×200cm	950cm×160cm×240cm	1000cm×160cm×260 cm	1100cm×180cm×260 cm	1100cmx180cmx260 cm
Maximum forming area	570mm×450mm	530mm×500mm	780mm×700mm	960mm×800mm	710mm×800mm
Maximum forming width	610mm	660mm	810mm	980mm	710mm
Maximum forming depth	80mm	150mm	150mm	150mm	150mm
Sheet thickness	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm	0.12-2.0mm
Punching and cutting form	Die transfer punching
Forming workstation	Three consecutive workstations, four consecutive workstations
Mold configuration	Ordinary positive and negative pressure forming molds for vacuum forming aluminum film
Whole machine power	60Kw	75Kw	120Kw	205Kw	115Kw
Working air pressure	0.6-0.8mpa	0.8mpa	0.8mpa	0.8mpa	08mpa
Production speed	15-40 Module/minute
Machine weight (approximately)	3	7.5	19	22	15

4229cd86-038d-4fea-bc2f-e87994e1f786 cfa16667-d9c9-4ad5-b5a5-825326949bbb
