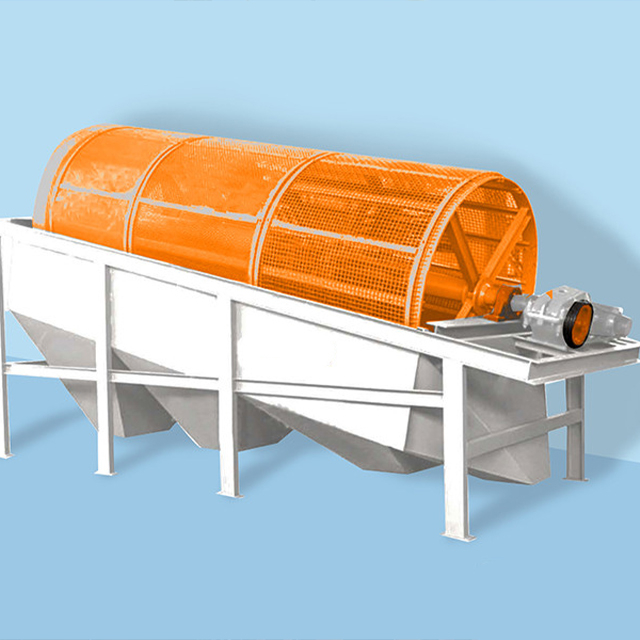

GS series drum screen
GS drum screen is a special equipment for material classification and screening in our company, the specification range is GS10 x 30-GS25 x 110, the drum diameter range is 1-2.5m, the length range is 3-11m, the output is 1-70t/h.
Output: 1-70t/h
Model: GS10 X 30 - GS25 X 110
Application: ceramics, mining, building materials, transportation, energy, chemical and other industries.
GS series roller screen product introduction
GS drum screen is a kind of mineral processing equipment for grading according to the particle size of the material, generally used for grading and screening of medium and fine grained materials, with stable operation, low energy consumption, easy maintenance and simple process layout, flexible and other characteristics, can be widely used in mining, building materials, transportation, energy, chemical and other industries product classification, especially suitable for pottery grading and screening.
Outstanding advantage
The roller screen has the advantages of strong processing capacity, high screening efficiency, reasonable technical parameters, high structural strength, reliable operation, low noise, simple operation and convenient maintenance.
Working principle
After the broken stone enters the drum, on the one hand, it is screened with the rotation of the drum, on the other hand, the stone with large particle size flows forward along the slope of the drum, and is gradually screened out through the screen of different mesh. The stone material with the corresponding particle size falls into the respective funnel after sifting out, and then is manually transported out or sent to the finished product pile by artefact.
Technical parameter
specification | Drum size (mm) | Yield (t/h) | Speed (r/min) | Electric machine | Overall dimensions (mm) | ||
Diameter | length | TYPE | Power (kW) | ||||
GS10×30 | φ1000 | 3000 | 1~3 | 22 | YE2-132M1-6 | 4 | 3500×1400×2000 |
GS12×45 | φ1200 | 4500 | 3~5 | 16.6 | YE2-132M2-6 | 5.5 | 5700×1600×2400 |
GS15×50 | φ1500 | 5000 | 5~7 | 16 | YE2-160L-6 | 11 | 6860×1900×2810 |
GS15×65 | φ1500 | 6500 | 16~24 | 9.98 | YE2-160L-6 | 11 | 8360×1900×2810 |
GS16×60 | φ1600 | 6000 | 16~24 | 10 | YE2-180L-6 | 15 | 7300×2000×3000 |
GS18×65 | φ1800 | 6500 | 50~70 | 13.6 | YE2-200L1-6 | 18.5 | 9000×2200×3200 |
GS20×70 | φ2000 | 7000 | 50~70 | 11.6 | YE2-225M-6 | 30 | 10234×2430×5800 |
GS25×110 | φ2500 | 11000 | 50~70 | 16 | YVFE2-280M-6 | 55 | 13830×3000×3854 |
