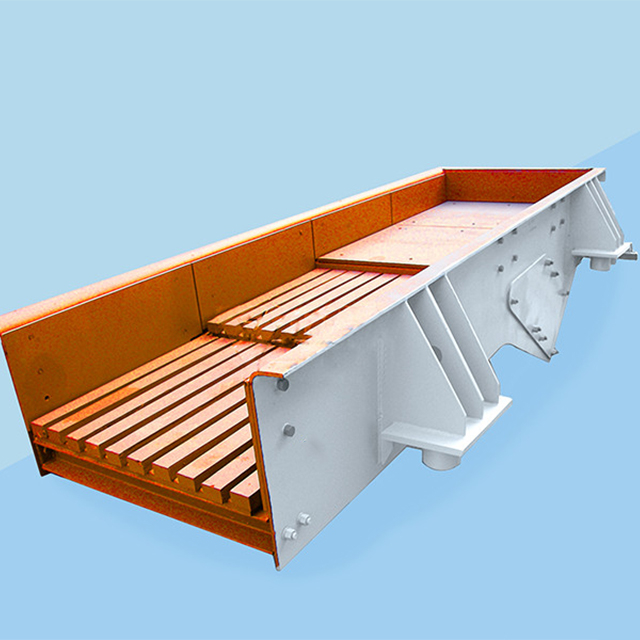

GZT bar vibration feeder
Our GZT series rod vibration feeder is designed and manufactured by absorbing Swedish and Finnish technology, and uses the vibration motor produced by introducing Japanese technology as the excitation source, which is used for uniform feeding of large materials before coarse crushing crusher. At the same time, due to the role of the bar screen surface, it can remove the soil and other fine crushed materials to achieve pre-screening function, which can improve the coarse crushing capacity.
Feed rate: 30-600t/h
Model: GZT-0724-GZT-1560
Motor power: 2× 1.5-2 ×13kW
Application: construction, metallurgy, chemical industry, etc
GZT bar vibration feeder product introduction
GZT series rod type vibration feeder is a new type of feeder. In the production process, it can evenly, regularly and continuously feed the bulk and granular materials from the storage bin to the receiving device. In the sand and gravel production line, it can be continuously and evenly fed for the crushing machinery and coarser the materials. Widely used in metallurgy, mining, electric power, building materials, chemical industry, machinery and other industries crushing, screening joint operations.
Outstanding advantage
1, This series of products have a wide variety, and can be designed separately by users, specially manufactured.
2, All types of feeder, can easily implement manual or automatic feed control.
3, Stable vibration, reliable work, long life.
4, Can adjust the exciting force, can change and control the flow at any time, easy to adjust and stable.
5, Simple structure, reliable operation, easy adjustment and installation.
6, Vibration motor for excitation source, low noise, small power consumption, good adjustment performance, no punching phenomenon light weight, small size, easy maintenance, when the closed structure body can prevent dust pollution.
Working principle
GZT series vibration feeder is mainly composed of a pair of vibration motors with the same performance parameters as the excitation source, when the two vibration motors operate in reverse at the same angular speed, the inertial force generated by the eccentric block is repeatedly superimposed or offset in a specific phase, resulting in a huge resultant force to stimulate the force, so that the body makes a forced vibration on the support spring, and this vibration is the power. Drive the material on the tank body for sliding and throwing motion, so that the material continues to move forward to achieve the purpose of feeding, when the material through the sieve bar on the tank body, the smaller material can fall through the sieve bar gap, do not go through the next crushing process, to the effect of screening.
Technical parameter
Type specification | Feed size (mm) | Processing capacity (t/h) | Motor power (kW) | Inclination (°) | Weight (kg) |
GZT-0724 | 450 | 30~80 | 2×1.5 | 10 | 2936 |
GZT-0932 | 560 | 80~150 | 2×2.4 | 10 | 3359 |
GZT-0940 | 560 | 80~180 | 2×3.2 | 10 | 3608 |
GZT-1148 | 600 | 150~300 | 2×5.5 | 10 | 4808 |
GZT-1256 | 800 | 180~400 | 2×7.5 | 10 | 5994 |
GZT-1560 | 1000 | 400~600 | 2×13 | 10 | 9896 |
