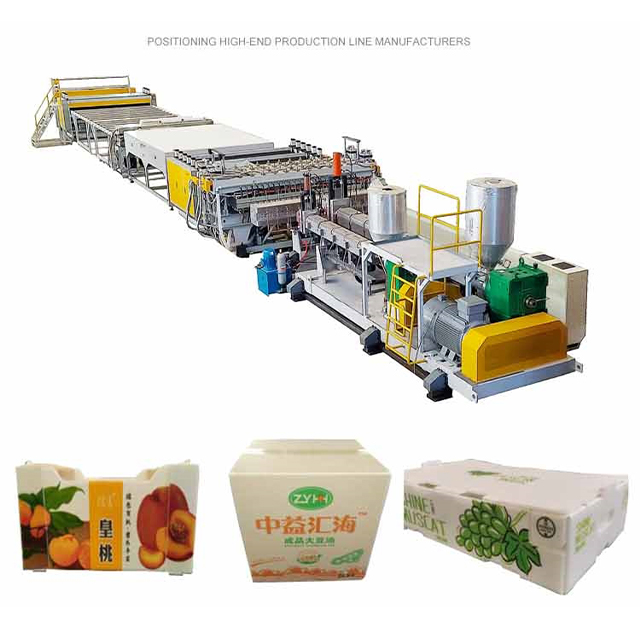

Hollow board production machinery

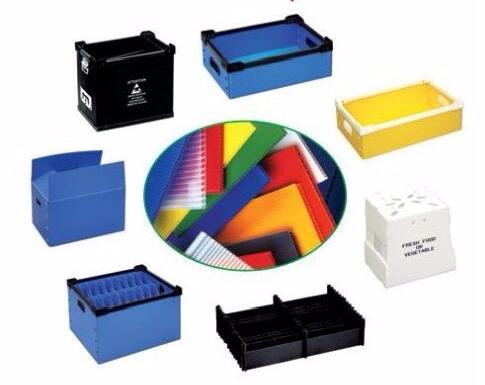

The hollow board production line manufactured by our company is currently the world's leading model. This production line has high output and excellent automatic control. It can produce various ordinary hollow boards, conductive hollow boards, as well as various packaging boxes, turnover boxes, partition plates, box lining plates, luggage lining plates, sunshades, etc. of hollow boards. The materials used are PE and PP. The width ranges from 1200mm to 2700mm, and the thickness is from 2mm to 8mm. The products are widely applied in electronic and light industry, food machinery, post and telecommunications, aquatic appliances, advertising decoration, building materials, etc.
The configuration list for the plastic sheet extrusion production line includes
Single screw extruder
Non-stop hydraulic screen changer Mold
Forming table
First traction Oven
Cooling section
Second traction
Shearing section Electrical control cabinet
Stacking platform
Spiral feeder machine

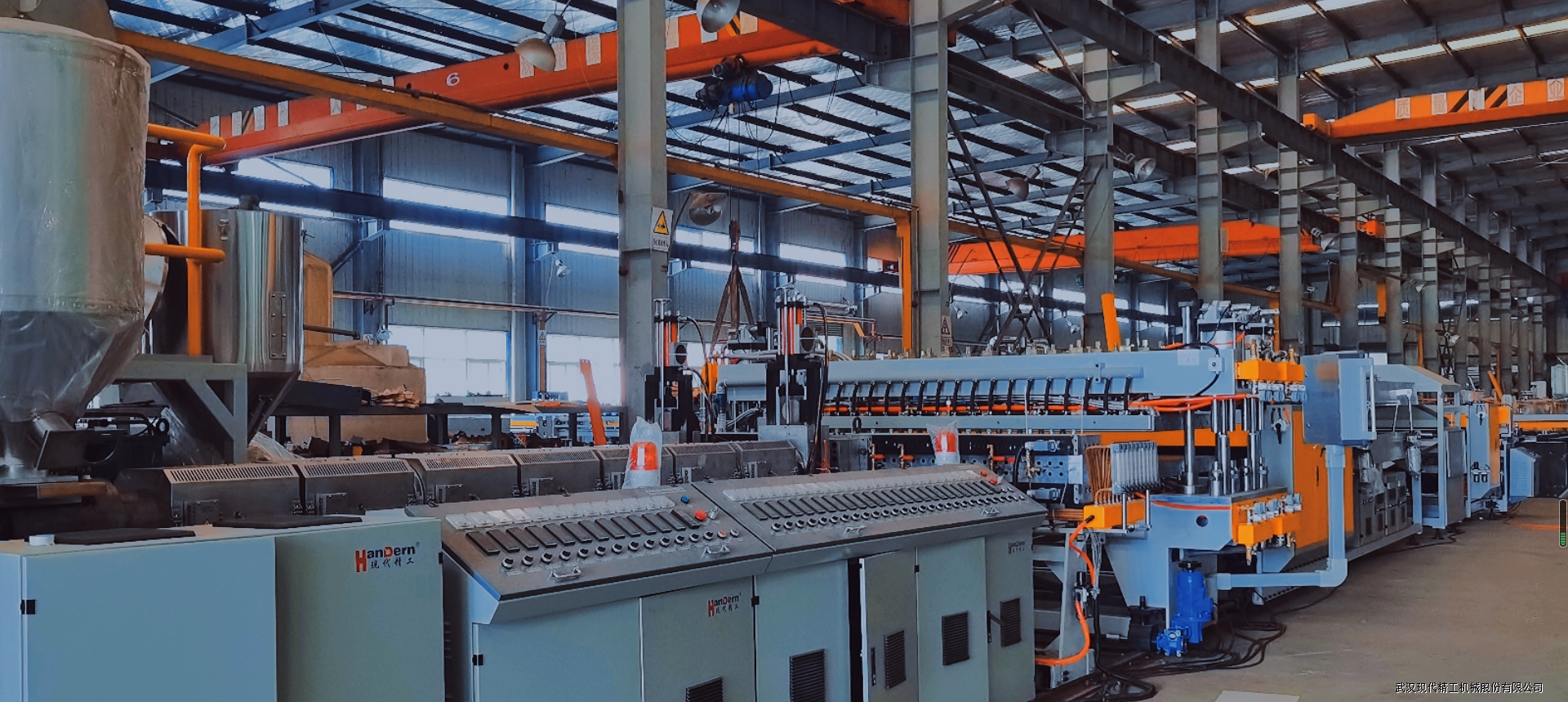

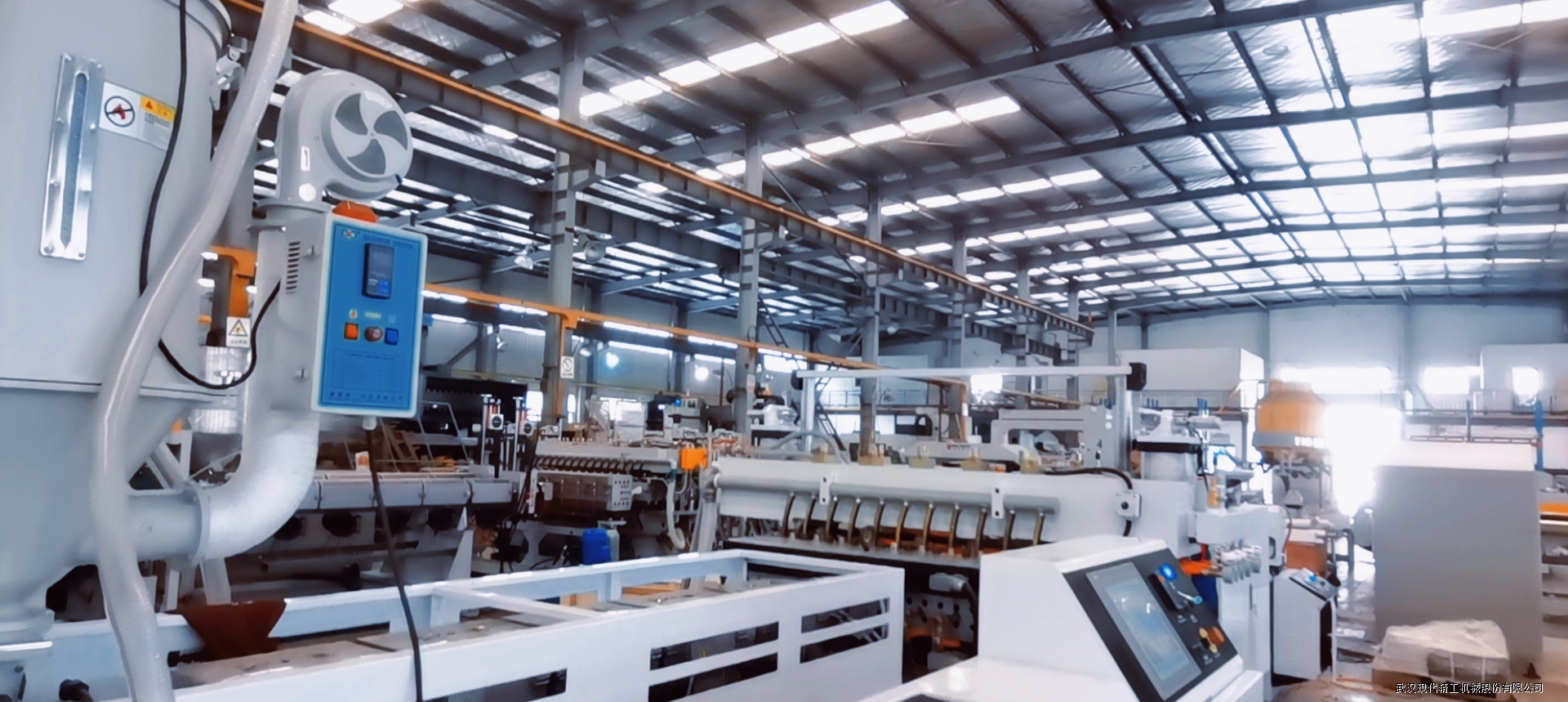

The entire set of hollow board production line manufactured by our company features all key components such as feeding system, extruder, molds, shaping machine, tensioning and cutting equipment, which are all designed and manufactured by our company. This ensures the stability of the mechanical product quality.
Extruder: The unique design of the screw, the outstanding temperature control system, ensure stable plasticizing performance and extrusion efficiency. The outstanding feature of our company is high energy efficiency. For the same output, the motor power is saved by 20%.
Mold: Superior alloy mold lip and adjustable flow-blocking block, providing uniform pressure

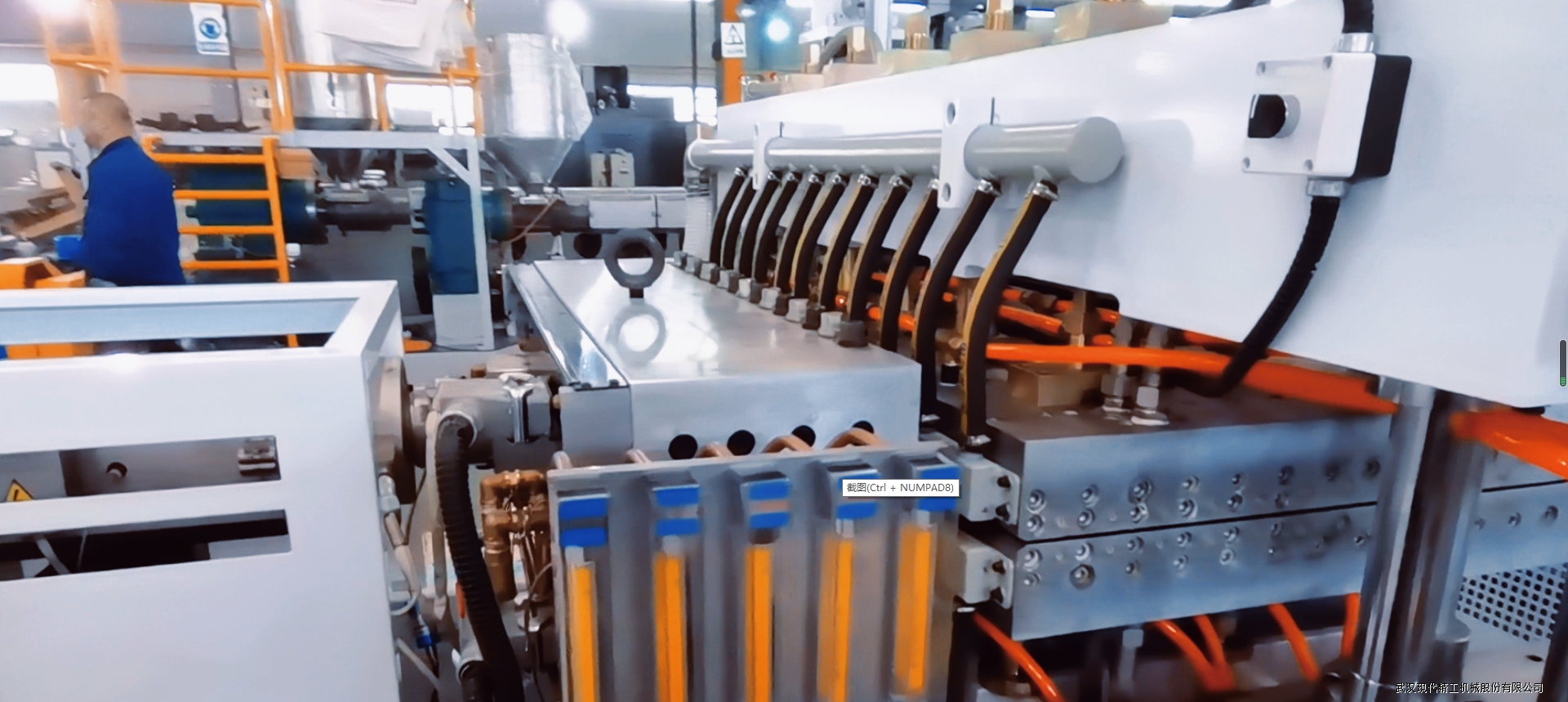

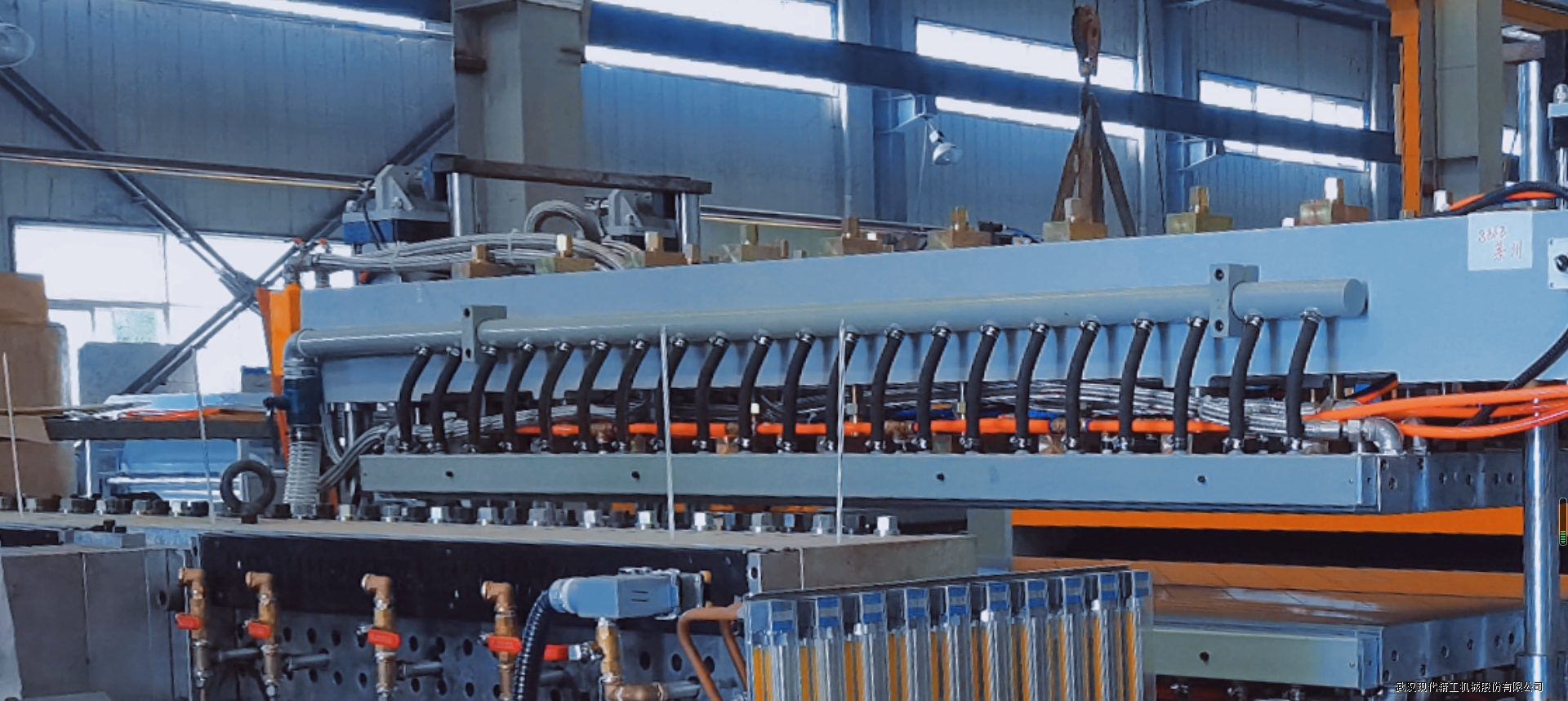

Vacuum calibrator: The array interlacing of the thermal convection system ensures calibration. The calibration of the vacuum system. The vacuum system consists of two separate subsystems, equipped with a large number of closed-loop vacuum lines.
Electrical control system: Utilizes the microprocessor unit PLC to control parameters and has optimized the operation characteristics.
The production solutions include the following main advantages:
The PP hollow plastic building formwork has high strength, good impact resistance, wear resistance, and a long service life. It can be reused up to 30 times.
2. The PP hollow plastic building formwork has excellent processing properties. It can be sawed, planed, and nailed, and can be used concurrently with wooden formwork.
3. The two surfaces (smooth surface or patterned surface) of the PP hollow plastic building formwork have different functions. For example, when using the smooth surface, after the concrete pouring is completed and the formwork is removed, the surface of the compacted concrete will be flat and smooth, meeting the requirements for decoration and clean appearance. No additional plastering is needed, which saves materials and time, reduces cleaning and maintenance costs, and ensures stable concrete quality and shortens the construction period. It is suitable for use in damp environments such as basement projects, roads, railways, and bridge piers; if using the patterned surface, it will be combined with the plastering layer. When used on bridge piers, the patterned surface can meet the requirements for decoration and clean appearance, and due to the light diffusion reflection effect of the patterned surface, it does not have strong light reflection that affects the driver's vision, thus providing protection.
4. This new type of hollow plastic building formwork is lightweight, easy to install and dismantle, has low labor intensity during transportation and operation, high construction efficiency, does not absorb moisture, is corrosion-resistant, resistant to acids and alkalis, and has a smooth and glossy surface. No need to apply release agent.
5. The waste boards and leftover materials from this new type of hollow plastic building formwork can be recycled in an environmentally friendly manner, which not only saves costs but also reduces pollution.
6. The overall cost of using this new type of hollow plastic building formwork is more than 30% lower than that of traditional wooden formwork.
7. High efficiency (Production efficiency can be negotiated in a contract. The full payment will be made upon achieving the desired results.)
8. Production (The controllability of product thickness and quality. The same equipment and the same mold can produce products ranging from 2 to 6 millimeters in thickness.)
9. Reliability and stability (There are over 300 Wuhan Modern Precision Engineering's hollow board production lines in operation)
10. Strong adaptability (Our equipment can directly produce products using recycled materials, scraps, and crushed materials, saving production costs by 30%)
The entire set of hollow board production line manufactured by our company features all key components such as feeding equipment, extrusion machine, molds, shaping machine, tensioning and cutting devices, which are all designed and manufactured by our company. This ensures the stability of the mechanical product quality.
The entire set of hollow board production line manufactured by our company features all key components such as feeding equipment, extrusion machine, molds, shaping machine, tensioning and cutting devices, which are all designed and manufactured by our company.Modern Precision Engineering can also conduct tests on the performance of raw materials and products according to customer requirements. This ensures the stability of the mechanical product quality.
Modern Prec This ensures that after customers purchase our hollow board ision Engineering can also conduct tests on the performance of raw materials and products according to customer requirements.production line, they can directly start production and sales, achieving a model where profits are realized upon leaving the factory, thus saving customers' valuable time.
Main Configuration:
Extruder: The unique design of the screw, the outstanding temperature control system, ensure stable plasticizing performance and extrusion efficiency. The outstanding feature of our company is high energy efficiency. For the same output, the motor power is saved by 20%.
Mold: Superior alloy mold lip and adjustable flow-blocking blocks, providing uniform pressure
This ensures that after customers purchase our hollow board production line, they can directly start production and sales, achieving a model where profits are realized upon leaving the factory, thus saving customers' valuable time.
Vacuum calibrator: Array interlacing of the thermal convection system, ensuring calibration.Main Configuration:
Extruder: The unique design of the screw, the outstanding temperature control system, ensure stable plasticizing performance and extrusion efficiency. The outstanding feature of our company is high energy efficiency. For the same output, the motor power is saved by 20%.
Calibration of the vacuum system.Mold: Superior alloy mold lip and adjustable flow-blocking blocks, providing uniform pressure
The vacuum system consists of two separate subsystems, equipped with a large number of closed-loop vacuum lines. Electrical control system: Utilizes the microprocessor unit PLC to control parameters and has optimized the operation characteristics.Vacuum calibrator: Array interlacing of the thermal convection system, ensuring calibration. Calibration of the vacuum system. The vacuum system consists of two separate subsystems, equipped with a large number of closed-loop vacuum lines. Electrical control system: Utilizes the microprocessor unit PLC to control parameters and has optimized the operation characteristics.
The production solution for hollow boards includes the following main advantages:
High efficiency (Production efficiency can be contracted. The full payment will be made after achieving the desired results.)
Production (The controllability of product thickness and quality. The same equipment and the same mold can produce products ranging from 2 to 6 mm in thickness.)
Reliability and stability (There are over 300 Wuhan Modern Precision's hollow board production lines in operation)
Strong adaptability (Our equipment can directly produce using recycled materials, scraps, and crushed materials, saving production costs by 30%)

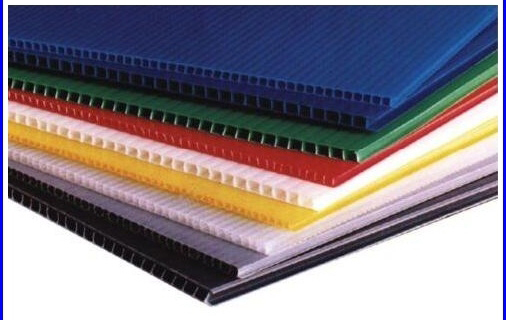

The characteristics of the hollow boards produced by this equipment:
Excellent mechanical properties
The structure of the plastic hollow board endows it with excellent mechanical properties such as good toughness, high impact resistance, high rigidity, and good bending performance.
2. Lightweight and resource-efficient
The mechanical properties of plastic hollow plates are excellent. To achieve the same effect, using plastic hollow plates requires less material consumption, lower costs and lighter weight.
3. Heat insulation, sound insulation
Due to the hollow structure of the plastic hollow board, its heat and sound transmission functions are lower than those of solid boards, and it has excellent insulation and soundproofing properties.
4. Conductive, Flame Retardant
By using methods such as modification, blending, and surface spraying, the hollow plastic boards can acquire conductive or flame-retardant properties.
5. Stability
The plastic hollow board has advantages over paperboard and wood board in terms of no fumigation requirements.
6. Smooth and attractive surface, with a wide range of color options.
Due to the molding process of plastic hollow boards, any color can be achieved through the color masterbatch, and the surface is smooth, making it easy for printing.
7. Plastic hollow boards are easy to dispose of and do not cause pollution to the environment. They can also be recycled and repurposed into other plastic products.
Application fields:
Electronics, automobiles, machinery, logistics, glass, advertising, food, etc.
