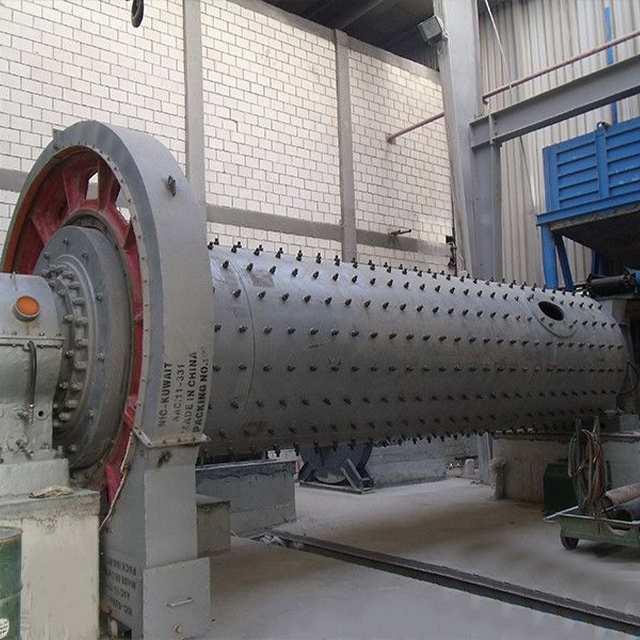

MQG Lattice Ball Mill

MQG lattice ball mill

Grate type mill is the key equipment of crushing and batching materials, which is mainly used for grinding cement raw materials, and can also be used for grinding various ores and other grainable materials in electric power, metallurgy, chemical industry and other working conditions. It has the characteristics of large production capacity, high efficiency, energy saving and environmental protection.

Capacity: 0.8-50 (t/h)

Measurement and measurement: 900 x 1800-3200 x 13000. 16

Application: Widely used in electric power, building materials, metallurgy, chemical industry, non-metal

MQG grate type ball mill product introduction

Grid type grinding is to add grid plate, discharge cone and other devices at the end of the grinding, change the discharge mode, to avoid over grinding, compared with the overflow type discharging mode, the material flow is more smooth, high grinding efficiency.

Outstanding advantage

1, the lining board is cast of high-quality wear-resistant material, wear resistance, long service life;

2, strong adaptability to fluctuations in physical properties of materials (such as particle size, moisture, hardness, etc.);

3, uniform product particle size, particle size is easy to adjust, high pass rate;

4, large production capacity, large crushing ratio, can adapt to different conditions of operation needs, and good sealing performance.

Working principle

When the motor drives the bridge device through the reducer to drive the cylinder to turn, the grinding body is attached to the lining surface of the inner wall of the mill cylinder due to the action of inertial centrifugal force, and turns together with it. When it is brought to a certain height, the material in the cylinder body is crushed under the action of gravity and centrifugal force. In addition to the cyclic motion of rising and falling, the grinding body will also slide and roll. Cause grinding between the grinding body, the liner and the grinding material to grind the material fine; When the material is crushed and ground by impact, the material itself flows slowly from the feed end to the discharge end by the difference in the height of the material surface between the feed end and the discharge end to complete the grinding operation.

Technical parameter
