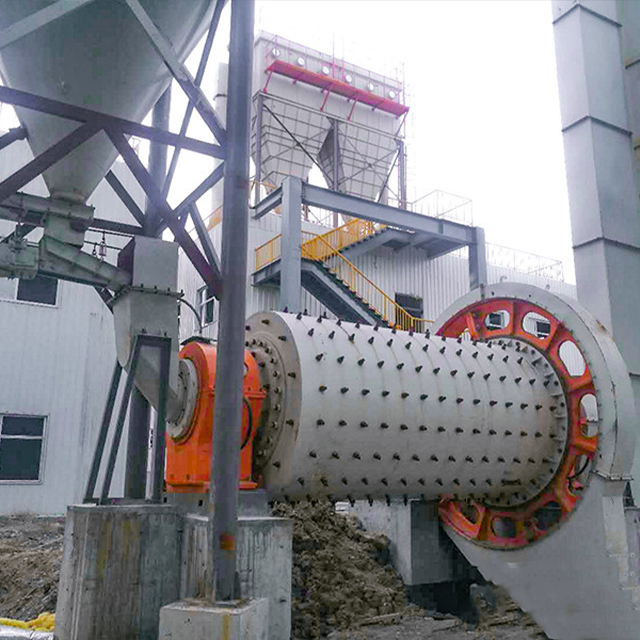

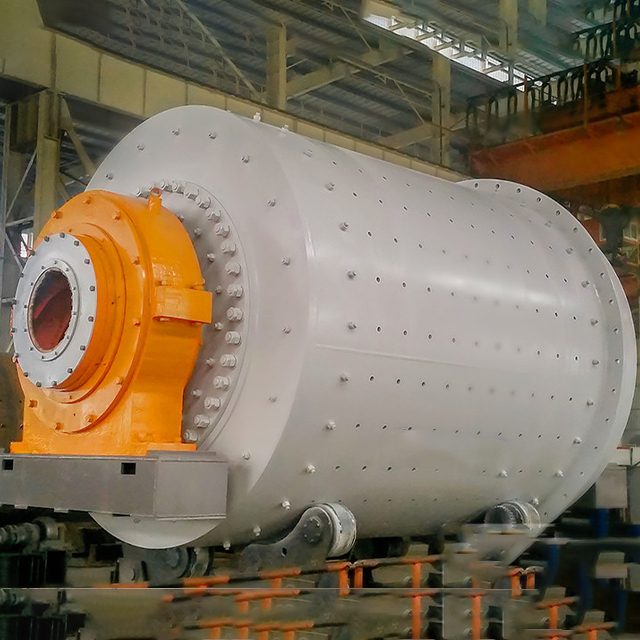

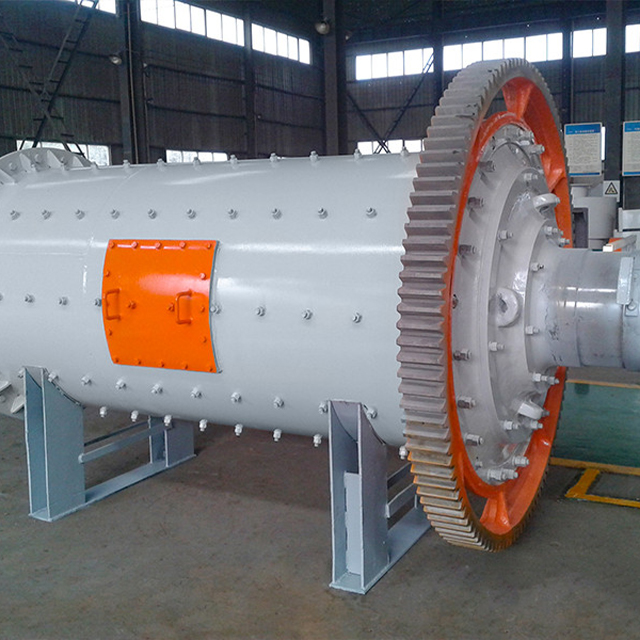

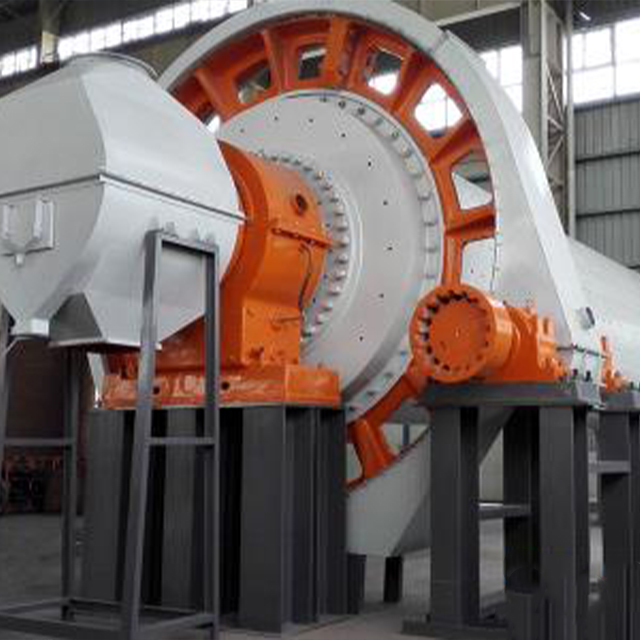

Metallurgy, mineral processing ball mill
Metallurgy and mineral processing ball mill is the main equipment of mine mineral processing, which is very important to improve the quality of selected ore. Metallurgy, mineral processing ball mill can separate and screen different minerals, separate tailings, but also used for processing a variety of grinding minerals, non-ferrous metal processing, new building materials and so on. According to the material and discharge method, metallurgy, mineral processing ball mill can be divided into dry mill and wet mill.
Output: 0.5-930t/h
Model: Φ1.2×2.0-Φ6.0×12
Application: mineral, non-ferrous metal mineral processing, new building materials, etc
Metallurgy, mineral processing ball mill product introduction
The machine is composed of feeding part, discharging part, rotating part, transmission part (reducer, pinion, motor, electric control) and other parts. The hollow shaft is made of steel casting, the inner lining can be disassembled, the rotary gear is made of casting hobbing, and the cylinder body is inlaid with wear-resistant lining plate, which has good wear resistance. The machine runs smoothly and works reliably.
Outstanding advantage
1, high crushing efficiency, relatively low energy consumption, less metal consumption per unit product;
2, the lining board is made of high-quality wear-resistant material, high strength, wear resistance, long service life;
3, stable operation, reliable work, relatively low energy consumption, small wear, low operating costs;
4, the fineness of the product is easy to adjust, and the product particles are uniform, smooth operation, reliable use, easy operation and maintenance.
Working principle
Metallurgical and mineral processing ball mills usually adopt edge transmission mode. The materials to be ground enter the ball mill continuously and evenly through the feeder. The motor drives the mill barrel to rotate through the reducer, and the materials enter the mill barrel through the feeding spiral barrel first. After being brought to a certain height, the material is hit and ground by the grinding body, and the crushed finished product is discharged from the mill through the sorting equipment to select the qualified material, and the unqualified material in the recirculation powder system continues to return to the mill to be hit and ground by the grinding body until the fineness is qualified.
Technical parameter
Specification | Cylinder speed (r/min) | Ball load (t) | Feed size (mm) | Discharge size (mm) | Output (t/) | Motor power (kW) | Weight (t) |
φ1.2×2.0 | 34.0 | 9 | ≤25 | 0.075-0.3 | 0.5-6 | 30 | 12.2 |
φ1.2×3.0 | 34.0 | 11 | ≤25 | 0.074-0.6 | 0.6-7 | 37 | 13.7 |
φ1.2×4.5 | 33.0 | 13 | ≤25 | 0.074-0.4 | 0.7-8 | 45 | 14.2 |
φ1.5× 1.5 | 31.0 | 9 | ≤25 | 0.074-0.4 | 1.5-7 | 45 | 13.4 |
φ1.5×3.0 | 31.0 | 17 | ≤25 | 0.074-0.4 | 3-11 | 75 | 17.6 |
φ1.5×4.5 | 30.0 | 23 | ≤25 | 0.074-0.4 | 4-12 | 110 | 21.8 |
φ1.5×5.7 | 30.0 | 25 | ≤25 | 0.074-0.6 | 4-14 | 130 | 25 |
φ1.83×6.4 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
φ1.83×7.0 | 24.5 | 20 | ≤25 | 0.074-0.6 | 6-22 | 210 | 36.5 |
φ2.1×2.1 | 24.0 | 16 | ≤25 | 0.074-0.6 | 6-33 | 180 | 39 |
φ2.1×3.6 | 22.0 | 20 | ≤25 | 0.074-0.4 | 7-39 | 210 | 48 |
φ2.4×3.0 | 22.0 | 25 | ≤25 | 0.074-0.8 | 7-90 | 240 | 65 |
①2.7×2.1 | 21.0 | 25 | ≤25 | 0.074-0.8 | 9-80 | 240 | 67 |
φ2.7×3.6 | 21.0 | 46 | ≤25 | 0.074-0.8 | 12-2025 | 380 | 86 |
φ3.2×4.5 | 18.0 | 69 | ≤25 | 0.074-0.8 | 一 | 600 | 126 |
φ3.6×4.5 | 17.0 | 90 | ≤25 | 0.074-0.8 | 一 | 850 | 160 |
φ3.6×6.0 | 17.0 | 95 | ≤25 | 0.074-0.8 | 一 | 1250 | 175 |
φ3.8×4.6 | 16.9 | 88 | ≤25 | 0.074-0.4 | 92-125 | 1050 | 161 |
φ3.8×6.0 | 16.9 | 114 | ≤25 | 0.074-0.4 | 120-163 | 1400 | 184 |
①3.8×7.6 | 16.9 | 145 | ≤25 | 0.074-0.4 | 152-207 | 1750 | 207 |
φ4.0×4.8 | 16.4 | 102 | ≤25 | 0.074-0.4 | 109-148 | 1250 | 182 |
φ4.0×6.0 | 16.4 | 127 | ≤25 | 0.074-0.4 | 137-185 | 1550 | 204 |
φ4.0×8.0 | 16.4 | 169 | ≤25 | 0.074-0.4 | 182-247 | 2100 | 235 |
φ4.2×5.0 | 16 | 117 | ≤25 | 0.074-0.4 | 127-172 | 1450 | 205 |
φ4.2×6.7 | 16 | 157 | ≤25 | 0.074-0.4 | 170-231 | 1950 | 237 |
φ4.2×8.4 | 16 | 197 | ≤25 | 0.074-0.4 | 214-289 | 2450 | 266 |
φ4.4×5.3 | 15.6 | 137 | ≤25 | 0.074-0.4 | 150-199 | 1700 | 232 |
Φ4.4×7.0 | 15.6 | 181 | ≤25 | 0.074-0.4 | 198-263 | 2250 | 266 |
φ4.4×8.8 | 15.6 | 227 | ≤25 | 0.074-0.4 | 249-330 | 2850 | 299 |
φ4.6×5.5 | 15.3 | 155 | ≤25 | 0.074-0.4 | 172-228 | 1950 | 258 |
φ4.6×7.4 | 15.3 | 209 | ≤25 | 0.074-0.4 | 231-307 | 2650 | 299 |
φ4.6×9.2 | 15.3 | 260 | ≤25 | 0.074-0.4 | 288-381 | 3300 | 334 |
φ4.8×5.8 | 15 | 179 | ≤25 | 0.074-0.4 | 200-265 | 2300 | 289 |
φ4.8×7.7 | 15 | 238 | ≤25 | 0.074-0.4 | 265-351 | 3000 | 332 |
φ4.8×9.6 | 15 | 296 | ≤25 | 0.074-0.4 | 331-438 | 3750 | 371 |
φ5.0×6.4 | 14.6 | 215 | ≤25 | 0.074-0.4 | 242-320 | 2750 | 329 |
φ5.0×8.1 | 14.6 | 272 | ≤25 | 0.074-0.4 | 306-405 | 3500 | 370 |
φ5.0×10.0 | 14.6 | 336 | ≤25 | 0.074-0.4 | 378-500 | 4300 | 411 |
φ5.2×6.4 | 14.4 | 233 | ≤25 | 0.074-0.4 | 264-349 | 3000 | 356 |
φ5.2×8.3 | 14.4 | 302 | ≤25 | 0.074-0.4 | 342-453 | 3900 | 405 |
φ5.2×10.4 | 14.4 | 378 | ≤25 | 0.074-0.4 | 429-568 | 4900 | 453 |
φ5.5×6.6 | 13.9 | 269 | ≤25 | 0.074-0.4 | 309-408 | 3500 | 404 |
φ5.5×8.5 | 13.9 | 347 | ≤25 | 0.074-0.4 | 398-526 | 4500 | 459 |
φ5.5×11.0 | 13.9 | 449 | ≤25 | 0.074-0.4 | 515-681 | 5800 | 522 |
φ5.8×7.3 | 13.4 | 312 | ≤25 | 0.074-0.4 | 436-523 | 4600 | 530 |
φ5.8×11.8 | 13.4 | 490 | ≤25 | 0.074-0.4 | 695-834 | 7400 | 760 |
φ6.0×7.5 | 13.2 | 352 | ≤25 | 0.074-0.4 | 493-590 | 5300 | 585 |
φ6 .0×12 | 13.2 | 539 | ≤25 | 0.074-0.4 | 755-930 | 8200 | 829 |
