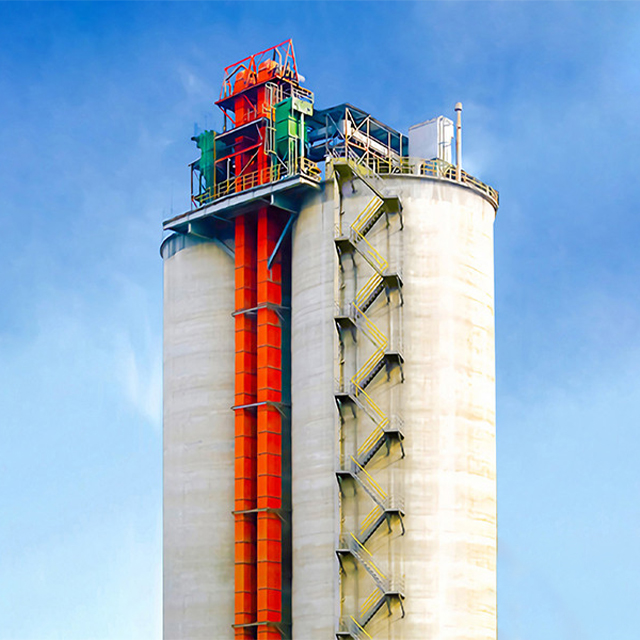

NE type plate chain elevator
Product introduction: Our company's NE15-NE400 plate chain bucket elevator has eight specifications, the housing adopts the pressure reinforcement structure, strong rigidity, high precision, easy operation and maintenance, compact structure. Conveying materials 16-441m³ per hour, lifting height up to 40 meters, can meet a variety of production needs.
Conveying capacity: 16-441m³/h
Model: NE15-NE400
Application: and widely used in building materials, electric power, metallurgy, machinery, chemical industry, mining and other industries.
NE type plate chain elevator product introduction
NE type plate chain bucket elevator is a widely used vertical conveying equipment, used for vertical conveying powder, granular and block materials, can also transport large grinding and polishing materials, such as cement, sand, soil coal, ceramic sand, etc., the material temperature generally does not exceed 200℃, lifting height up to 40m.
Outstanding advantage
1, the whole machine adopts full seal design, no dust pollution during operation;
2, the shell adopts compressive reinforcement structure, strong rigidity, high precision, beautiful appearance;
3, a wide range of lifting: not only can improve the general powder, granular and block materials, but also can improve the grinding of large materials;
4, NE type chain plate bucket elevator in addition to large conveying capacity, long service life, stable and reliable operation, easy operation and maintenance, compact structure.
Working principle
The traction part of the NE type plate chain bucket elevator is a plate chain, and the hopper is fixed on the traction part at a certain interval. The traction part is formed by the sprocket of the lifting head and the bottom, which constitutes the closed ring system of the rising loaded branch and the falling unloaded branch. The driving device arranged in the lifting head passes the power to the traction member and the hopper through the head sprocket. The material enters the hopper of the hoist through the feed port at the bottom of the hoist. The hopper lifts the material to the head and discharges the material at the head. The material leaving the hopper is discharged through the discharge port at the head of the hoist. The hopper of the hoist and the bottom wheel of the first wheel of the traction member are installed in the fully sealed housing to realize the material transportation without dust pollution.
Technical parameter
Model number | Maximum lift (m³/h) | Power (kW) | Lifting height (bulk weight 0.6~2.0t/m³) |
NE15 | 16 | 1.5-4.0 | 6.28-30.78 |
NE30 | 31 | 1.5-11 | 4.13-47.63 |
NE50 | 60 | 1.5-18.5 | 4.13-49.13 |
NE100 | 110 | 5.5-30 | 6.65-49.15 |
NE150 | 165 | 5.5-45 | 6.10-52.60 |
NE200 | 220 | 15-75 | 5.73-47.23 |
NE300 | 320 | 15-90 | 4.23-54.73 |
NE400 | 441 | 15-132 | 12.6-54.7 |
