Nepheline Crushing Mill Production Project (Sichuan Province)

I. Project overview

(Sichuan Province) Nanjiang nepheline crushing and grinding project mainly feed raw materials ≤500mm into the crusher through the feeder, after crushing and screening, mix with other raw materials and water into the rod mill for rough grinding. After drying and other processes, enter the ceramic ball mill for fine grinding, to reach the required particle size after the mill.

After learning the needs of users, our company's sales and technical personnel actively contact with users, through everyone's unremitting efforts, users are very satisfied, and signed the project contract in 2022.

After the equipment was sent to the site, our company personnel went to the site, actively followed up, and successfully completed the installation and commissioning and put into production in May 2023. Site equipment energy saving and environmental protection, to meet customer needs, reasonable layout. Since the operation of the equipment, the failure rate is low, which is well received by customers.

Processing material: nepheline

Processing capacity: 65t/ time

II. Main equipment

1, PE600×900 jaw crusher, 1 set

Equipment use and features:

① For the crushing of raw materials.

② Strong and durable, easy to operate, simple maintenance.

③ The parts and components used have good interchangeability.

2. φ2.4×3m wet overflow rod mill, 1 set

Equipment use and features:

① For the coarse grinding of nepheline.

② Smooth transmission, good product consistency, low product loss.

3, φ2.4×8m ceramic ball mill and φ2.2×7m ceramic ball mill, each set

Equipment use and features:

① For fine grinding of nepheline.

② High working efficiency, low operating costs, stable mechanical properties.

③ The part in contact with the material is made of ceramic liner, which reduces the iron pollution of the material and ensures the good performance of the product.

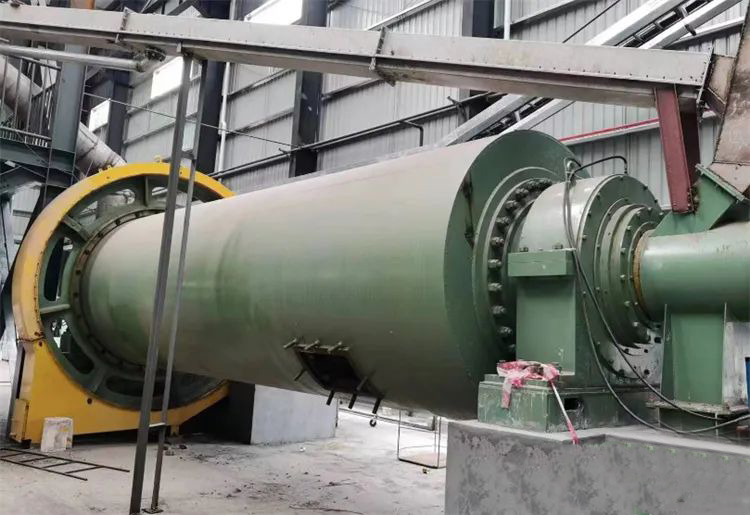

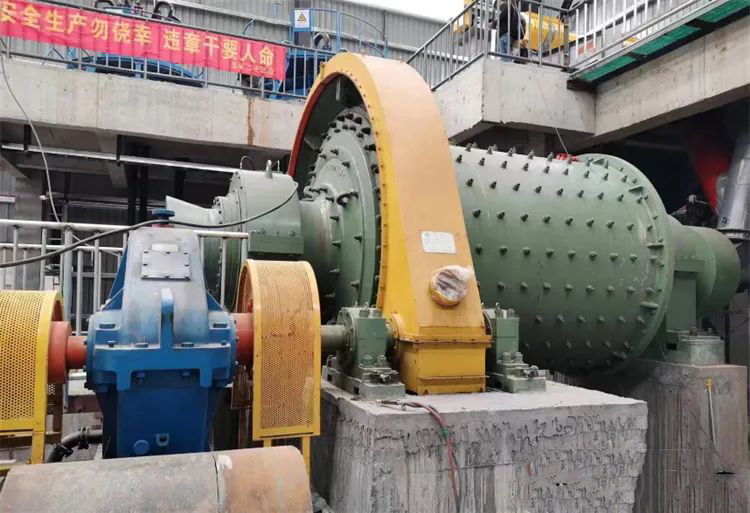

III. Pictures of equipment
