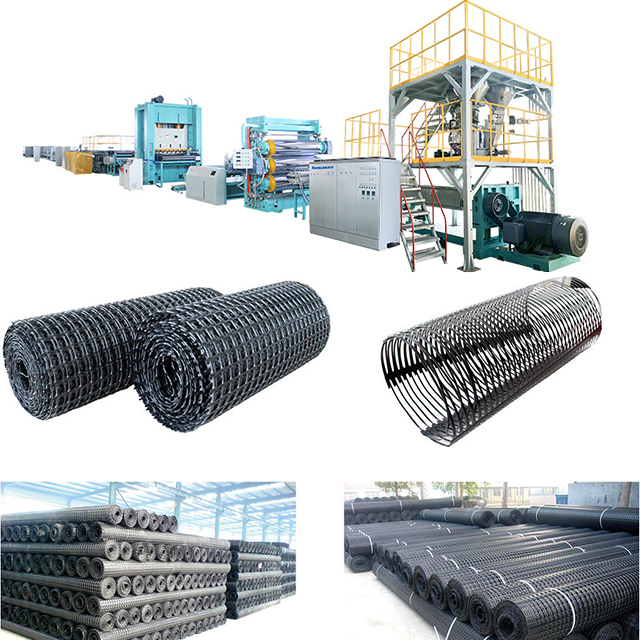

New High-speed Fully Automatic Plastic Biaxially Oriented Geogrid Production Line

New high-speed fully automatic plastic biaxially oriented geogrid production line (Model: The TJ-TGGS4000 high-speed geogrid production line is a perfect integration of the production essence of well-known geogrid enterprises over many years and advanced plastic extrusion lamination patent technology. It has been meticulously optimized by renowned extruder experts and developed and manufactured by Tongjia based on years of experience in producing plastic net equipment. It is a high-speed fully automatic geogrid production line! The production line speed of the products has reached 16 meters per minute, which is more than twice that of traditional models and leads the current production speed of geogrids on the market.
Availability:
Quantity:

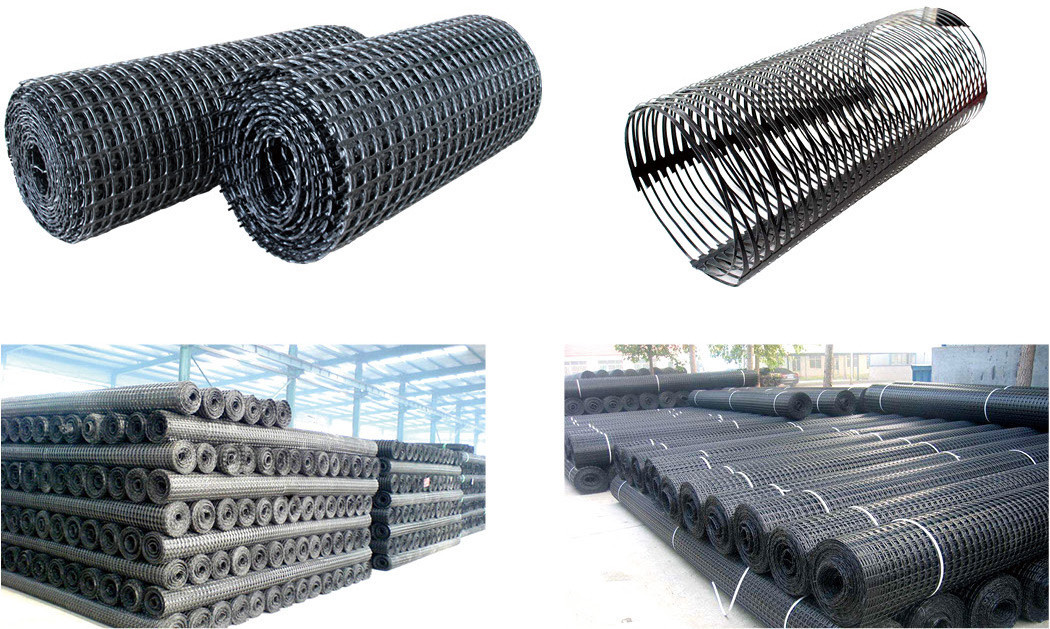

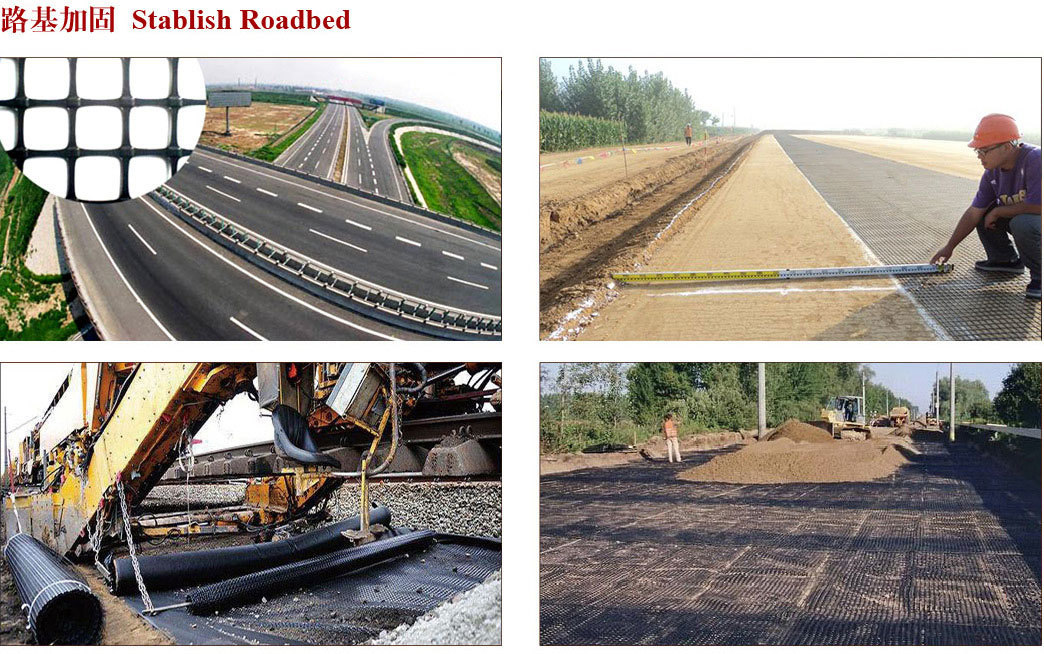

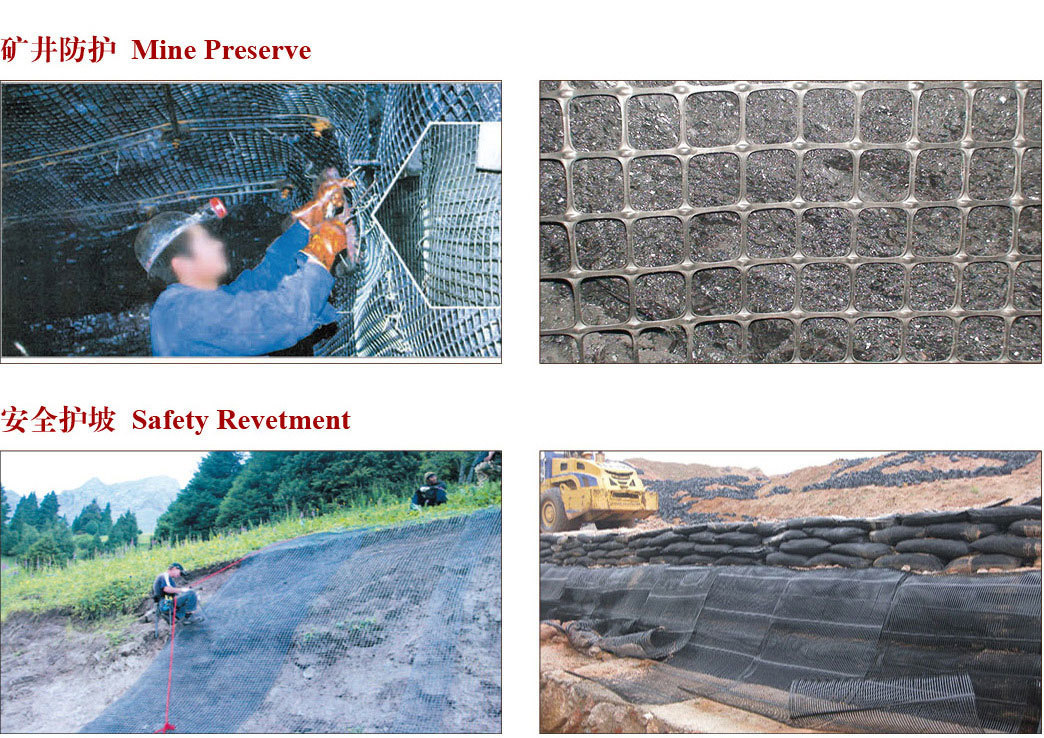

Product application

a50fe420-b330-46dd-9d4a-96b7bd96e9bc

3357f495-96af-4897-ad8f-233459838c0d6eb217bf-d284-417c-ad9d-2167f65dade9

Equipment parameters
Type TJ-TGGS4000 TJ-TGGS4000G TJ-TGGS6000G
Extruder φ150/33 φ160/35x2 φ180/33x2
Screw diameter mm O150 φ160 φ180
Die head width mm 1450 1600 2000
Punching pressure KN 1100 2000 3150
Unidirectional product width mm 1200 1200 2000
Bidirectional product width mm 4000 4000 6000
Specification of bidirectional products KN/m 15-15,20-40,50-50
External dimensions (approximately) m 98×12×4.8 98×12×4.8 110×15×5.2

Equipment display:

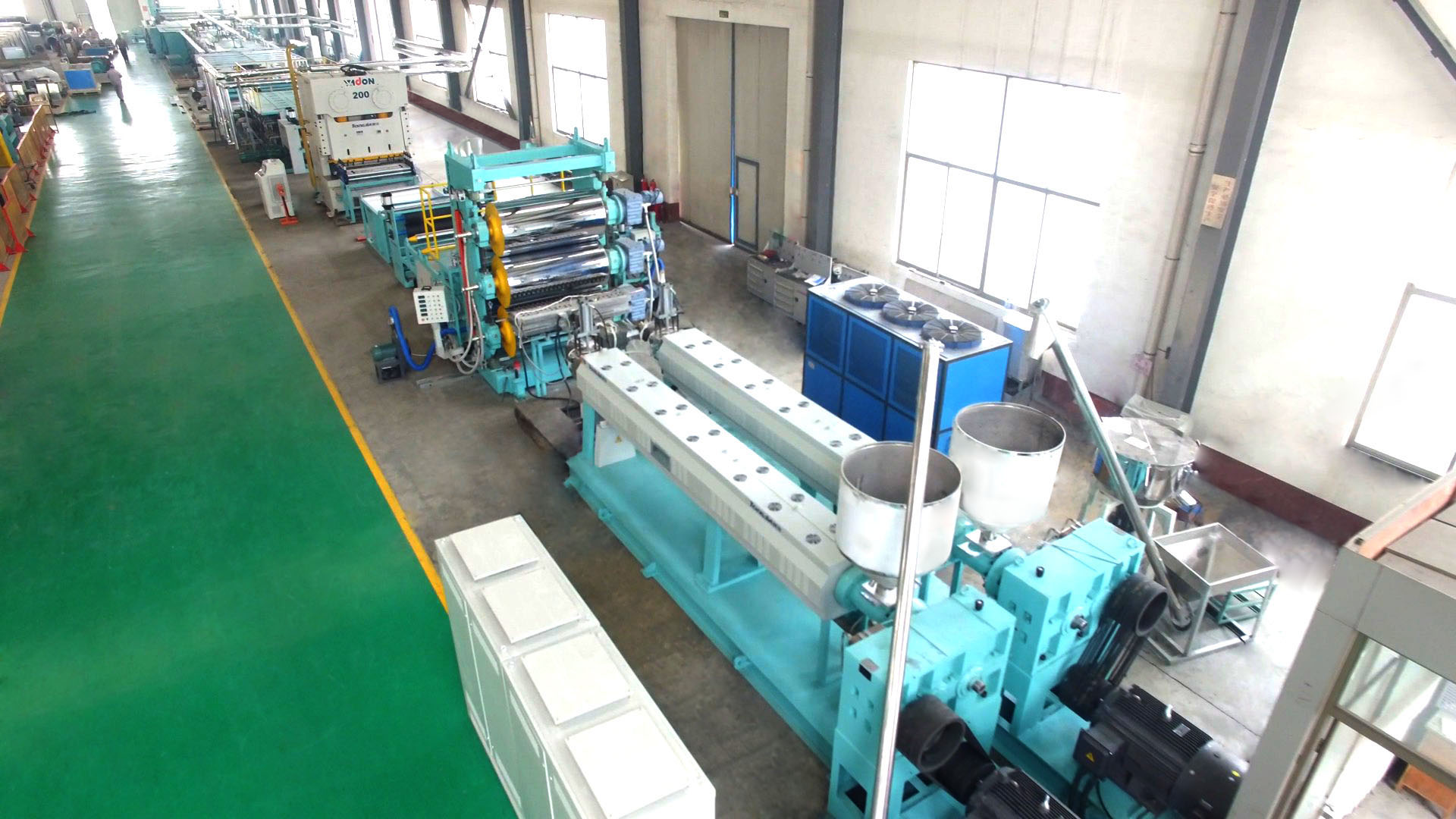

High-efficiency single-screw extruder

c96dd175-0681-4f27-989b-7883b2ca1c0c

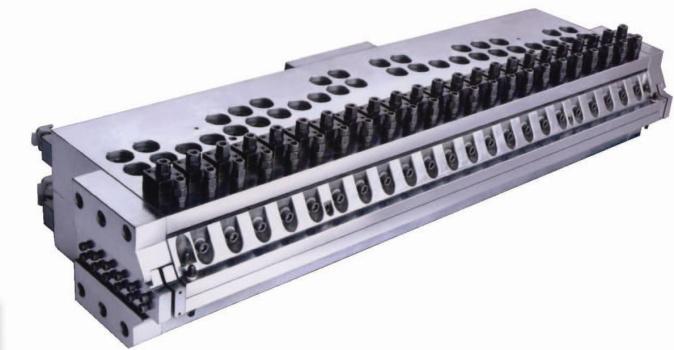

Hanger type flat extrusion template

5a01627e-5309-431d-86ba-ee3569db8e22

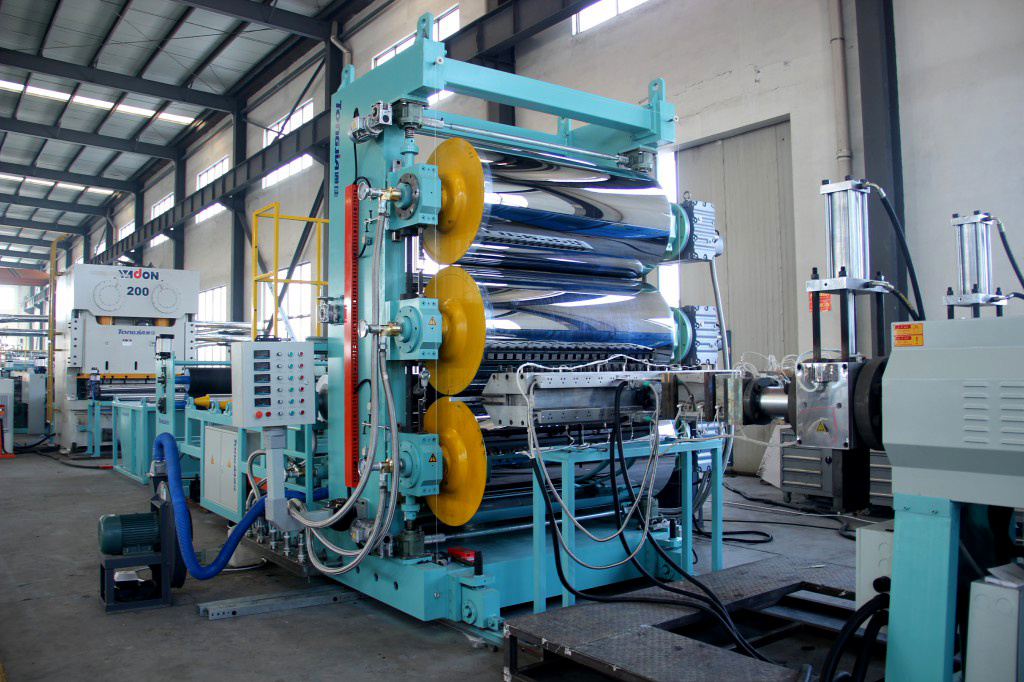

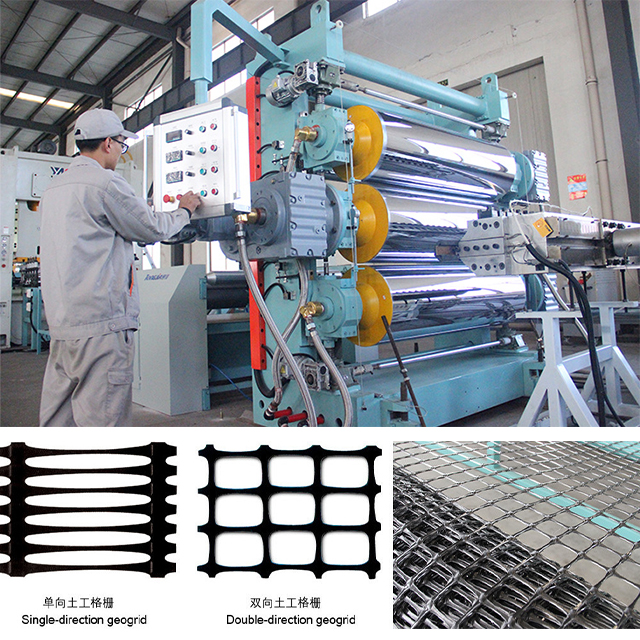

Large-diameter three-roll calender

4b0303c8-be20-4d9f-a655-540f07276011

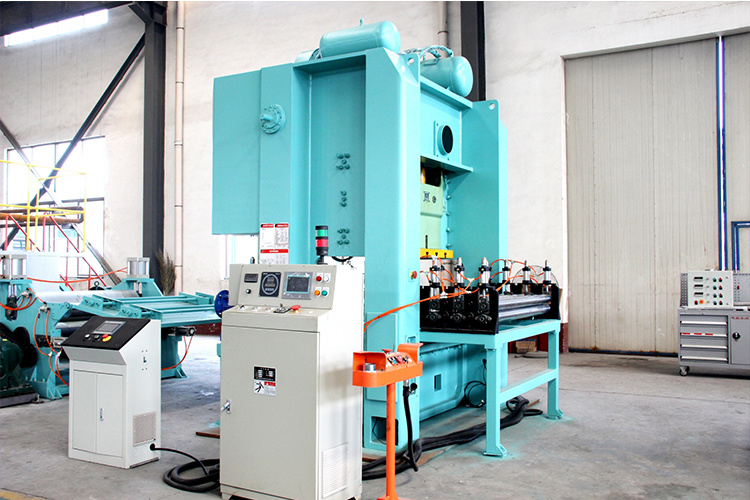

High-precision punching device

de959454-228b-4460-99bd-692cd98e33f0

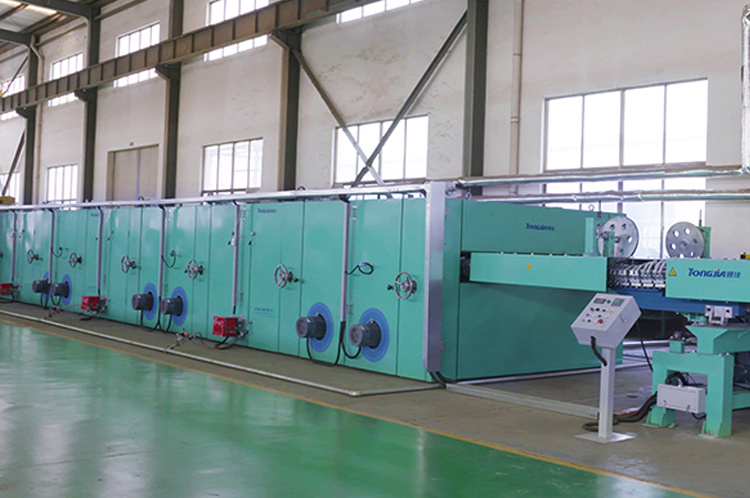

Oil constant temperature multi-roll longitudinal stretching system

616607c9-9305-4ad7-93c2-f3aa92c05c34

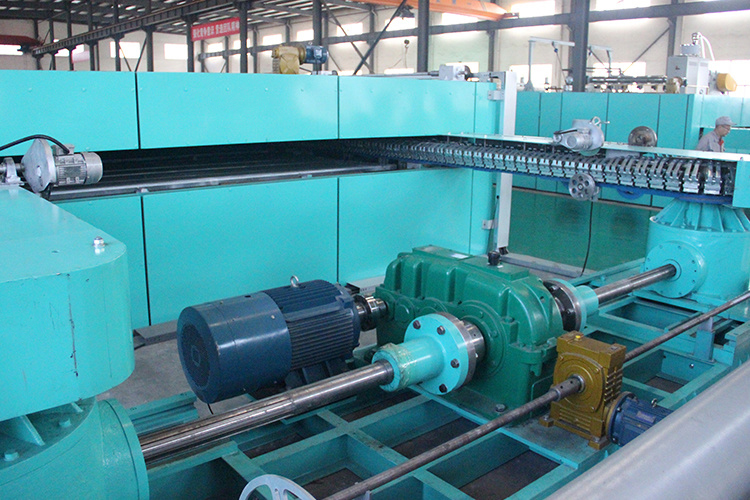

Extended adjustable width lateral stretching system

325536df-67ea-4c4a-9b6e-da160d5cd68e

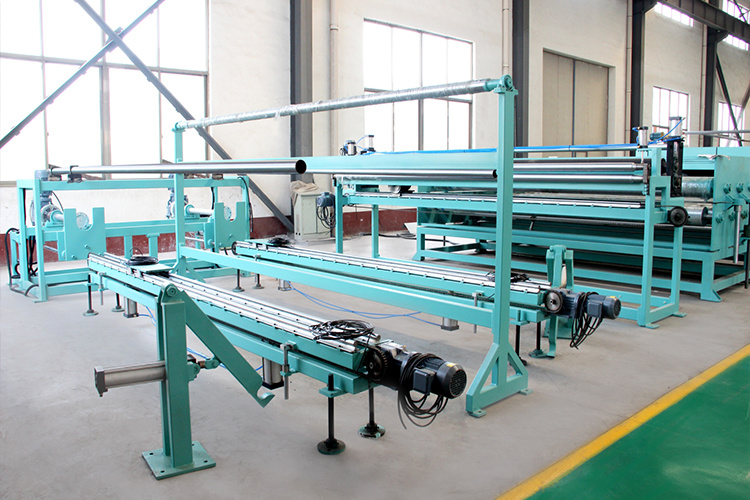

Automatic winding and cutting system

a81b46f2-3f8b-4f16-bdfb-b592550bca82
