I. Project overview
Product name: Oil fracturing proppant pilot line
Capacity: 100kg/h
Main equipment model: ZKL12 pot granulator, Y0808 rotary kiln, φ0.4x2 meter cooling machine.
Introduction to the pilot line: Zhengkuang Machinery shall design and manufacture the pilot line of oil fracturing proppant according to the requirements of the design institute and the owner, with a production capacity of 100kg/h. Including batching, mixing, granulation, calcination, cooling system, calcination temperature up to 1500℃.
II. Solution
At the beginning of the design, our business and technical personnel communicated with the design institute and the owner many times, combined with our previous experience in many pilot line cases, to develop strengths and avoid weaknesses, and finally finalize the scheme.
1, the equipment is light, occupy a small space, the configuration of the whole rack machine delivery, installation and debugging is convenient.
2, suitable for many materials, calcination temperature up to 1500℃, suitable for different raw materials and a variety of experimental topics.
3, variable design, adjustable speed, tilt Angle, temperature, feeding amount.
4, safe and controllable, complete combustion system, pressure reducing valve, flow meter and other safety valves.
5. Accurate data collection, wireless temperature measurement of kiln body, real-time control of temperature rise curve.

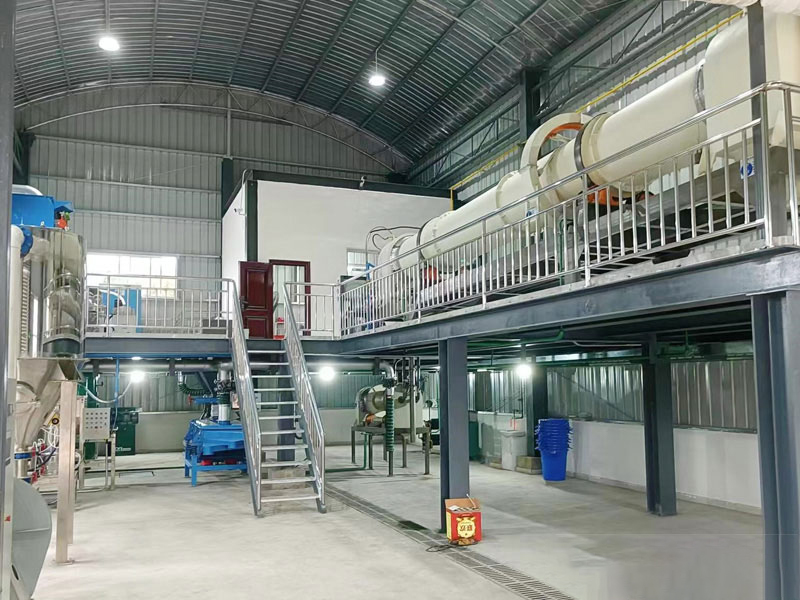

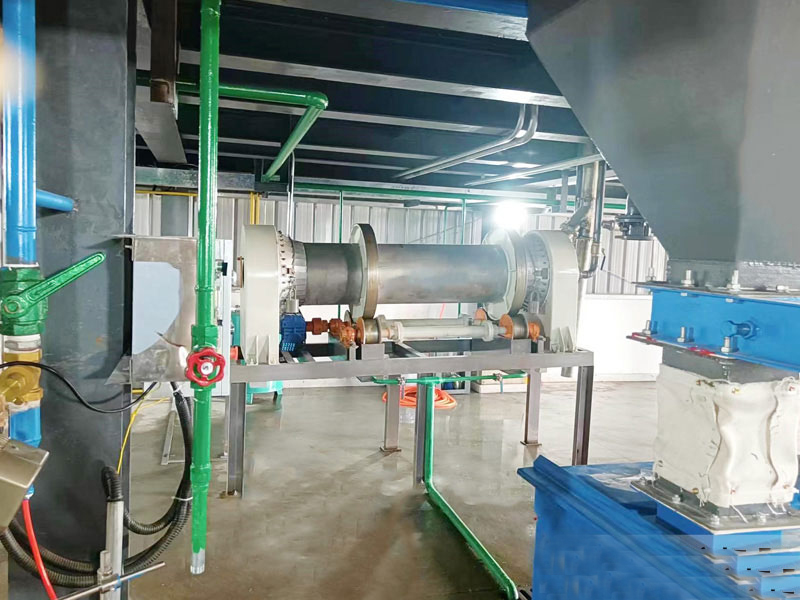

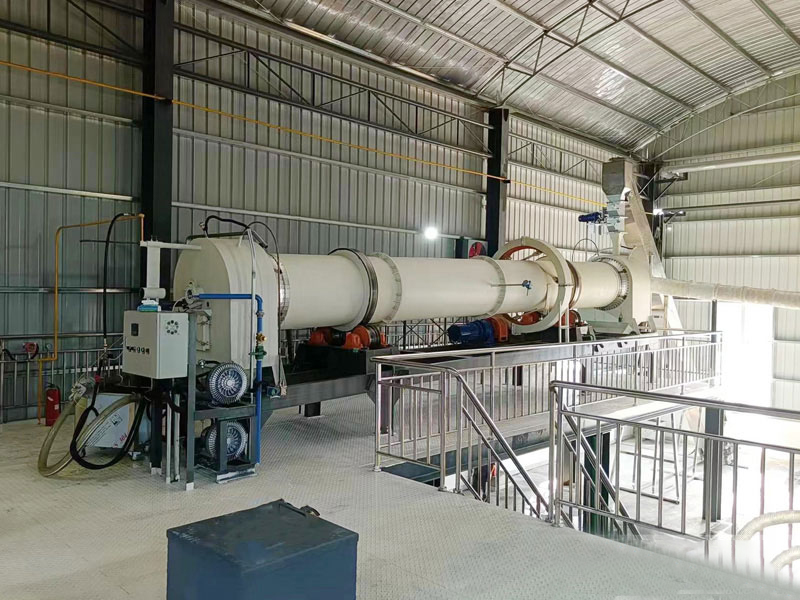

III. Pictures of equipment
