PC Series Hammer Crusher

Referred to as hammer crusher, this series of crusher products have seven models, meet the size of 200mm-300mm material crushing, the discharge particle is less than 30mm, and can be adjusted through the discharge grate, when the production capacity of 8-100t, can meet a variety of crushing production needs.
Application: Used in metallurgy, building materials, mining, highway, mineral processing and other industries of bulk material crushing.
Availability:
Quantity:

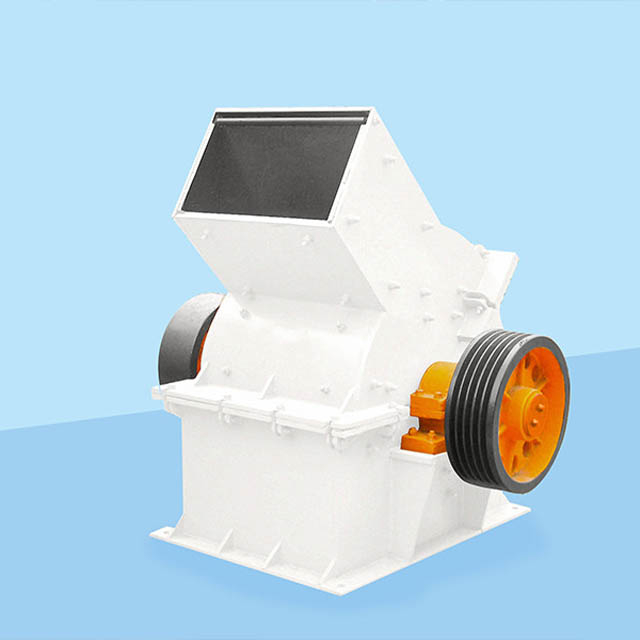

PC series hammer crusher

Referred to as hammer crusher, this series of crusher products have seven models, meet the size of 200mm-300mm material crushing, the discharge particle is less than 30mm, and can be adjusted through the discharge grate, when the production capacity of 8-100t, can meet a variety of crushing production needs.


Capacity: 8-100(t/h)


Model: PC400×300-PC1200×1000


Weight: 0.8-12.5t


Application: Used in metallurgy, building materials, mining, highway, mineral processing and other industries of bulk material crushing.


PC series hammer crusher product introduction

This series of crusher is the preferred equipment for small sand and gravel production line with less investment and quick effect, and can achieve selective discharge by changing the grate form.


Outstanding advantage

1. This series of products has the characteristics of small size, light weight, simple structure, easy operation and maintenance, large crushing ratio, small over-crushing, uniform product size and high production capacity;


2, suitable for crushing brittle, medium hard, compressive strength of 150MPa of all kinds of materials;


3, the characteristics of the work hammer head is large, the use of new process casting, with wear resistance, impact resistance, according to customer requirements, adjust the required particle size, while the body structure seal, to solve the crushing workshop dust pollution and body ash leakage problems;


4, and the overall design is beautiful, compact structure, less wearing parts, easy maintenance and other advantages, is an upgrade product.


Working principle

The hammer crusher mainly relies on the impact energy to complete the crushing material operation. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, the material evenly enters the crusher chamber, the high-speed rotary hammer impact, shear tear the material causing the material to be broken, at the same time, the gravity of the material itself makes the material rush from the high-speed rotating hammer head to the baffle in the frame, the screen bar, the material larger than the size of the sieve to remain on the sieve plate continue to be hit and ground by the hammer. Until broken to the required discharge particle size through the sieve plate discharged out of the machine.


Technical parameter


Model numberFeed size (mm)Discharge size (mm)Rotor speed (r/min)Yield (t/h)Power (kW)Weight (without motor)
PC400x300<200<2510008-15110.8
PC500x350<200<25100012-2018.51.2
PC600x400<250<25120015-30221.5
PC800x600<300<30110025-50553.7
PC1000x800<300<30100030-651106.5
PC1000x1000<300<3080045-801327.59
PC1200x1000<300<3065070-10016012.5
