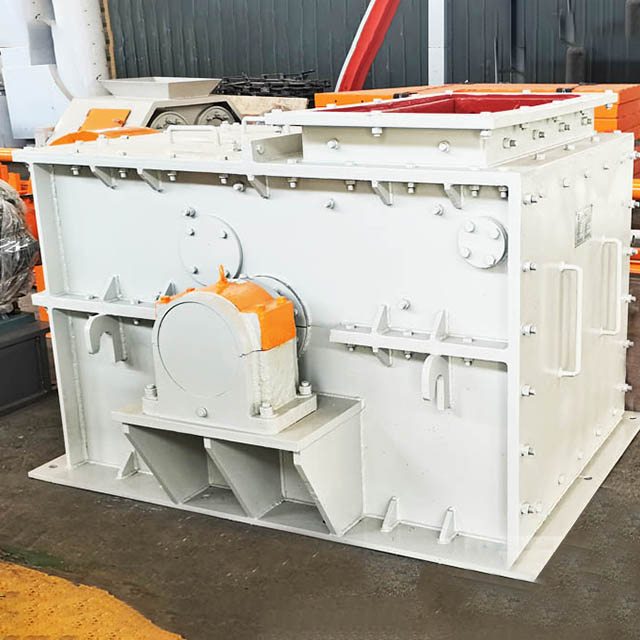

PCH series ring hammer crusher
Product introduction: PCH ring hammer crusher has the characteristics of stable operation, reliable, compact structure, less dust, low noise, light weight, easy maintenance, low power consumption, strong ability to discharge super hard materials and so on.
Processing capacity: 8-1000t/h
Specifications: PCH0402-PCH1221
Application: Used in metallurgy, building materials, mining, highway, mineral processing and other industries of bulk material crushing.
PCH series ring hammer crusher product introduction
PCH ring hammer crusher is suitable for crushing various brittle materials, such as coal, coal gangue, coke, slag, red sandstone, shale, loose limestone and so on. The compressive strength of the material does not exceed 40MPa, the surface moisture should not be greater than 8% ~ 11%, for non-adhesive materials, the surface moisture can be controlled within 15%.
Outstanding advantage
1. Large feed port, high crushing chamber, high material hardness, large block, less product stone powder, small crushing power consumption;
2, hammer and other wearing parts are made of excellent materials, greatly extending the service life;
3, product particle size control, good particle shape;
4, simple structure, easy maintenance and operation.

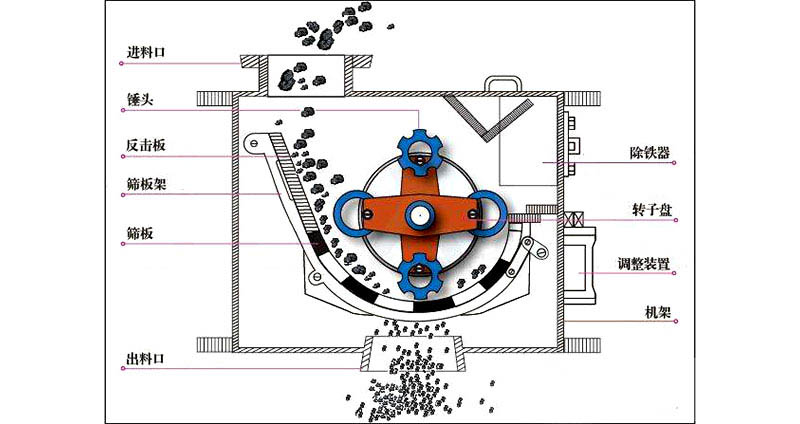

Working principle
PCH series ring hammer crusher is an impact rotor crusher with ring hammer. The ring hammer not only rotates with the rotor, but also rotates around the ring hammer pin. After the material enters the crusher, it is broken by the ring hammer impact of the high-speed rotation of the rotor in the crushing chamber. The broken material obtains kinetic energy from the ring hammer at the same time, rushes to the crushing plate at a high speed, and then falls to the sieve plate, and is cut, squeezed, grinding and the collision between the materials, the material is further broken and discharged through the screen hole.
Type specification | Rotor size (mm) | Feed size (mm) | Discharge size (mm) | Motor type | Motor power (kW) | Yield (t/h) | Weight (without motor)(t) |
PCH-0402 | φ400x200 | 200 | ≤30 | Y132M2-6 | 5.5 | 8-12 | 1.3 |
PCH-0404 | Φ400x400 | 200 | ≤30 | Y160L-6 | 11 | 16-25 | 1.6 |
PCH-0604 | φ600x400 | 200 | ≤30 | Y180L-6 | 15 | 22-33 | 2.2 |
PCH-0606 | φ600x600 | 200 | ≤30 | Y225M-6 | 30 | 30-60 | 2.8 |
PCH-0808 | φ800x800 | 200 | ≤30 | Y280M-8 | 45 | 75-105 | 5.3 |
PCH-1010 | Φ1000x1000 | 300 | ≤30 | Y315M2-8 Y315M3-8 | 90 110 | 160-200 200-245 | 7.6 |
PCH-1016 | φ1000x1600 | 300 | ≤30 | Y312-8Y400-8 | 155 220 | 300-350 400-500 | 12 |
PCH-1216 | φ1200x1600 | 400 | ≤30 | Y400-8Y450-8 | 280 355 | 500-620 620-800 | 19 |
PCH-1221 | φ1200x2100 | 400 | ≤30 | Y450-8 | 450 | 800-1000 | 30 |
