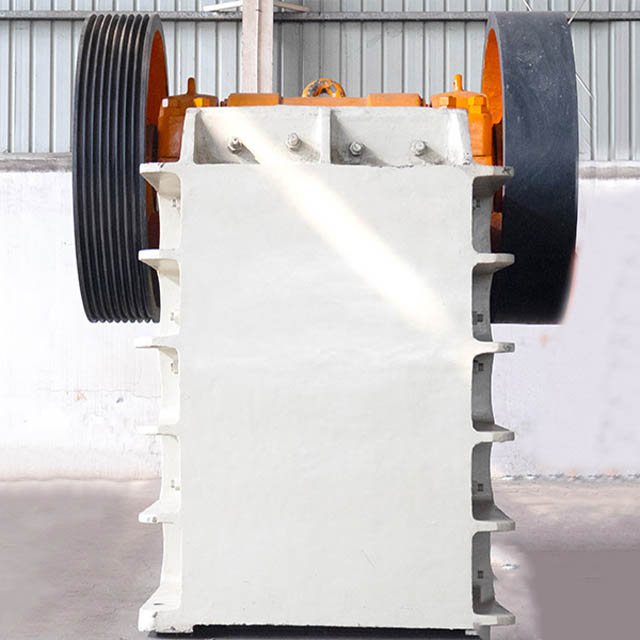

PE/PEX Series Jaw Crusher

PE/PEX series jaw crusher

Product introduction: Our company produces PE, PEX two series jaw crusher, of which PE series is used for all kinds of ore and rock coarse crushing operation, PEX series is used for medium and fine crushing; Two series of various types of jaw crusher to meet the production needs of all kinds of large, small and medium-sized enterprises.

Processing capacity: 1-500m³/h

Specifications: PE-150×250-PE-1200×1500mm, PEX-150×500-PEX-300×1300mm

Applicable materials: all kinds of rocks, ores, limestone, dolomite, coal gangue, magnesite, silica and so on

Application industry: Widely used in mining, smelting, construction, road, railway, water conservancy and chemical industry and many other industries.

PE/PEX series jaw crusher product introduction

PE, PEX series jaw crusher is a large pendulum crushing equipment, mainly used for crushing a variety of medium hard ore and rock with compressive strength not exceeding 320MPa, with large crushing ratio, high yield, uniform product particle size, reliable work, easy maintenance, low operating costs, etc. It can be widely used in many industries such as mining, smelting, construction, highway, railway, water conservancy and chemical industry.

Outstanding advantage

1, high production efficiency, large crushing ratio, uniform product particle size, low energy consumption, low noise, less dust;

2, gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment;

3, the jaw plate is made of high strength manganese steel, one molding casting, with wear resistance, pressure resistance, long life and other characteristics;

4, simple structure, reliable work, low operating costs, safe and reliable lubrication system, easy parts replacement.

Working principle

PE, PEX series jaw crusher is driven by the motor as the power, through the belt drive eccentric shaft, so that the moving jaw according to the predetermined trajectory for reciprocating movement, so that the material into the crushing chamber composed of fixed jaw plate, movable jaw plate and side protection plate to be broken, and through the lower discharge port will be finished material unloaded. The crushing mode of this series jaw crusher is curved extrusion type, the motor drives the belt and pulley, and makes the moving jaw move up and down through the eccentric shaft. When the moving jaw rises, the Angle between the elbow plate and the moving jaw becomes larger, so as to push the moving jaw plate close to the fixed jaw plate. At the same time, the material is crushed, split and bent. When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the tie rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber. With the continuous rotation of the crushing jaw by the motor, the periodic crushing and discharging are carried out to achieve mass production.

Technical parameter
