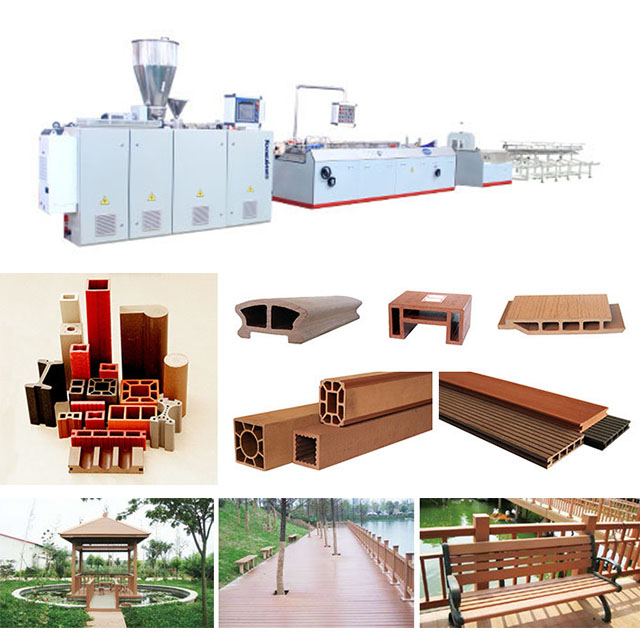

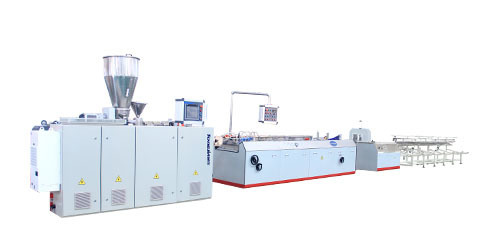

PE/PP Wood-plastic Garden Profile Production Line

◆ JG-MSX PE/PP wood-plastic series dedicated high-efficiency extrusion equipment, with stable performance and energy-saving high efficiency. ◆ 38CrMoAlA high-quality alloy steel surface bimetallic coating, professional and unique internal structure screw barrel. ◆ Special reduction boxes for plastic machinery are adopted, and the gears are ground and nitrided. The low-voltage electrical appliances adopt well-known brands, with precise control and simple operation. It can also be optionally equipped with programmable computer control, making the entire line fully intelligent.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Details:

◆ TJ-MSX PE/PP wood-plastic series dedicated high-efficiency extrusion equipment, with stable performance and energy-saving high efficiency.

◆ 38CrMoAlA high-quality alloy steel surface bimetallic coating, professional and unique internal structure screw barrel.

◆ Special reduction boxes for plastic machinery are adopted, and the gears are ground and nitrided.

The low-voltage electrical appliances adopt well-known brands, with precise control and simple operation. It can also be optionally equipped with programmable computer control, making the entire line fully intelligent.

Machine model		TJ-MSX65/132		JG-MSX80/156
Screw diameter	mm	Φ65/132		Φ80/156
Screw rotational speed	r/min	39.1		37.7
Host power	KW	37		55
Screw barrel heating power (approximately)	KW	24		36
Center height	mm	1000		1000
Main products		Outdoor PE wood-plastic
Heating and cooling of the screw barrel	kg/h	Electric heating, forced air cooling
Main technical parameters of the auxiliary machine
机器型号			YF300		YF400
Cutting width		mm	300		400
Cutting power		KW	2.2		2.2
Cooling water capacity		m3/h	6		9
Compressed air pressure		Mpa	0.6		0.6

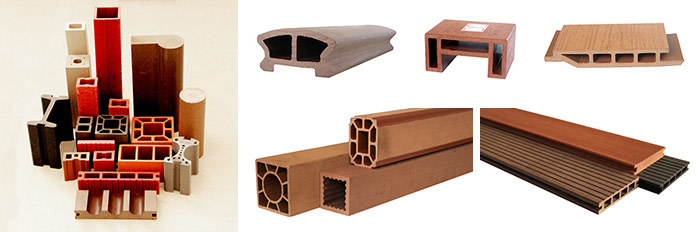

Wood-plastic profiles are a new type of building decoration material, which are made by fully mixing PVC, PP, PE, PS, ABS plastics and various plant fibers, and then extruding and vacuum sizing. They are suitable for wood construction methods such as drilling, planing, nailing, sawing, laminating and printing. It is environmentally friendly, waterproof, moisture-proof, anti-corrosive, anti-mold, non-deformable, flame-retardant and recyclable.

Product application and display

dc8964c9-49e0-4346-8a2c-aba96bf71cdf.jpg_1180xaf ed344c28-ea13-4734-9aff-0436bf1f6031

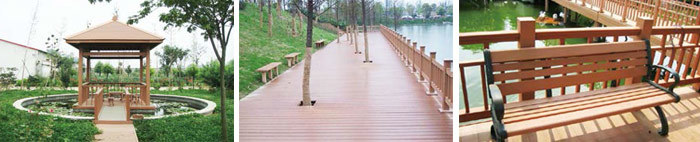

It is mainly applied in the processing of wood-plastic profiles for outdoor garden construction such as imitation landscape wood and imitation solid wood.

◆ Fields such as flooring, guardrails, pallets, packaging boxes, partition boards, door and window casings, skirting boards, etc.

b0228e94-06c9-46a7-8dc2-fab963c22eab
