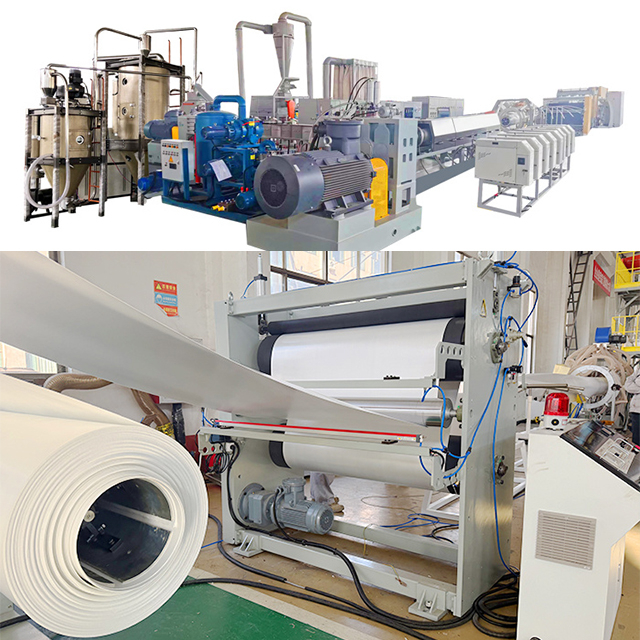

PET Foam Sheet Production Line

PET foam sheet (coil), using supercritical CO2 extrusion foaming process, PET foam molding mainly has the following advantages: good barrier to oxygen, carbon dioxide and water vapor, excellent wear resistance and surface retarding performance; Good thermal stability, mainly used in blister lunch box tableware, engineering plastics and other fields also have applications.
Availability:
Quantity:

Equipment parameter

Machine type TJ-PETF135/150 TJ-PETF75P/150
extruder
0135double/0150 075double/0150
Foaming ratio times 8-18 5-25
Product width mm 640-1200 640-1250
Product thickness mm 2.0-4.0 2.0-5.0
Production capacity (approx.) Kg/h 180-200 200-300
Installed capacity (approx) kw 180 350
Overall dimensions (approx.) m 28×9×3.2 31×9×3.2
Machine weight (approx.) t 18 20

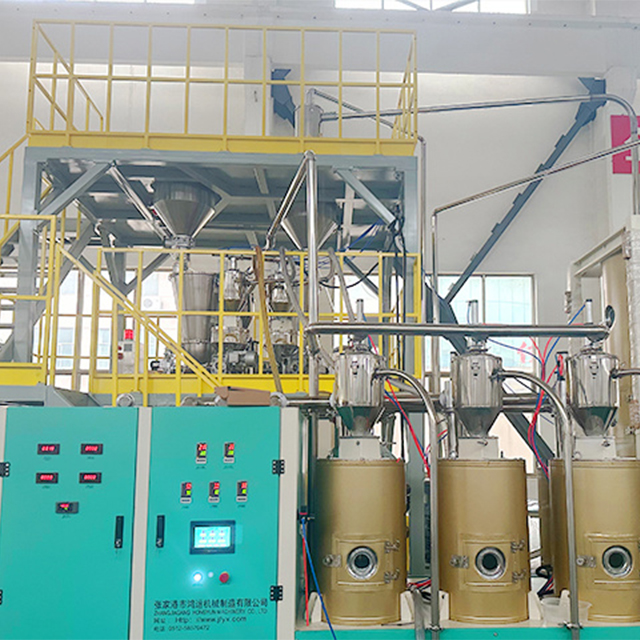

Equipment composition

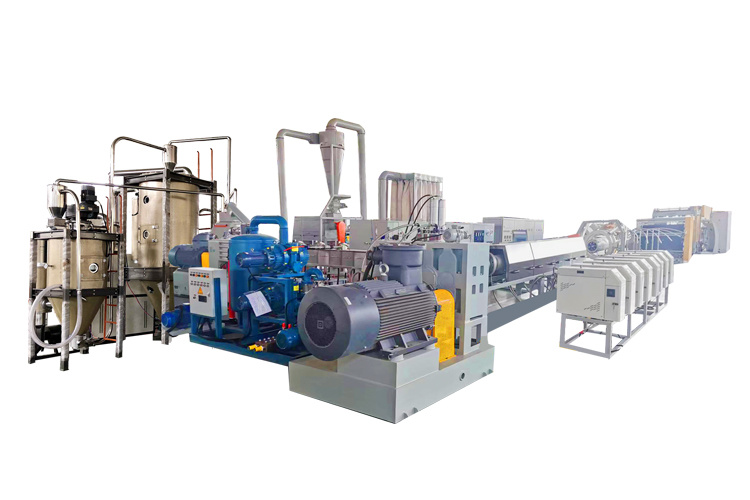

c80e285d-a7bc-4755-868f-ebc1f4b1c076

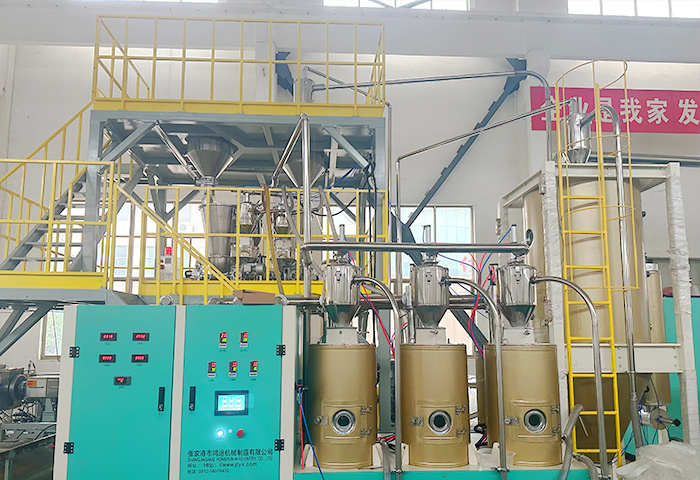

a9edfb32-0d22-45d2-a5ae-6bd618771c72

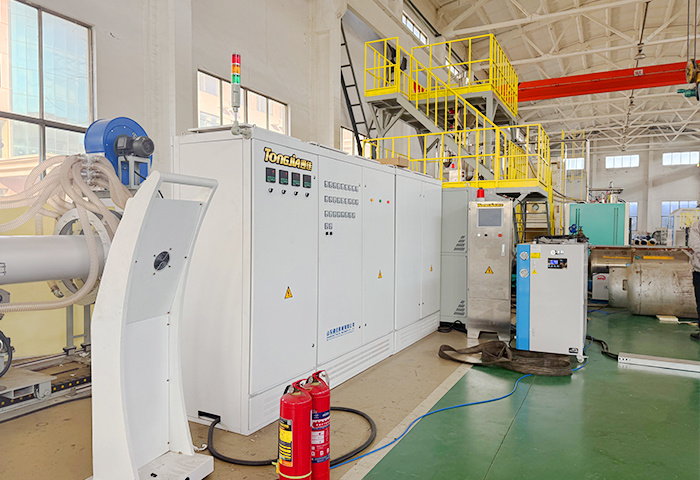

d54b42e4-efb6-46c3-893d-aa67f08e1f6c

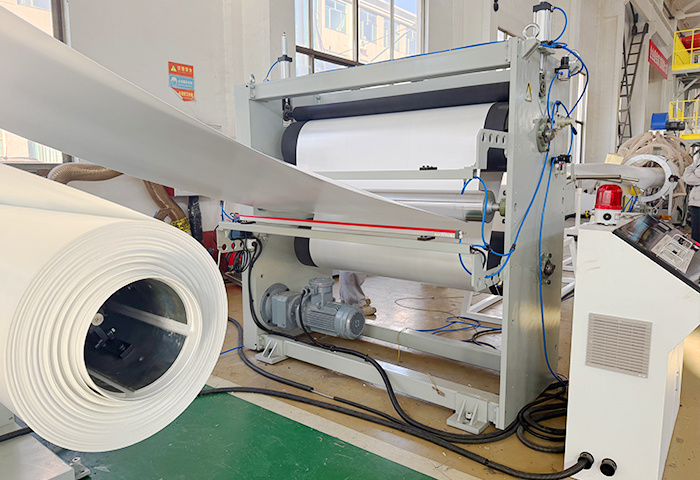

e7ebcf8c-abcf-4dba-ba5f-50806e80570b

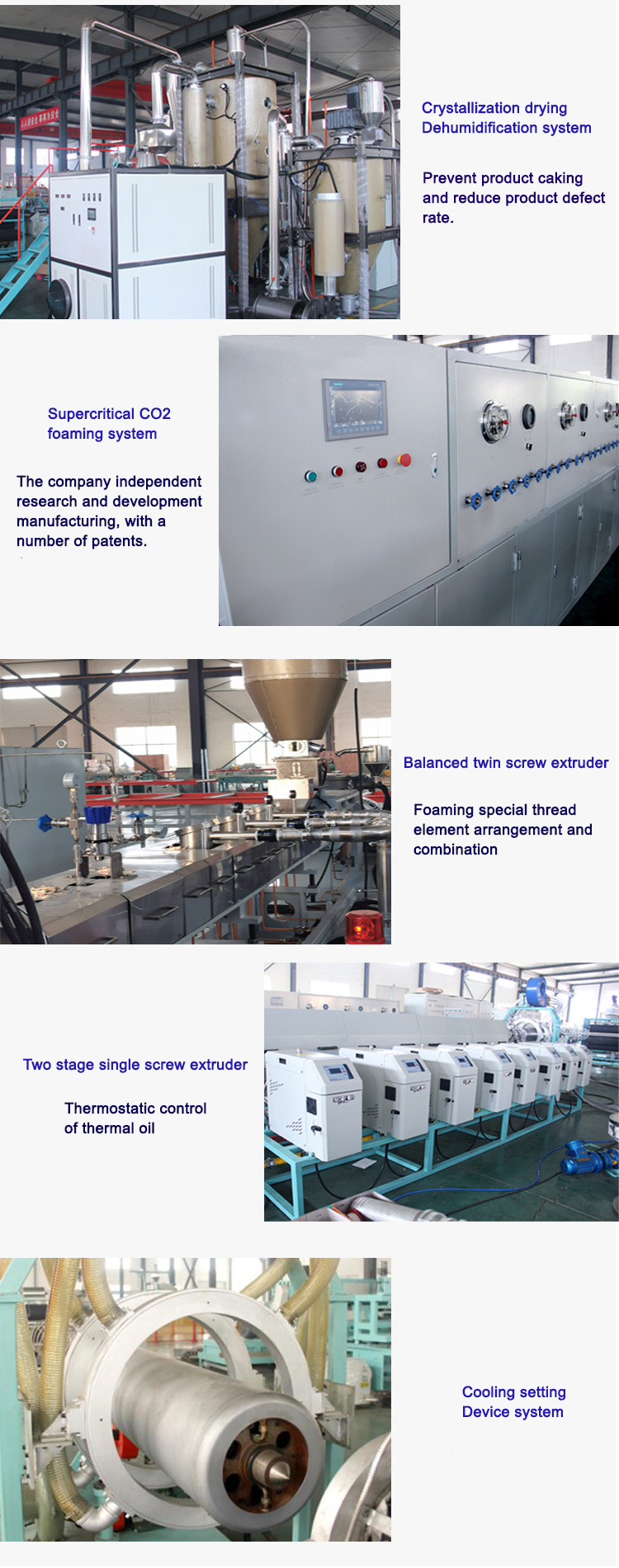

6ba4404e-953d-47db-b187-bad50bffa922
