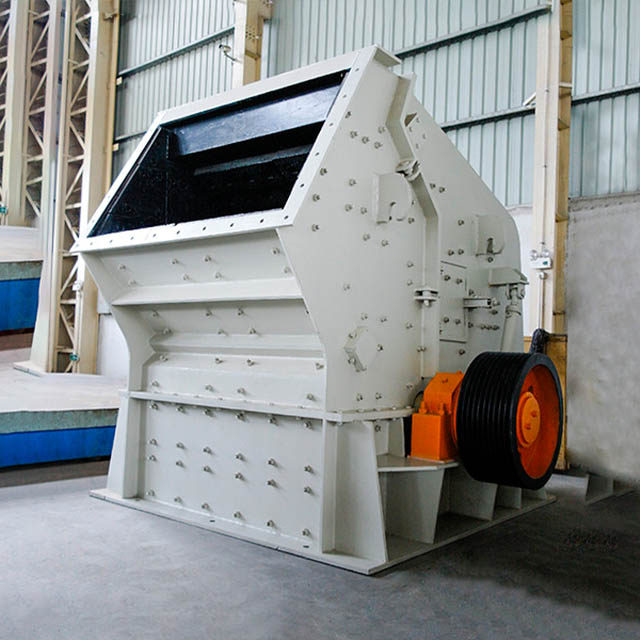

PF series impact crusher
The advantages of the impact crusher are high crushing efficiency, low power consumption, uniform product particle size, can reduce the number of crushing, simplify the production process, suitable for large and large-scale crushing production.
Capacity: 15-550t/h
Specification Model: PF0807-PF1520
Application: Used in metallurgy, building materials, mining, highway, mineral processing and other industries of bulk material crushing.
PF series impact crusher product introduction
PF series impact crusher is the use of impact energy against the compressive strength of no more than 350Mpa brittle materials for crushing equipment, with large crushing ratio, uniform product particle size and over crushing phenomenon, low energy consumption, product particle size adjustment range, selective crushing and other advantages, the medium hardness of the material for crushing and fine crushing operations.
Outstanding advantage
1, multi-cavity uniform crushing, suitable for crushing hard rock;
2, the whole plate structure makes the discharge more small particle size and cubic shape, no internal cracks;
3, low large feed port, easy to arrange the production line and increase the feed size;
4, hydraulic opening, easy maintenance and replacement of wearing parts.
5, the new wear-resistant material makes the plate hammer, counterattack plate and liner longer service life.

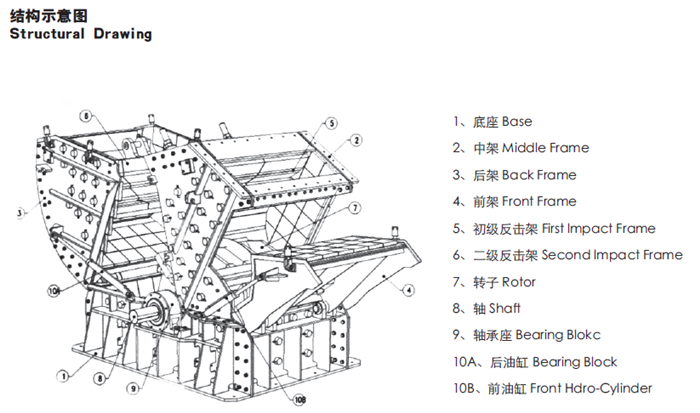

Working principle
Impact crusher is a crushing machine that uses impact energy to break materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the action zone of the plate hammer, it will impact and break with the plate hammer on the rotor, and then it will be thrown to the counter device to break again, and then bounce back from the counter liner to the plate hammer action zone to break again. This process is repeated, and the material will enter the first, second and third counter cavities from large to small to break again. Until the material is broken to the desired particle size, it is discharged through the discharge port.
1. Large feed port, high crushing chamber, high hardness of suitable materials, large block size and less stone powder.
2, the gap between the counter plate and the plate hammer can be easily adjusted, effectively control the discharge particle size and good particle shape.
3, compact structure, strong machine rigidity, rotor has a large moment of inertia.
4, high chromium plate hammer, anti-impact, anti-wear, large impact.
5, keyless connection, easy maintenance, economic and reliable.
6. Full crushing function, high productivity, small machine wear and high comprehensive benefit.
Technical parameter
Model number | Size (mm) | Feed port size (mm) | Feed size (mm) | Yield (t/h) | Power (kW) | Overall dimensions (mm) | Weight (t) |
PF-0807 | 0850×700 | 400×730 | 300 | 15-30 | 30-45 | 2210×1490×2670 | 8.1 |
PF-1007 | 01000×700 | 400×730 | 300 | 30-50 | 37-55 | 2400×1558×2660 | 9.5 |
PF-1010 | 01000×1050 | 400×1080 | 350 | 50-80 | 55-75 | 2400×2250×2620 | 12.2 |
PF-1210 | 01250×1050 | 400×1080 | 350 | 70-120 | 110-132 | 2690×2338×2890 | 14.9 |
PF-1214 | 01250×1400 | 400×1430 | 350 | 130-180 | 132-160 | 2690×2688×2890 | 18.6 |
PF-1310 | 01300×1050 | 490×1170 | 400 | 80-140 | 110-160 | 2780×2478×2855 | 16.2 |
PF-1315 | 01320×1500 | 860×1520 | 500 | 160-250 | 180-260 | 3096×3273×2667 | 19.3 |
PF-1415 | 01450×1500 | 1145×1520 | 950 | 220-450 | 220-315 | 3745×3022×3519 | 27 |
PF-1520 | 01520×2000 | 830×2050 | 700 | 300-550 | 315-440 | 3581×3560×3865 | 36.5 |
