PLA polylactic acid fully degradable foamed sheet production line

Share to:

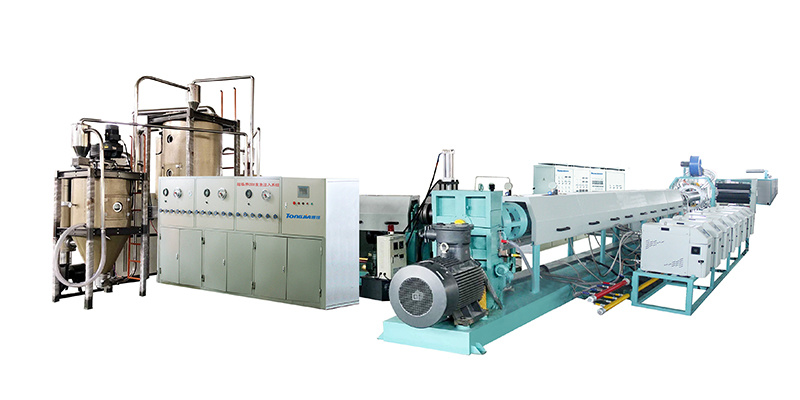

PLA polylactic acid fully degradable foamed sheet production line

The PLA polylactic acid fully degradable foamed board production line adopts a double-machine series high-foaming sheet production process, with environmentally friendly CO2 as the foaming agent. It is independently developed and manufactured by our company and holds multiple invention and innovation patents as well as utility model patents. Tongjia Machinery has currently developed a series of models for the production of PLA fully degradable foam sheet production equipment, including three specialized mechanical products: TJPLA65/90, TJPLA100/130, TJPLA135/150, and TJPLA75/150. The production capacity is 100kg to 300kg per hour, the width of the produced products is 600 to 1200mm, the thickness is 0.5 to 8mm, and the foaming ratio is 20 to 30 times.

Availability:

Quantity:



Inquire Add to Basket

Product Description

PLA polylactic acid fully degradable foamed sheet production line

Equipment parameter
Machine Type		TJ-PLA65/90	TJ-PLA100/130	TJ-PLA135/150	TJ-PLA75/150
Extruder		065/090	0100/0130	0135/0150	075双/0150
Foaming ratio	times	5-18	5-30	5-40	5-40
Product width	mm	300-640	640-1250	640-1250	640-1250
Sectioning method		Single and double cutter
Product thickness	mm	1.0-2	1.0-3.5	1.0-5.0	1.0-5.5
Cooling method		Cooled by wind and water
Production capacity (approximately)	Kg/h	60-80	150-200	180-300	250-400
Installed capacity (approximately)	kw	100	200	260	300
External dimensions (approximately)	m	20×8×2.8	23×9×3	25×10×3.2	25×9×3.2
Machine weight (approximately)	t	10	15	18	19
