POF Three-layer Co-extruded Heat Shrink Film Blowing Equipment

Share to:

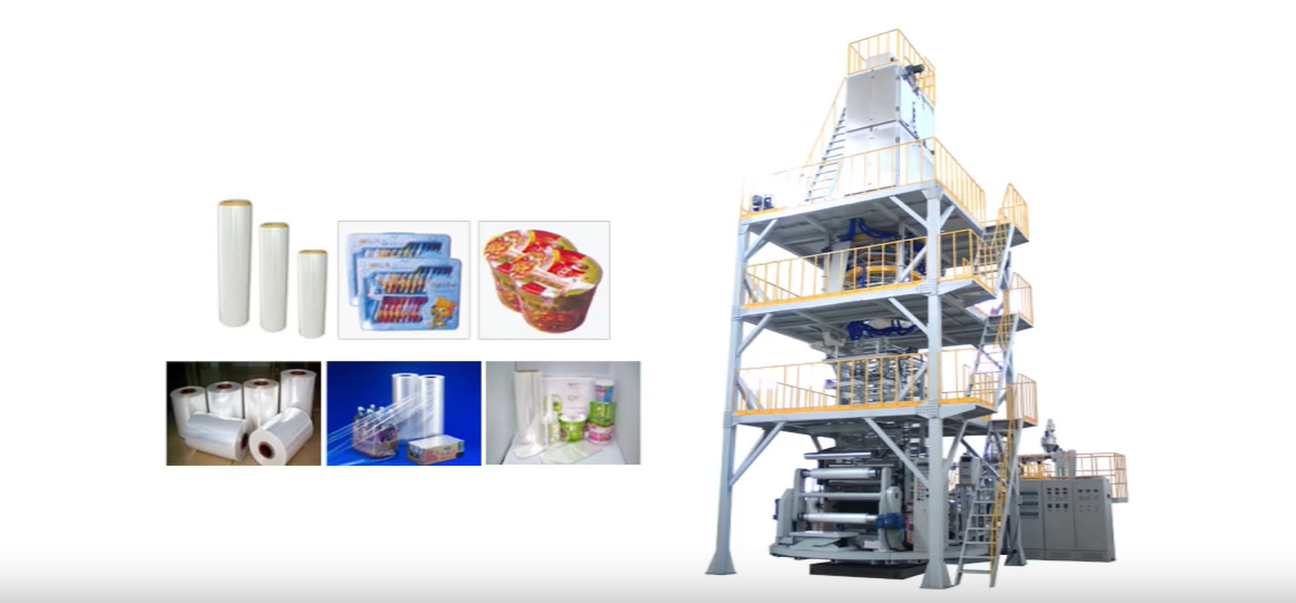

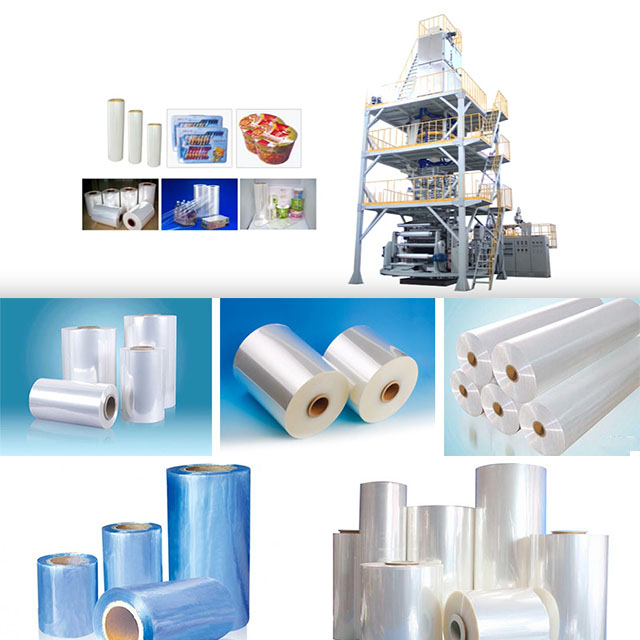

POF Three-layer Co-extruded Heat Shrink Film Blowing Equipment

This equipment is a double-bubble forming method polyolefin (POF) heat shrink film blowing unit independently improved and developed by our company after absorbing and digesting advanced technology. This equipment adopts a uniquely designed PP/PE/PP three-layer co-extrusion superimposed die head, an inner and outer cooling forming system for tube billets, a double-station central rotating winding system, automatic tension control, and a linear pressure regulating module for temperature control. This unit can be optionally equipped with an American NDC online automatic thickness gauge, a computer centralized control system, etc. This unit features low power consumption, high output, simple operation and convenient control. The POF shrink film produced here is characterized by high transparency, softness, low-temperature resistance, high shrinkage rate and uniform thickness

Availability:

Quantity:



Inquire Add to Basket

Product Description

Equipment parameters
Machine model	Unit	TJ-RSM5B1300	TJ-RSM5B1800	TJ-RSM5B2200
Applicable raw materials		PP/PE and Auxiliary materials	PP/PE and Auxiliary materials	PP/PE and Auxiliary materials
Film fold	mm	1200	1600	2000
Film thickness	mm	0.015-0.025	0.015-0.025	0.015-0.025
Output	kg/h	80-120	100-120	120-200
Diameters of the inner and outer layer screws	mm	845×2	055×2	865×2
Screw length-to-diameter ratio	L/D	30:01:00	30:01:00	30:01:00
The power of the inner and outer layer motors	KW	11×2	15×2	37×2
Heating power of the inner and outer layers	KW	10×2	12×2	17.5×2
Diameter of the screw in the middle layer	mm	865	880	890
Screw length-to-diameter ratio	L/D	30:01:00	30:01:00	30:01:00
Motor power in the middle layer	KW	37	45	55
Heating power of the middle layer	KW	16	25	32
Die head heating power	KW	30	35	38
Total installed power (approximately)	KW	160	190	290
Average energy consumption (approximately)	KW	90	100	160
External dimensions (approximately)	m	16×7.5×13.5	18×10×15	20×11×16
Machine weight (approximately)	T	28	38	55

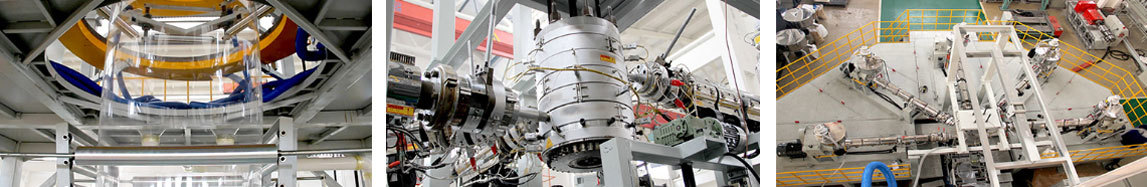

Equipment display

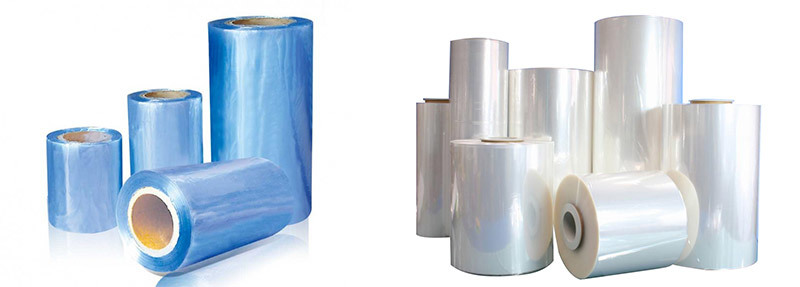

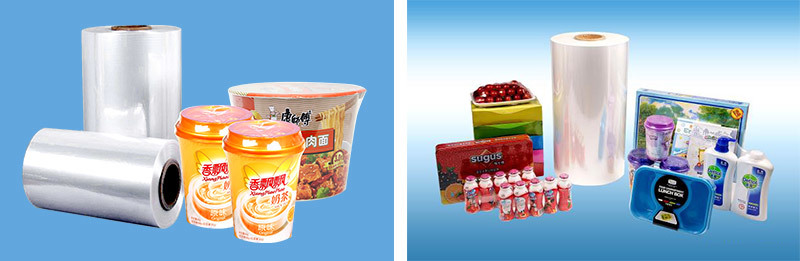

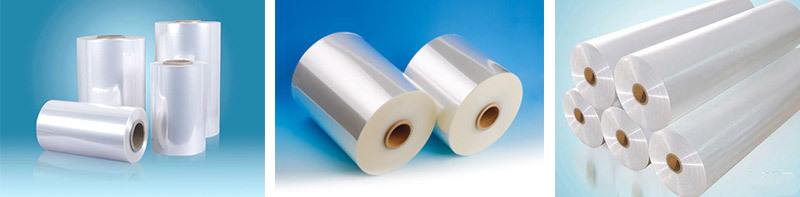

Product display
