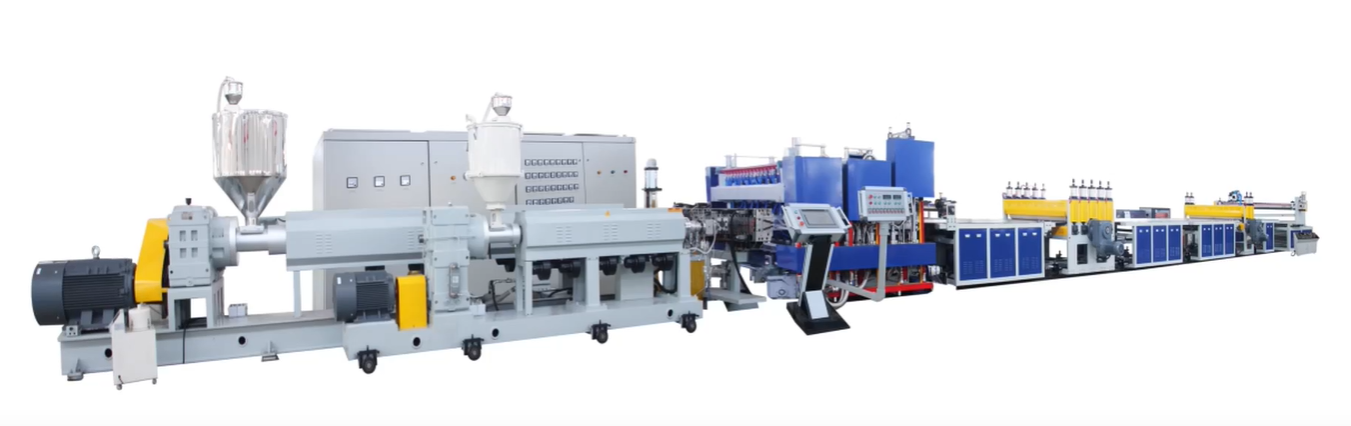

PP Hollow Building Formwork Equipment

The TJ-PPMB series of high-efficiency and high-filling dedicated extrusion equipment features stable performance, energy conservation and high efficiency. International advanced level CAD design software, 38CrMoAIA high-quality alloy steel with double-sided metal surface, professional and unique internal structure screw barrel. The reducer adopts a domestic well-known brand plastic machinery special reducer, and the gears are precisely ground and nitrized. The low-voltage electrical equipment adopts imported brands, with precise control and simple operation. It can also be equipped with high-end programmable computer control, making the entire line fully intelligent. The main unit's screw barrel is heated by a cast aluminum heater, cooled by air, and the temperature is controlled by a precise electrical control instrument. Three-section vacuum shaping table, equipped with advanced

Availability:

Quantity:



Inquire Add to Basket

Product Description

Equipment parameters

Technical parameters of PP hollow building formwork equipment
★The following data is for reference only. The specific content is subject to the purchase contract
Machine model		TJ-PPMB120		TJ-PPMB150
Product Specifications	mm	One out one	915*1830	One out two	915*1830
Screw diameter	mm	Ø120	Q65	Ø150	90
Length-to-diameter ratio		35:1	30:1	35:1	30:1
Drive motor	KW	130	37	160	45
Heating power	KW	50	18	60	25
Extrusion output	kg/h	300-400		500-600

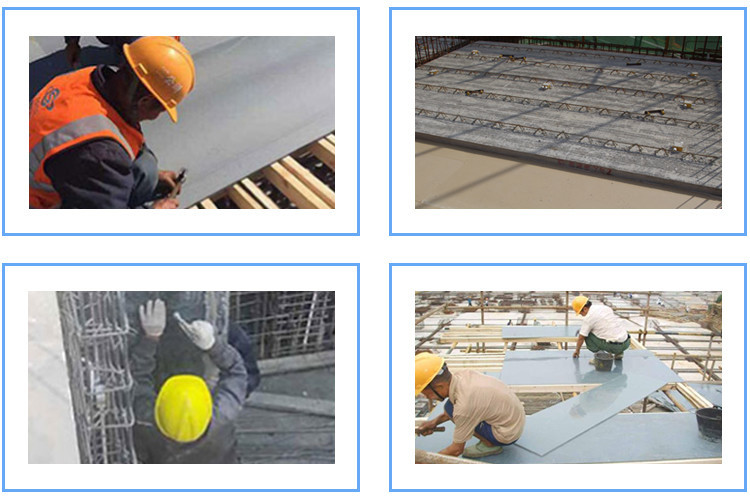

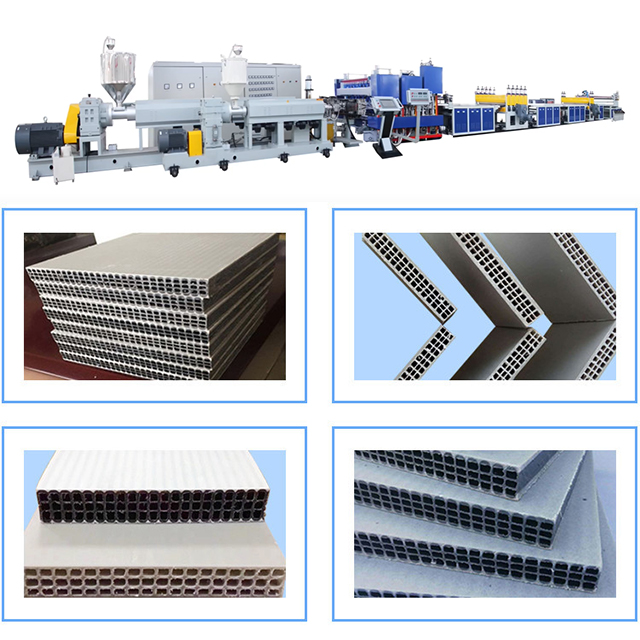

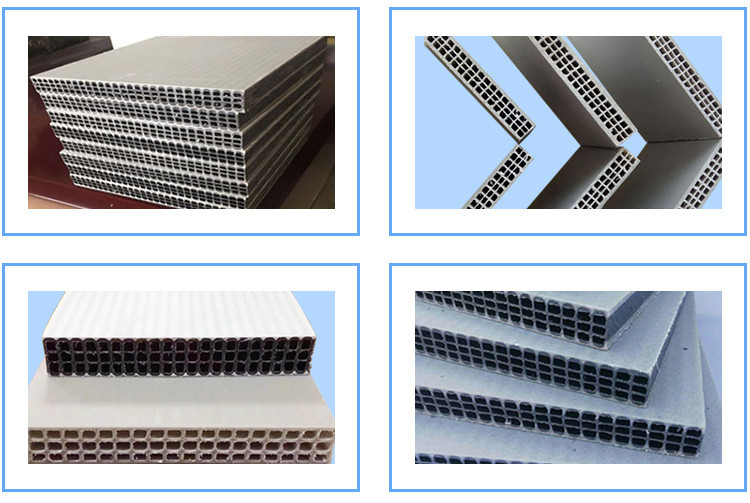

Equipment and product display

Environmentally friendly and harmless, with excellent comprehensive performance. It is made of polypropylene resin (PP particles) as raw material, using plastic instead of wood. The material is more environmentally friendly, odorless and harmless. No toxic or harmful substances are produced during the usage process.

The product can be nailed and riveted and has stable performance.

High strength, impact resistance, wear resistance, long service life, and the turnover usage times can reach more than 50 times.

It can be recycled and reused, which is of great significance to our natural resources and ecological environment.

9378a7c9-4220-48be-ab00-2fe5bf1e46fe

Product application

Transportation industry: ships, aircraft, buses, train carriages, ceilings, core layers of body bodies, interior decoration boards.

Construction and decoration industry: Exterior wall panels for buildings, interior decoration panels, building partitions for residences, offices, and public places, commercial decorative racks, panels for clean rooms, ceiling panels, kitchenware, sanitary ware.

Advertising industry: Screen printing, computer engraving, advertising signs, display boards, signboards.

Industrial applications: Anti-corrosion projects in the chemical industry, thermoformed parts, cold storage panels, special cold insulation projects, environmental protection panels.

Other uses: formwork, sports equipment, aquaculture materials, coastal moisture-proof facilities, water-resistant materials, various lightweight partitions for art materials.

0d9e42a0-766c-49d7-a38b-5e359fb304a9
