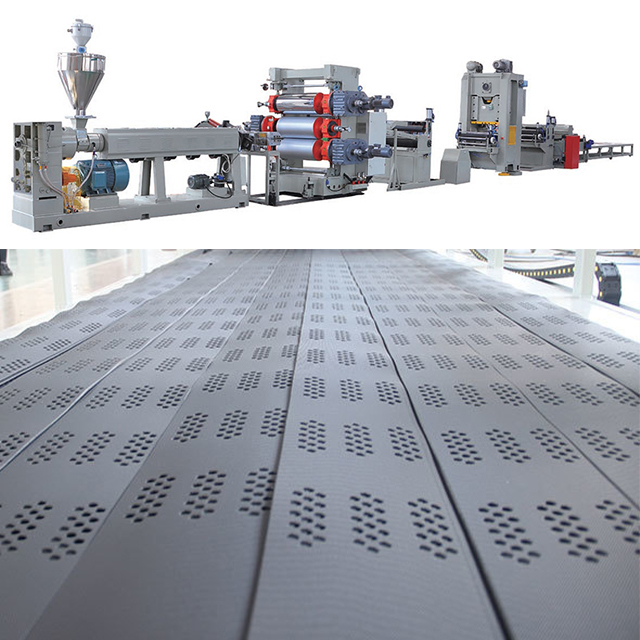

PP/PE Plastic Geocell Production Line

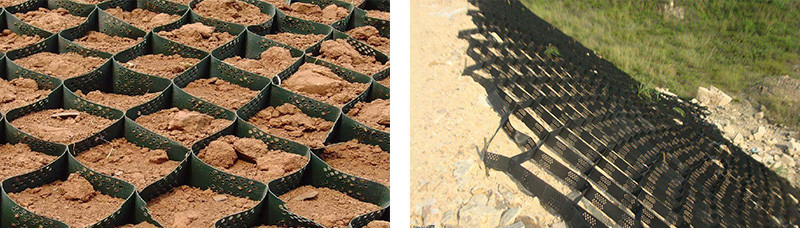

This production line is used for manufacturing geocells. This product is a kind of geotechnical product that is formed by connecting and expanding thermoplastic plastic sheets through ultrasonic welding and other methods, presenting a honeycomb-like three-dimensional style. The unique three-dimensional structure of geocells can form different cohesive forces, different tensile strengths, and different thicknesses of cushion layers with soil, sand, gravel and other fillers. It is widely used in reinforcing the subgrade of railways and highways, slope protection, Build earth-proof walls, etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Equipment parameters
Model		TJ-TGG120/33	TJ-TGG150/33	TJ-TGG180/33
Raw materials		PP/PE	PP/PE	PP/PE
Cell height	mm	50,75,100,150,20 0	50,75,100,150,20 0,300	50,75,100,150.20 0.300
Welding distance	mm	340-800	340-800	340-800
Sheet width	mm	1200	1500	2000
External dimensions (approximately)	m	28×5×3	30×7×3	35×9×3

Equipment display

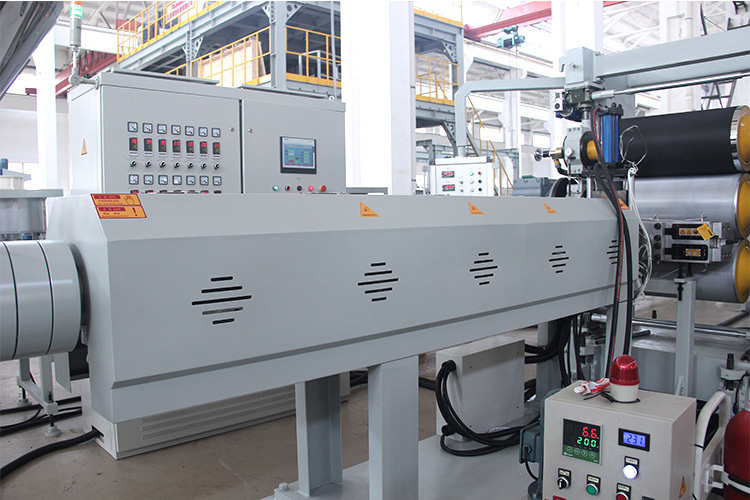

High-efficiency single-screw extruder

This extruder can continuously produce PP/PE thermoplastic plastics.

It features high output, low power consumption, precise temperature control and temperature protection function.

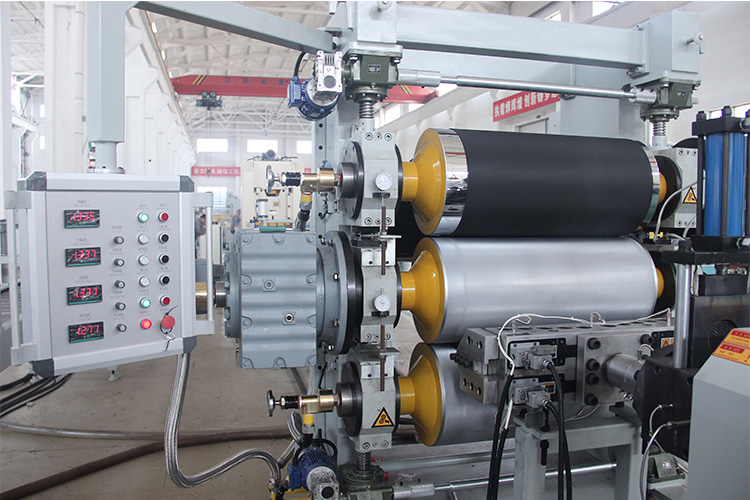

The large-diameter three-roll calendering machine adopts independent motor variable frequency speed regulation and reducer drive, with a digital dial indicator. The whole machine moves forward and backward with the motor and reducer.

The three rollers of large-diameter mirror surfaces are independently driven and can be speed-regulated synchronously.

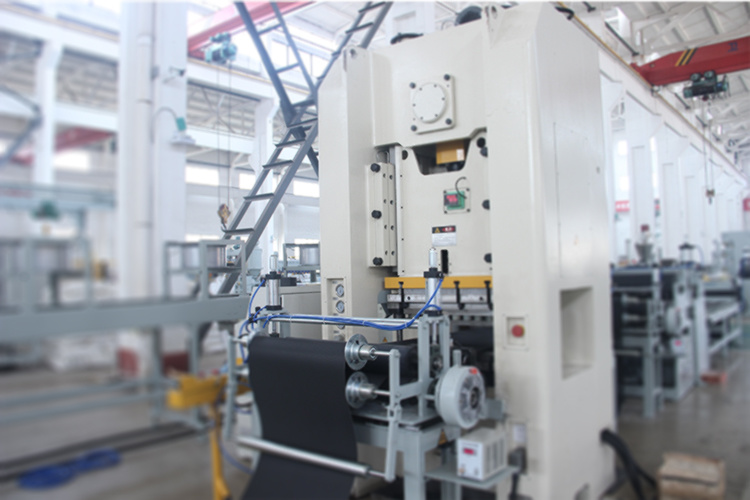

High-precision punching device, gantry-type closed double-point high-performance press.

The closed integral welded machine body eliminates the angular deformation phenomenon of the open press, improving the processing precision of the stamping parts and the service life of the die.

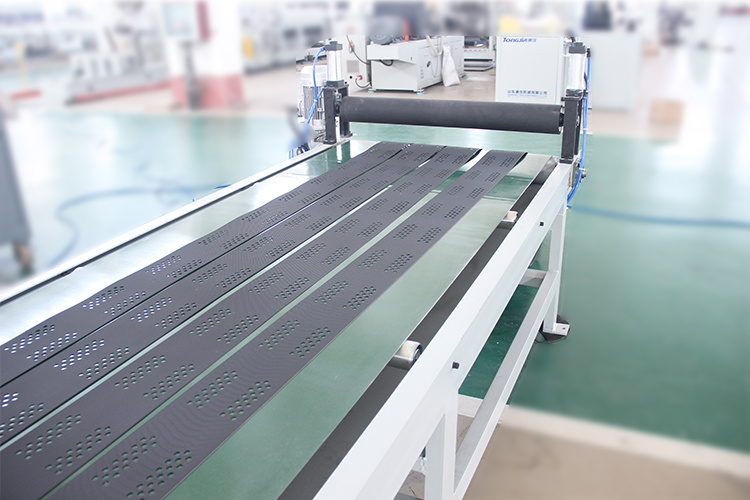

Automatic winding device

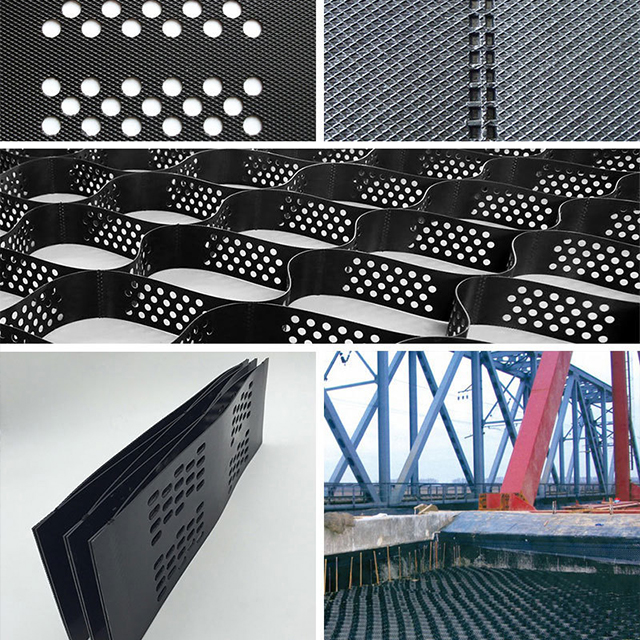

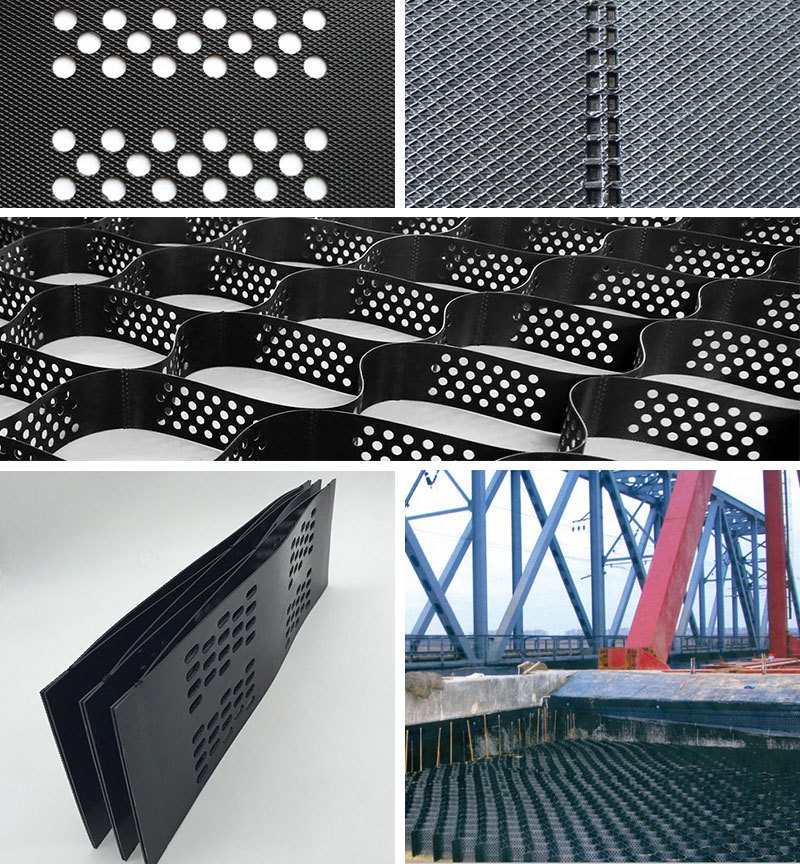

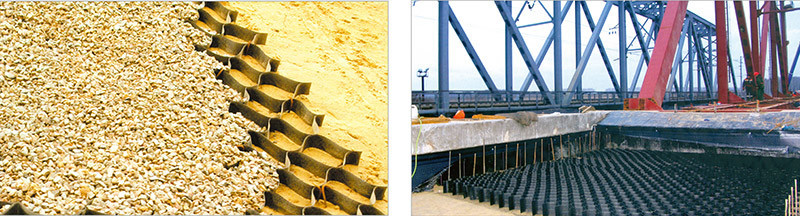

Product application
