PP/PE Three-layer Co-extruded Lithium Battery Separator Casting And Stretching Production Line

Share to:

PP/PE Three-layer Co-extruded Lithium Battery Separator Casting And Stretching Production Line

In the new process, the unwinding diameter can reach 1000mm (for four layers), and it can be increased to 32 layers. In the old process, the unwinding diameter was only 550mm (for four layers), and it could only be achieved with 20 layers.

Availability:

Quantity:



Inquire Add to Basket

Product Description

PP/PE three-layer co-extruded lithium battery separator castiPP/PE three-layer co-extruded lithium battery separator casting and stretching production lineng and stretching production line

Schematic diagram of the new dry-process lithium battery separator technology:

Regarding the new process for stretching lithium battery separators:

Key points of the new process:

The online heat treatment of the materials is carried out without the need for the oven step in the old process. After extrusion and compounding, it can directly enter the stretching machine.

Spool diameter:

In the new process, the spool diameter can reach 1000mm (for four layers), and it can be increased to 32 layers. In the old process, the spool diameter was only 550mm (for four layers), and it could only reach 20 layers.

Comparison Table of New and Old Processes：

	Oven pre-treatment	Unwinding diameter	Total number of floors	Spool length	Production line length	Product quality
Old process	Required	550	20	1 times	27 meters	Generally
New process	Not necessary.	1000	32	3.5 times	55 meters	High

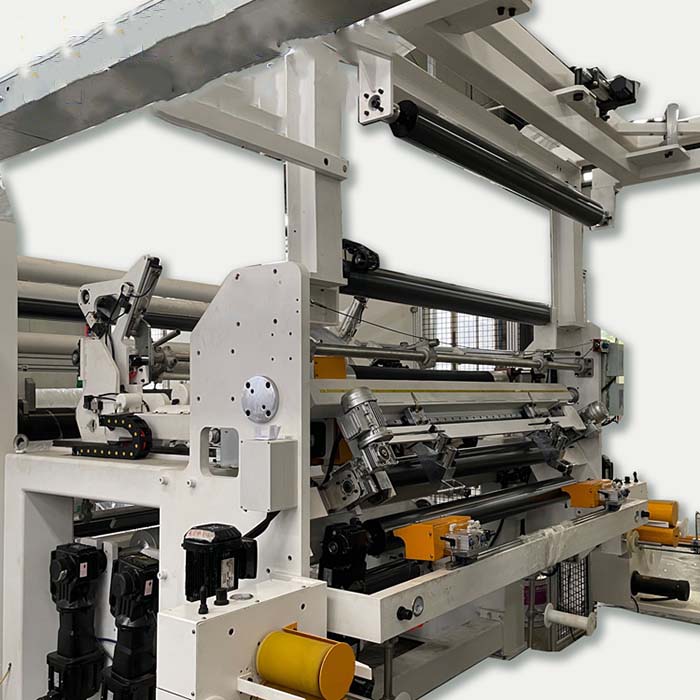

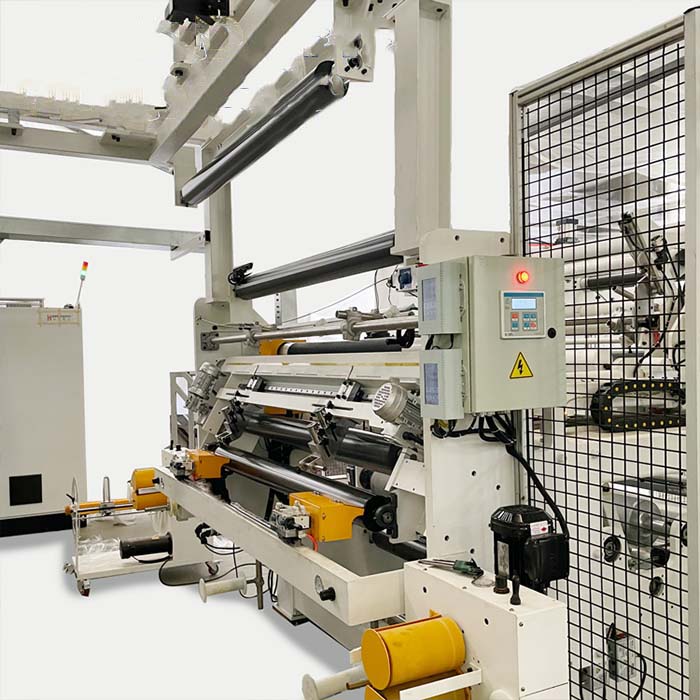

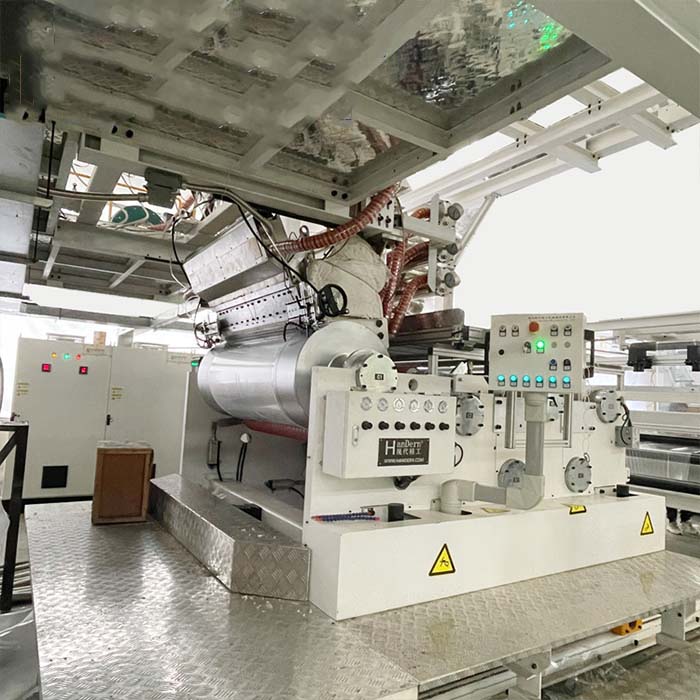

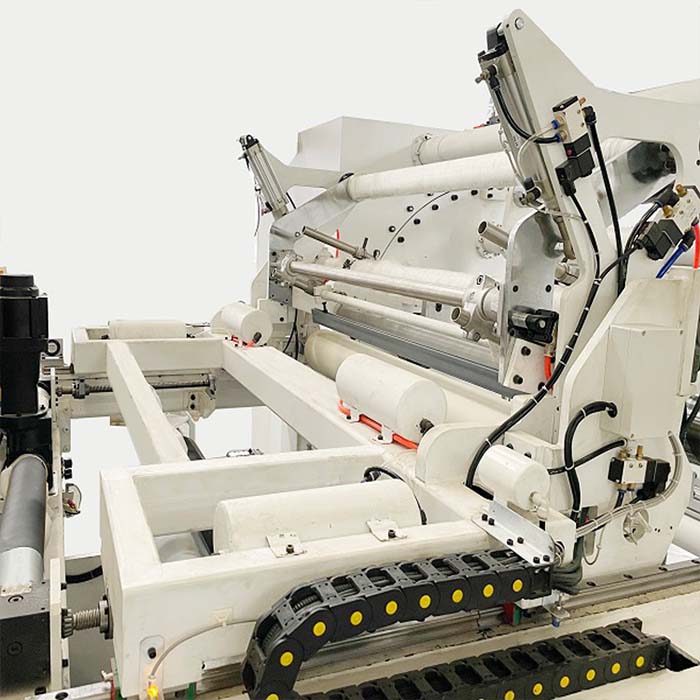

202508051454070191 202508051454135503 202508051454196753 202508051454258003
