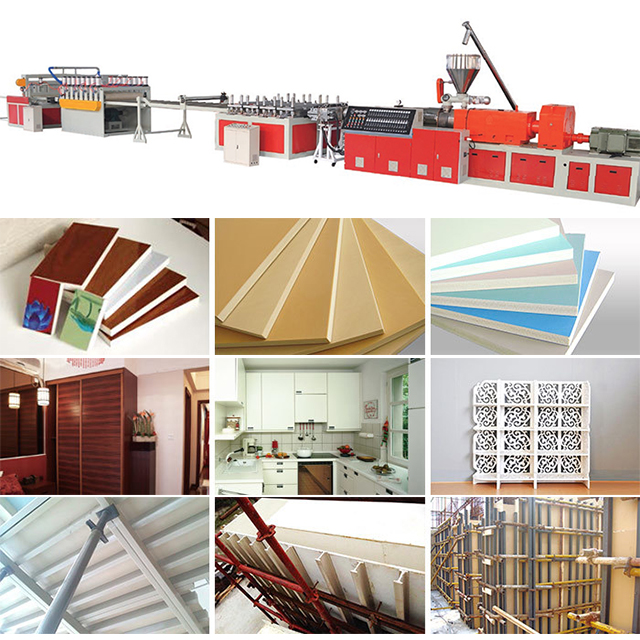

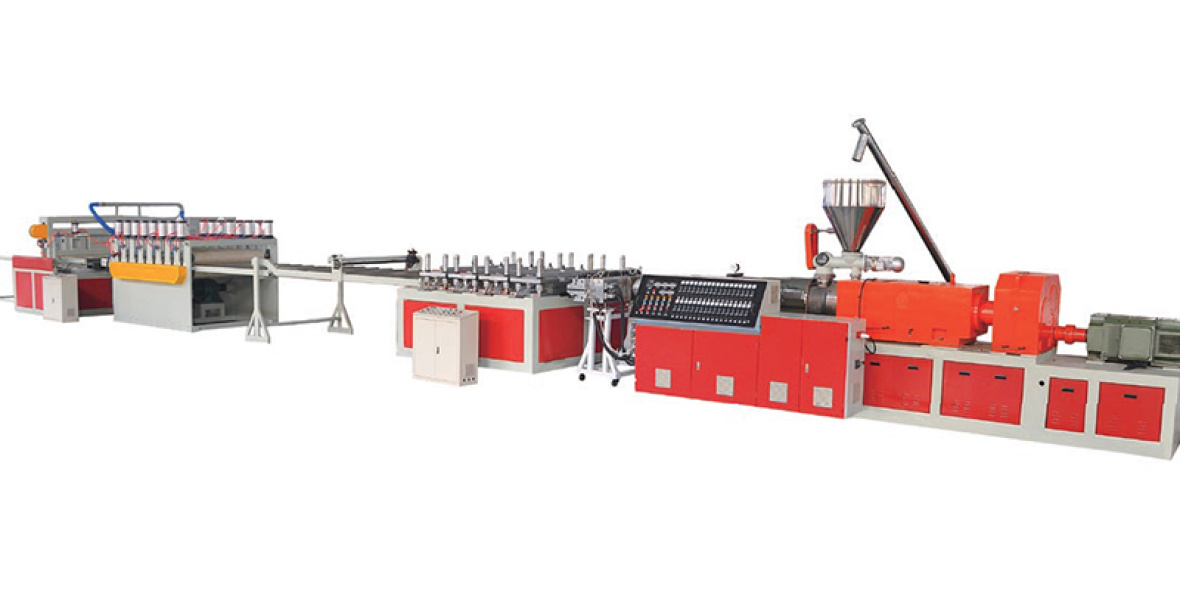

PVC Wood-plastic Building Formwork Production Line

Performance characteristics:

◆ The TJ-MSC series of special extrusion equipment for wood-plastic boards features stable performance, energy conservation and high efficiency.

◆ Made of 38CrMoALA high-quality alloy steel with a bimetallic coating on the surface. Screw barrel with special mixing function and high plasticizing capacity design.

◆ The cooling of the screw core adopts an oil constant temperature system with automatic temperature control to enable the material to reach a good plasticizing state. A vacuum exhaust type screw cylinder is used to fully evaporate the moisture in the material and ensure the product quality.

◆ It is driven by a DC motor with stable output and large torque, and is equipped with ABB or British Continental speed regulators. The extrusion output is large and the efficiency is high.

Main technical parameters
Model		TJ-MSC80/156
Screw diameter	mm	φ80/156
Number of screws	根	2
Rotational speed	r/min	1-38
Host power	KW	75
Heating power (approximately)	KW	36
Extrusion output	kg/h	150-350
Main technical parameters of the auxiliary machine
Model		BF600	BF1220
Product size	mm	600	1220
Traction height	mm	150	150
Traction force	kn	50	50
Traction speed	m/s	00-3	0-2.5
Total power of auxiliary machines	kw	35	40
Cooling water capacity	m3/h	9	12
