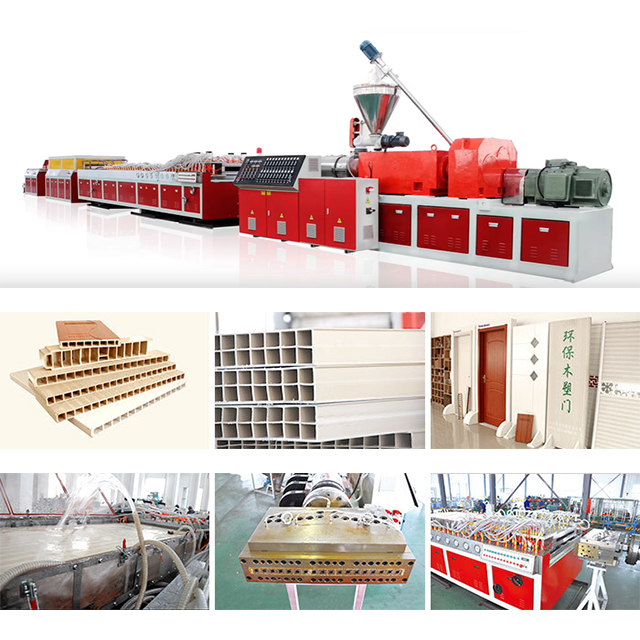

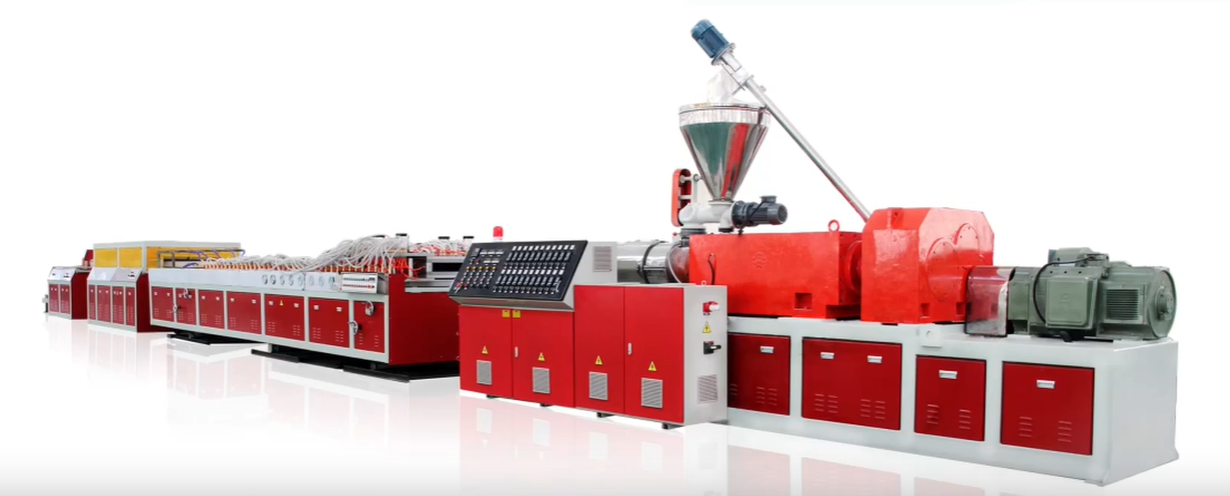

PVC Wood-plastic Composite Door Panel Production Line

This production line adopts new technology, thoroughly mixing plastics such as PVC, PP, PE, and PS with plant fibers. It uses high-efficiency conical twin-screw extrusion and is equipped with a forced cooling system for extrusion molding. The wood-plastic boards produced are environmentally friendly, moisture-proof, anti-corrosive, and do not deform. They are suitable for wood processing methods and can be recycled repeatedly. Performance features: ◆ The JG-MSB series of special extrusion equipment for wood-plastic boards is equipped with a DC motor drive with stable output and large torque, as well as American ETD or Parker speed regulators. It has stable performance, is energy-saving and highly efficient, and has a large extrusion output. The cooling of the screw core adopts an oil constant temperature system

Availability:

Quantity:



Inquire Add to Basket

Product Description

Equipment parameters

Performance characteristics:

◆ The TJ-MSB series of special extrusion equipment for wood-plastic boards is equipped with a DC motor drive with stable output and large torque, as well as American ETD or Parker speed regulators. It features stable performance, energy conservation and high efficiency, and a large extrusion output.

◆ The cooling of the screw core adopts an oil constant temperature system with automatic temperature control to enable the material to reach a good plasticizing state. A vacuum exhaust type screw barrel is used to fully evaporate the moisture in the material and ensure the product quality.

◆ Brand low-voltage electrical appliances, precise control and simple operation. It can also be equipped with high-end programmable computer control, making the entire line fully intelligent.

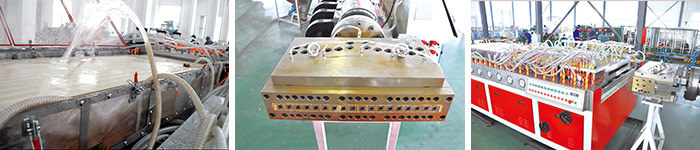

◆ Vacuum sizing table, with a specially designed cooling system for convenient product cooling and shaping.

Main technical parameters
Type		TJ-MSB80/156	TJ-MSX92/188
Screw diameter	mm	Φ80/156	φ92/188
Number of screws	pcs	2	2
Rotational speed	r/min	1-38	1-32.9
Host power	KW	55	110
Heating power (approximately)	KW	36	45
Extrusion output	kg/h	200-400	300-550
Main technical parameters of the auxiliary machine
Type		BF800	BF1000
Product size	mm	800	1000
Traction height	mm	150	150
Traction force	KN	50	50
Traction speed	m/s	00-3	0-2.5
Total power of auxiliary machines	KW	35	40
Cooling water capacity	m3/h	9	12
Compressed air pressure	Mpa	0.6	0.6

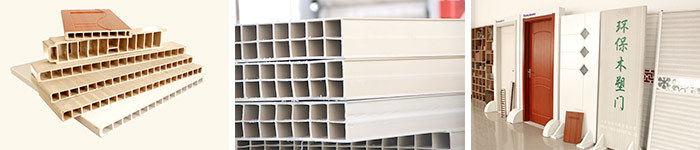

It is widely applied in wide door panels, partition boards, building formwork, container bottom plates, home decoration suite doors and other fields.
