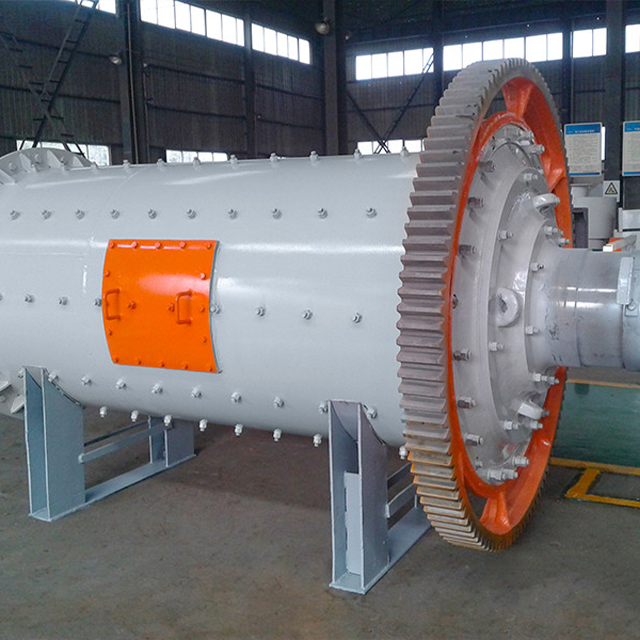

Rod Mill

The rod mill is a steel rod mill loaded in the cylinder. Rod mill is generally wet overflow type, widely used in artificial stone sand, concentrator, chemical plant power department.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Rod mill

Rod mill is a steel rod mill loaded in the cylinder body, generally using wet overflow type, but there are two series of dry and wet production, supporting the main motor power 22-1600kW, can meet the 0.62-250t/h range of various materials grinding needs.

Capacity: 0.62-250t/h

Model: φ0.9×1.8-φ3.6×5.4

Application: Widely used in artificial stone sand, concentrator, chemical plant power department

Rod mill product introduction

The rod mill is a steel rod mill loaded in the cylinder. Rod mill is generally wet overflow type, widely used in artificial stone sand, concentrator, chemical plant power department.

Outstanding advantage

1, the characteristics of the rod mill is that in the grinding process, the grinding medium and the ore are in line contact, so it has a selective grinding effect;

2, the product particle size is more uniform, less over crushed ore;

3, when used for rough grinding, the processing capacity of the rod mill is greater than that of the ball mill of the same specification, and vice versa;

4, stable operation, energy saving, high output.

Working principle

The principle of rod mill and ball mill is basically the same, but the grinding medium is different. The rod mill takes the steel rod and part of the material to the bottom of the bin by rotating the barrel, while the ball mill takes the steel ball or steel section and part of the material to the bottom of the bin by rotating the barrel to smash the material.

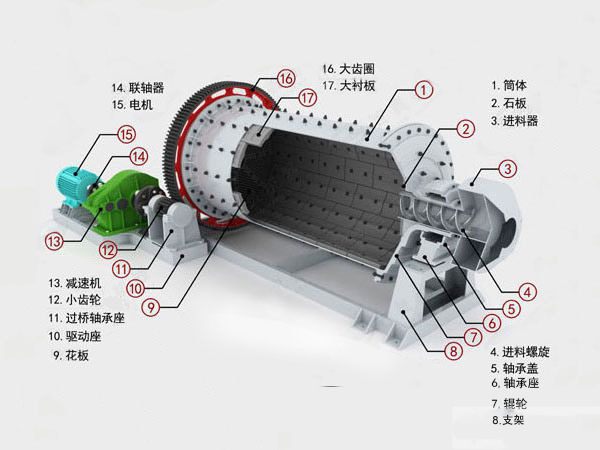

Rod mill structure drawing

Technical parameter

Model number	Cylinder diameter (mm)	Barrel length (mm)	Motor type	Motor power (kW)	Motor revolution (r/min)	L (mm)	W (mm)	H (mm)	Processing capacity (t/h)	Effective volume (m³)	Weight (kg)
MBY0918	900	1800	Y225M-8	22	730	4980	2370	2020	0.62~3.2	0.9	5700
MBY0924	900	2400	Y250M-8	30	730	5670	3280	2020	0.81~4.3	1.2	5880
MBY1224	1200	2400	Y280M-8	45	730	6450	2800	2500	0.4~4.9	2.28	12308
MBYg1530	1500	3000	JR117-8	80	725	7253	3070	2280	2.4~7.5	5	21210
MBYg2130	2100	3000	JR136-8	180	735	8122	4220	3073	14~35	9	42123.5
MBYg2136	2100	3600	JR137-8	210	735	8958	4320	3025	43~61	10.8	45800.5
MBYg2736	2700	3600	JR158-8	380	743	10764	5750	3620	32~86	17.7	90441
MBY2740	2700	4000	TDMK400-32	400	187.5	12300	5700	4700	43~110	20.4	75000
MBY3040	3000	4000	JR1510-8	570	740	9800	3900	3900	54~135	26	90000
MBY3245	3200	4500	TDMK800-36	800	167	14600	7000	5300	64~180	31	113000
MBY3645	3600	4500	TDMK1250-40	1250	150	15200	8800	6800	80~230	41.8	139000
MBY3654	3600	5400	TDMK1600-40	1600	150	15900	8800	6800	100~250	49.7	150000
