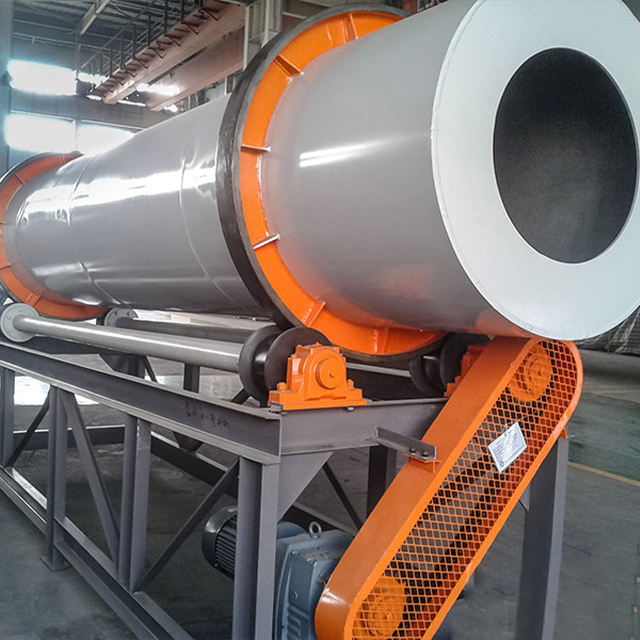

Roller granulator
The cylinder size of our drum granulator Φ1x6m-Φ2.0x20m, speed 3-5 (r/min), slope 3-3.5 (%), supporting motor power 5.5-30kW.
Model: Φ1x6-Φ2.0x20
Application: building materials, mining, metallurgy, chemical and other industries.
Roller granulator product introduction
The drum granulator is a granulation equipment that rotates the mixed material through the drum and completes the granulation. Cylinder granulator is widely used in building materials, mining, metallurgy, chemical industry and other industries.
Outstanding advantage
The granulator has the advantages of high production efficiency, high yield, simple structure, robustness and durability, convenient operation and maintenance, etc.
Working principle
Drum pelletizing machine is a kind of pelletizing equipment that makes the mixture into particles by rotating the cylinder. It is widely used in building materials, metallurgy, chemical industry and other industries. The drum granulator is composed of a frame, a barrel, a transmission device, a retaining wheel and a connecting shaft. When working, the gear motor drives the sprocket to drive the retaining wheel to rotate, and the retaining wheel drives the cylinder with a certain inclination Angle to rotate at a low speed under the action of friction force and centrifugal force. Under the action of friction force and centrifugal force, the mixture rises to a certain height with the cylinder wall, and then rolls down under the action of gravity, and the rolling material and the rising material produce relative motion and roll into a ball. The material ball moves from the high end to the low end along the direction of the cylinder axis while rolling in the circumference, so that the finished particles are discharged from the low end.
Technical parameter
| Specification and model | barrel | Motor power (kW) | Overall dimensions (mm) | ||
| Volume (m³) | Speed (r/min) | Slope (%) | |||
| φ1×6 | 4.71 | 5 | 3.5 | 5.5 | 6000×1358×2535 |
| Φ1×15 | 11.76 | 5 | 3.5 | 7.5 | 15000×1358×2535 |
| Φ1.2×15 | 16.96 | 5 | 3.5 | 15 | 15000×1558×2735 |
| Φ1.2×20 | 22.61 | 5 | 3.5 | 15 | 20000×1558×2735 |
| φ1.5×10 | 20.99 | 5 | 3.5 | 15 | 10000×1858×3035 |
| φ1.5×14 | 24.73 | 5 | 3.5 | 15 | 14000×1858×3035 |
| φ1.5×18 | 31.8 | 5 | 3.5 | 18.5 | 18000×1858×3035 |
| φ1.8×16 | 40.69 | 3~5 | 3.5 | 22 | 16000×2158×3335 |
| Φ1.8×20 | 50.87 | 3~5 | 3.5 | 22 | 20000×2158×3335 |
| φ2.0×16 | 50.24 | 3~5 | 3 | 22 | 16000×3340×3420 |
| φ2.0×20 | 62.8 | 3~5 | 3 | 30 | 20000×3340×3420 |
