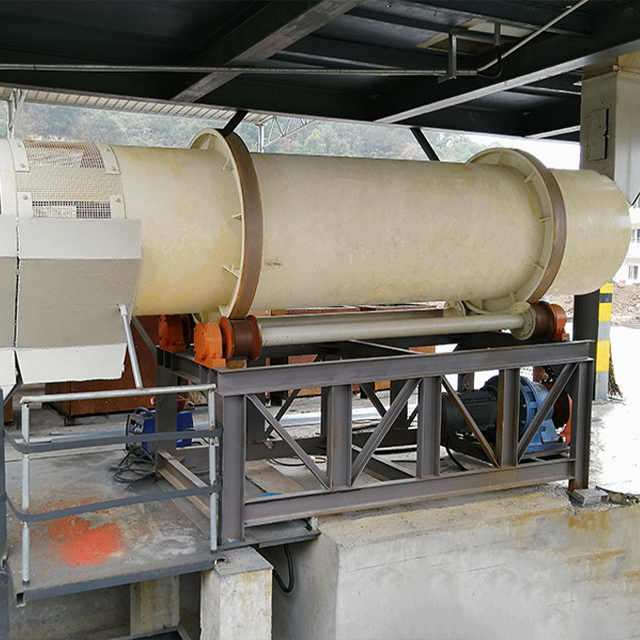

Shaping machine (secondary granulator)
Product introduction: Our shaping machine (secondary granulator) has four kinds of products according to its rolling diameter car length, the specification model is φ1.0x4.5-φ2.8x8.0, the roller slope is 3.5%, the speed is 7-13r/min, the installed power is 5.5-17KW.
Production capacity: 3-50 (t/h)
Specification Model: φ1.0x4.5-φ2.8x8.0
Materials: sludge, clay ceramide, etc
Application: It can be widely used in sludge ceramide, clay ceramide, shale sludge ceramide and other industries.
Shaping machine (secondary granulator) product introduction
Shaping machine (secondary granulator) is the first kind of secondary granulation equipment that will round and screen burr and debris from the raw material ball produced by the roller granulator. It is mainly composed of transmission device, support device, drum, screen, etc., and has the characteristics of smooth operation, low noise, high efficiency, reliable performance, convenient maintenance and so on.
Outstanding advantage
1, the equipment structure is simple, easy to operate;
2, the screen design is easy to replace, easy to maintain;
3, high degree of automation, high production efficiency, large processing capacity.
Working principle
The raw material ball from the roll granulation mechanism is fed into the feed inlet of the shaper. The material moves axially and radially along the wall of the cylinder in the shaper drum. The material is gradually rounded by the radial force of the drum in the cylinder, and the excess burrs are separated.
Technical parameter
| Specification and model | barrel | Slope (%) | Motor power (kW) | Overall dimensions (mm) | |
| Volume (m3) | Speed (r/min) | ||||
| Φ1.0×4.5 | 2.9 | 13 | 3.5 | 5.5 | 4500×1358×2535 |
| φ1.0×6.0 | 4 | 13 | 3.5 | 7.5 | 5992×1976×2568 |
| φ1.2×4.5 | 4.3 | 12 | 3.5 | 7.5 | 5095×2180×2545 |
| φ1.6×6.0 | 10.4 | 10 | 3.5 | 11 | 6100×3200×3200 |
| φ2.8×8.0 | 43 | 7 | 3.5 | 37 | 8200×3700×4100 |
