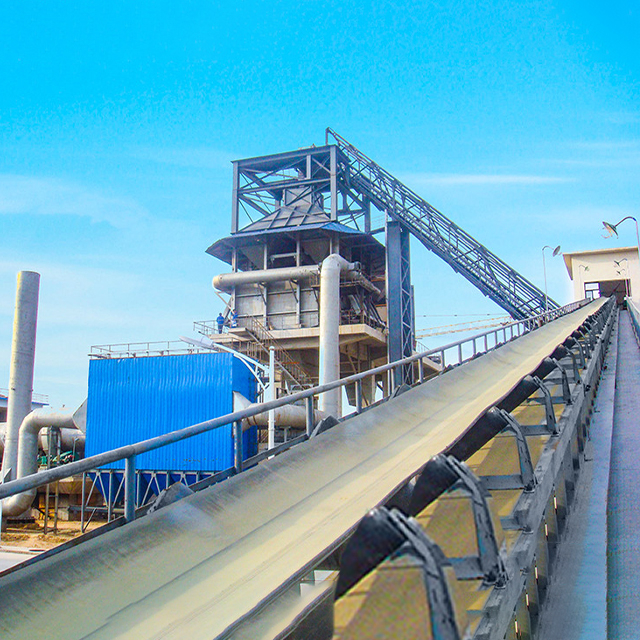

TD belt conveyor
Product introduction: Our TD belt conveyor conveyor belt width between 500mm-1000mm, transport Angle 0-20°, transport distance 2-240m, can meet the 40-1233t/h range of a variety of materials in different amounts of transportation needs.
Throughput: 40-1233t/h
Specification Model: TD500-TD1000
Conveying length: 2-240m
Application: Widely used in metallurgy, coal, transportation, electric power, building materials, chemical and machinery industries.
TD belt conveyor product introduction
TD75 belt conveyor due to large throughput, simple structure, easy maintenance, strong versatility and other characteristics, the conveyor's working environment temperature is generally between -25℃ ~ 40℃, the material temperature is generally not more than 50℃, such as the use of heat-resistant rubber belt can transport high temperature materials below 120℃; When conveying materials containing acid, alkali, oil substances and organic solvents, it is necessary to use rubber or plastic belts that are resistant to oil and acid and alkali.
Outstanding advantage
1, the conveying capacity is strong, the conveying distance is far, and the operation is reliable, easy to achieve automation and centralized control;
2, the structure is relatively simple, easy to maintain, the main parts of the interchangeability and versatility;
3, the conveying is stable and reliable, the material has no relative movement with the conveyor belt, which can avoid the damage to the conveying material;
4, according to different transport processes and working environment, customized heat, cold, waterproof, anti-corrosion, explosion-proof, flame retardant and other special requirements of the equipment.
Working principle
The traction and bearing components of the TD75 belt conveyor are a ring rubber conveyor belt, and the tape is around the transmission drum and the reversing drum at both ends of the frame, thus forming a closed circulation loop. When the transmission device drives the transmission drum to rotate, the friction between the transmission drum and the belt drives the belt to run. After the material to be transported is added to the rubber belt through the guide trough, it is transported to the discharge device at the head with the movement of the tape, and the material is unloaded through the discharge port.
Technical parameter
Specification and model | Transport tape | Delivery length (m) | Driving drum diameter (mm) | Feed size (mm) | Transport capacity (m³/h) | Power (kW) | ||
Width (mm) | Speed (m/s) | Inclination (°) | ||||||
DTⅡ-500 | 500 | 0.8~2.5 | 10~ 20 | 2~240 | 400、500、630 | 100 | 69~217 | 1.5~30 |
DTⅡ-650 | 650 | 0.8~2.5 | 10~ 20 | 2~240 | 400、500、630 | 150 | 127~397 | 1.5~45 |
DTⅡ-800 | 800 | 0.8~ 3.15 | 10~ 20 | 2~240 | 400、500、630 | 200 | 198~781 | 2.2~75 |
DTⅡ-1000 | 1000 | 0.8~ 3.15 | 10~ 20 | 2~240 | 500、630、800 | 300 | 324~1622 | 7~100 |
