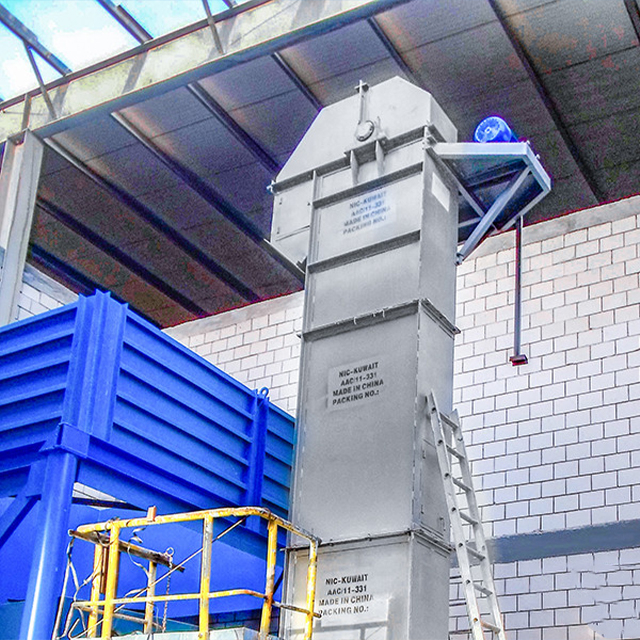

TD tape bucket elevator
TD bucket elevator is a belt elevator, the company's products according to the width of the bucket can be divided into four models: TD160, TD250, TD315, TD400, can use deep bucket shallow bucket to meet different production needs, material handling capacity of up to 68m³/h, lifting height of 3.4 ~ 39.28m.
Transport capacity: 9-68m³/h
Model: TD160-TD400
Application: chemical industry, metallurgy, building materials, mining and other industries.
TD tape bucket elevator product introduction
TD bucket elevator adopts rubber belt as traction component, mainly used for vertical transport of loose density ρ < 1.5t/m³ powder, granular, small block no grinding, small grinding material, the temperature of the material transported by ordinary rubber belt does not exceed 60℃, the temperature of the steel tape can reach 80℃, and the temperature of the heat-resistant rubber belt material generally does not exceed 150℃. The lifting height is generally 3.4 ~ 39.28m.
Outstanding advantage
1, the use of inflow feeding, mixing or centrifugal discharge, and the hopper is a large capacity intensive arrangement, there is basically no material return and digging phenomenon when the material is lifted, the waste loss is small, the driving power is relatively small;
2, a wide range of lifting, the type of materials, characteristics of less requirements, can be widely used to lift general powder, small granular materials;
3, according to the material characteristics and upgrading requirements, flexible selection of mixed, centrifugal and other discharge methods;
4, conveying materials in a closed space, and in the shell, access door are provided with a sealing device, no dust leakage, clean, environmental protection.
Working principle
The traction part of the TD bucket elevator is a rubber belt, and the hopper is fixed on the rubber belt at a certain interval. The rubber belt goes around the drum at the bottom and the head of the lifting machine respectively to form a closed ring system with rising loaded branches and falling unloaded branches; When working, the driving device arranged in the head of the lifting machine transmits power to the rubber belt and the hopper through the head drum, and the material enters the hopper from the feed port at the bottom of the lifting machine, and the hopper lifts the material to the discharge port at the head. Under the combined action of centrifugal force and gravity, the material in the hopper is discharged through the discharge port.
Technical parameter
TYPE | Transport capacity (m³/h) | hopper | Drive shaft speed | Conveying material lumpiness | Lifting height | ||||||
capacity | Pitch of buckets | Bucket width | Operating speed | ||||||||
Deep bucket | Shallow bucket | Deep bucket | Shallow bucket | (mm) | (mm) | (m/s) | (r/min) | (mm) | (m) | ||
TD160 | Tape type | 16.00 | 9.0 | 1.20 | 0.49 | 350/280 | 160 | 1.40 | 67 | 25 | 4.28~39.28 |
TD250 | Tape type | 38.00 | 20.00 | 3.00 | 1.12 | 450/360 | 250 | 1.60 | 61 | 35 | 3.84~38.94 |
TD315 | Tape type | 42.00 | 28.00 | 3.75 | 1.95 | 500/400 | 315 | 1.60 | 61 | 45 | 4.298~38.798 |
TD400 | Tape type | 68.00 | 40.00 | 5.90 | 3.10 | 560/480 | 400 | 1.80 | 55 | 55 | 3.4-38.68 |
Note: The volume of the hopper in the table is the volume when the hopper is filled with water, which is similar to the actual filling amount, so the filling coefficient is not considered in the calculation formula of conveying volume. The filling coefficient should be determined according to the material particle size in the specific selection, so as to correct the conveying amount in this table. |
