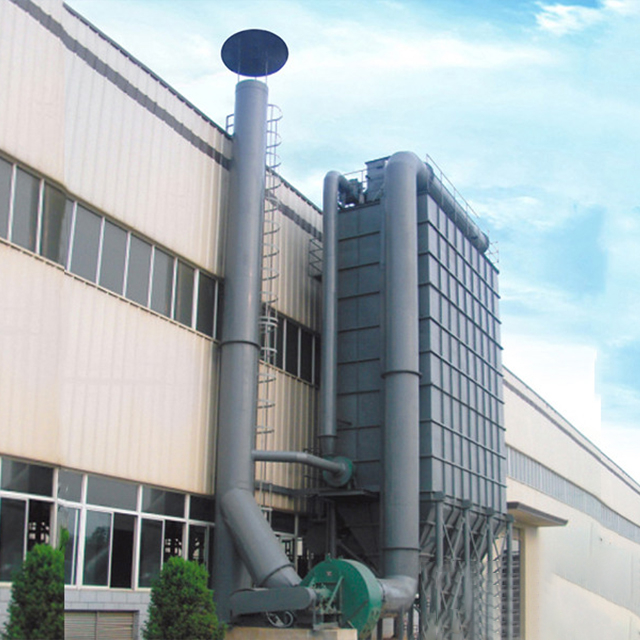

TFC, GFC Reverse Air Bag Dust Collector

TFC, GFC reverse air bag dust collector

Product introduction: TFC, GFC series reverse blowing bag dust collector is a chamber circulation reverse blowing dust, down air, internal rate type dust collector, suitable for metallurgy, chemical industry, building materials, electricity, grain processing, machinery and other departments and industrial kiln or boiler, high dust removal efficiency.

Handling air volume: 29880-720000m ³/h

Application: metallurgy, chemical industry, building materials, electric power, grain processing, machinery and other industries

TFC, GFC reverse air bag dust collector product introduction

Our TFC, GFC series reverse air bag dust collector is divided into positive pressure type and negative pressure type, positive pressure type has ten products, negative pressure type has twenty * products, filtering custom is less than 1m/s, handling air volume 29880-720000m3 /h, resistance is less than 1800Pa, TFC (positive pressure) series is suitable for large and medium-sized dust removal, GFC (negative pressure) series is suitable for small and medium-sized dust removal.

Outstanding advantage

1, In the case of a small footprint, can handle large air volume;

2, The use of internal filter dust, dust are gathered on the inner surface of the filter bag, the working conditions of maintenance personnel are greatly improved;

3, The use of division structure, can be in the case of non-stop maintenance, inspection;

4. Equipped with advanced ash cleaning electronic control system, with automatic control and monitoring functions;

Working principle

The dust-containing gas enters the upper box by the air inlet, filtered by the filter bag, the net gas enters the middle box, and is discharged through the air outlet from the opening on both sides of the lower flower plate to the lower box; The air ring box is connected with the air source through the blowpipe, driven by the transmission device, and moves up and down along the filter bag. When the air ring box moves from the top down, the compressed air is sprayed into the filter bag through the annular slit on the air ring pipe, and the dust attached to the surface falls along the top-down air flow, and the filter bag can be cleaned, and then the dust is unloaded by the ash discharge valve.

Technical parameter
