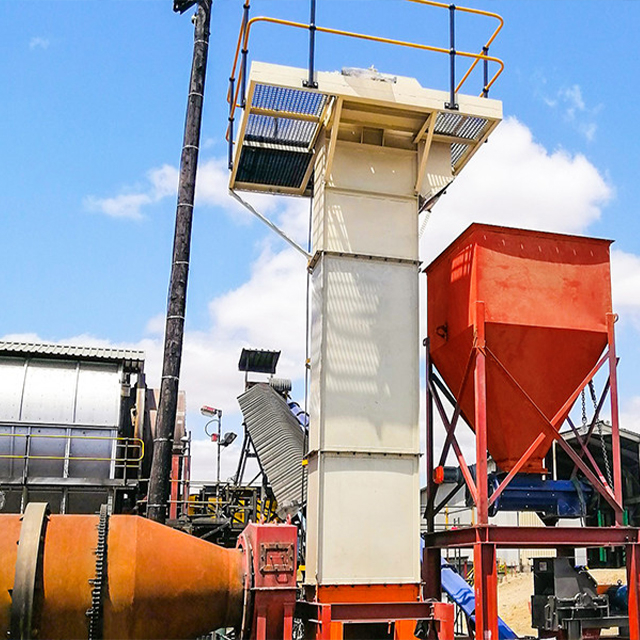

TH Ring Chain Bucket Elevator

TH ring chain bucket elevator

Product introduction: The company's TH type bucket elevator is a kind of ring chain bucket elevator, there are four models, can be equipped with deep bucket or shallow bucket, can transport materials 15~94m³ per hour, lifting height 3.88~38.38m, suitable for the particle size of 50mm below the material promotion, can meet the production needs of most enterprises.

Conveying capacity: 15~94m³/h

Model: TH160-TH400

Application: power, chemical, metallurgy, building materials, mining and other industries of material upgrading.

TH ring chain bucket elevator product introduction

TH type bucket elevator is a continuous vertical lifting of loose materials ring chain bucket lifting equipment, mainly used to lift a variety of non-grinding or grinding of small loose materials and pieces of materials, the type of elevator lifting material temperature is generally below 250℃, with large lifting capacity, stable operation, small footprint, high lifting height, easy operation and maintenance.

Outstanding advantage

1. Compact structure, small size and small space;

2, the middle shell are welded by bending components, so that the shell has high overall stiffness and reliability;

3, the transmission sprocket is an integral structure, and the surface has been strengthened, easy to install, high strength, wear resistance;

4, between each section and the maintenance door are equipped with a sealing device to ensure no dust leakage, to achieve clean and environmentally friendly production.

Working principle

TH type bucket elevator is a continuous vertical lifting of loose materials ring chain bucket lifting equipment, mainly used to lift a variety of non-grinding or grinding of small loose materials and pieces of materials, the type of elevator lifting material temperature is generally below 250℃, with large lifting capacity, stable operation, small footprint, high lifting height, easy operation and maintenance.

Technical parameter
