TPO/PE/EVA Polymer Waterproofing Membrane Production Line

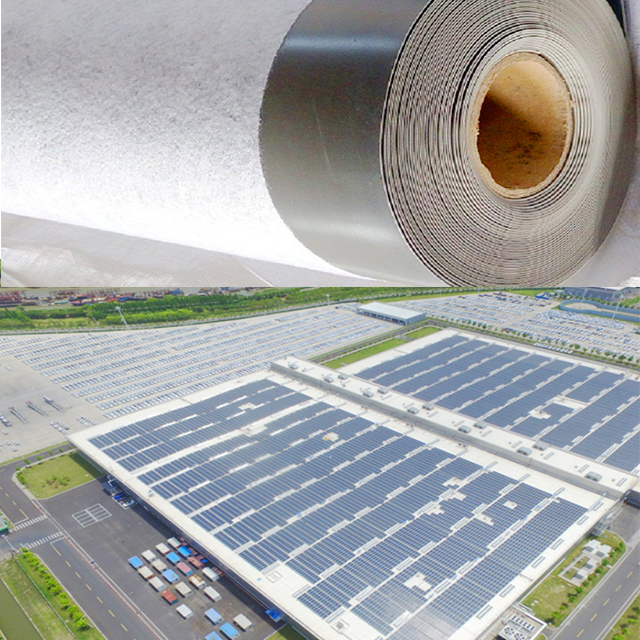

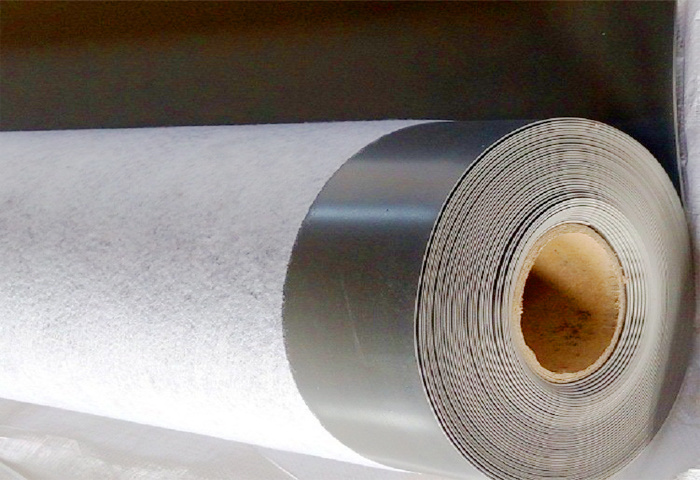

TPO waterproofing membrane is a new type of waterproofing membrane made by extruding thermoplastic polyolefin with antioxidants, anti-aging agents, softeners, etc. It has a polyurethane mesh fabric reinforcing layer in the middle and is coated with fabric fibers and aluminum film on the surface. TPO waterproofing membrane has excellent weather resistance and flexibility. It is mainly used in various waterproofing projects for buildings such as roofs, basements and tunnels.
Availability:
Quantity:

Product Introduction

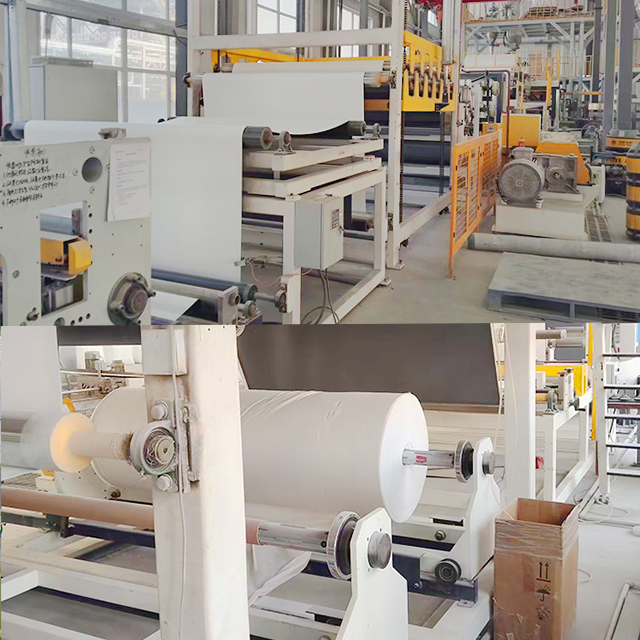

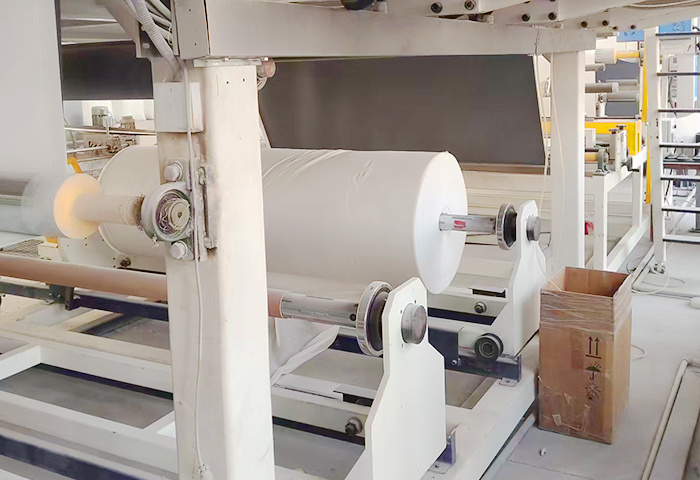

The TPO waterproofing membrane production line is a TPO-specific model jointly developed by our company based on the customer's many years of production experience. Its design concept and technical content have guiding significance for the industry. The production is stable, the output is high, the defect rate is low, and the equipment operation is simple. Among them, the multi-layer TPO waterproofing membrane has been tested and shown to have the highest peel strength in the industry. The production of high-molecular TPO waterproofing membranes that can meet the requirements of homogeneous membranes, membranes with fiber backing, and membranes with fabric internal reinforcement. The production line has a simple structure and is easy to operate. According to the requirements of customers, different equipment components can be configured for the production of single-layer and multi-layer composite products. It is also possible to add unwinding devices to produce inner-reinforced products or surfacing composite non-woven fabrics and other products.

7b3e6f86-3e6f-4a41-b77f-523625f443f7

295a71fb-ac0a-45ec-861f-ccc01e23e4b6

Main uses

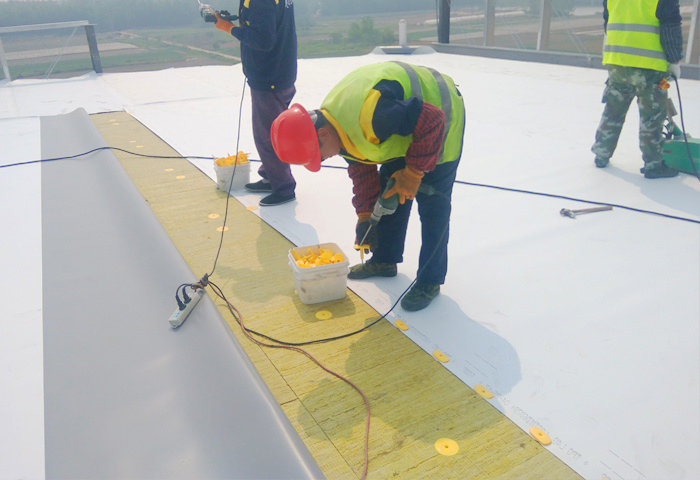

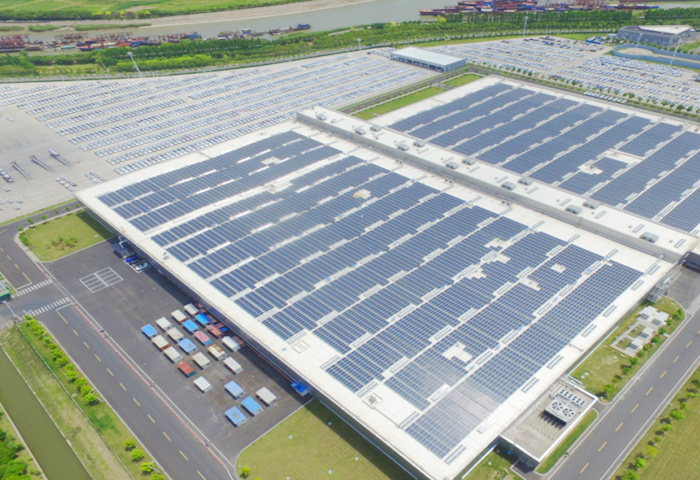

TPO is suitable for exposed or non-exposed roof waterproofing layers of buildings, as well as underground waterproofing of buildings that are prone to deformation. It is especially suitable for light steel structure roofs. With reasonable layer design and qualified construction quality, it not only reduces the weight of the roof but also has excellent energy-saving effects. Moreover, it can prevent waterproofing and condensation. It is the preferred waterproofing material for the roofs of large industrial plants, public buildings, etc.

2bdb891d-7177-4e30-9633-c10ff1df2462

e36c9e56-4d00-4f2e-9e3c-606a31e180a5

Equipment parameters
Model Flat/double
TJ-P75/75
Single screw
TJ-S130/S130
Flat/double
TJ-P95/95
Product structure TPO;TPO-NET-TPO:NET-T
PO-NET
TPO;TPO-NET-TPO;NET-T
PO-NET
TPO;TPO-NET-TPO;NET-T
PO-NET
Product width 2100mm 2100mm 2100mm
Product thickness 1mm-3mm 1mm-3mm 1mm-3mm
Output 1000KG/H 1000KG/H 1300KG/H
Linear velocity 10m/min 10m/min 15m/min
