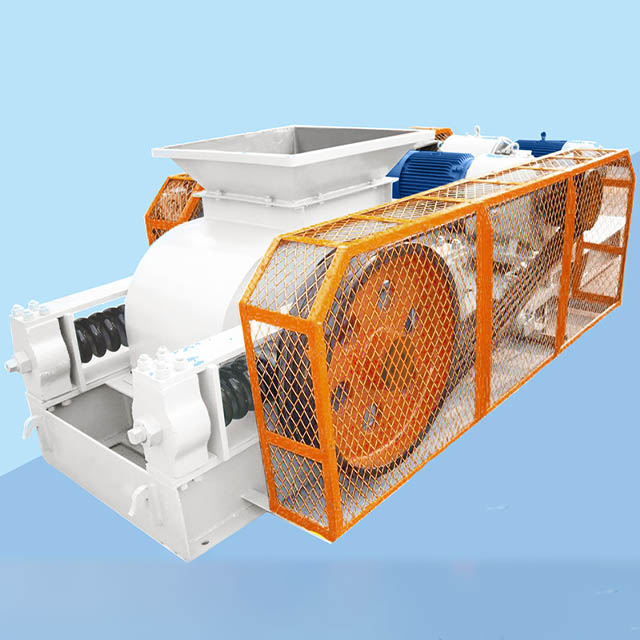

Toothed Roll Crusher

Product introduction: The company's toothed roll crusher products for double-toothed roll crusher, according to the roller diameter and length of different four models, tooth type can be configured according to user needs, the size of imported materials between 200mm-500mm, the discharge particle size between 25mm-150mm, to meet the production of 20-110 tons of production demand.
Application: Suitable for cement, metallurgy, chemical industry, electric power, coal and other industrial sectors.

Availability:
Quantity:

Toothed roll crusher


Product introduction: The company's toothed roll crusher products for double-toothed roll crusher, according to the roller diameter and length of different four models, tooth type can be configured according to user needs, the size of imported materials between 200mm-500mm, the discharge particle size between 25mm-150mm, to meet the production of 20-110 tons of production demand.


Capacity: 20-110(t/h)


Model: 2PGCφ450x500-2PGCφ900×900mm


Application: Suitable for cement, metallurgy, chemical industry, electric power, coal and other industrial sectors.


Tooth roll crusher product introduction

Roller crusher is suitable for crushing all kinds of medium hardness materials in cement, metallurgy, chemical industry, electric power, coal and other industrial sectors, such as limestone, furnace slag, coke, coal and other materials in the fine crushing operation. It can be divided into single roll, double roll and multi-roll several.


Outstanding advantage

1, compared with other types of crushers, this series of crushers has the advantages of large crushing ratio, no requirements on the water content of the crushing material, non-stick and non-blocking, less over crushing, low noise, small vibration, less dust, small footprint, simple and convenient maintenance;


2, equipped with hydraulic automatic surrender device, can effectively prevent the damage of iron blocks to the tooth roller and wood blocks and flexible objects to the normal work of the tooth roller;


3. Equipped with intelligent cleaning device, the adhesive materials on the wall of the crusher can be automatically removed by working condition interval;


4, the use of mechanical, electrical, hydraulic and other multiple protection devices and interlocking devices, effectively protect the motor, crusher and the whole system.


Working principle

The gear roller crusher mainly uses a special wear-resistant gear roller to split and break the material at high speed (the traditional gear roller crusher uses low speed extrusion crushing), forming a high productivity mechanism.


Technical parameter


Model numberRoller diameter (mm)Roll length (mm)Feed size (mm)Discharge size (mm)Production capacity (t/h)Motor power (kW)Weight (t)
2PGCφ450x50045050020025-10020-5511×23.8
2PGCφ600x75060075030050-12550-7518.5×27.4
2PGCφ600x90060090030050-12560-9022×29.6
2PGCφ900x90090090050075-15060-11030×213.7
