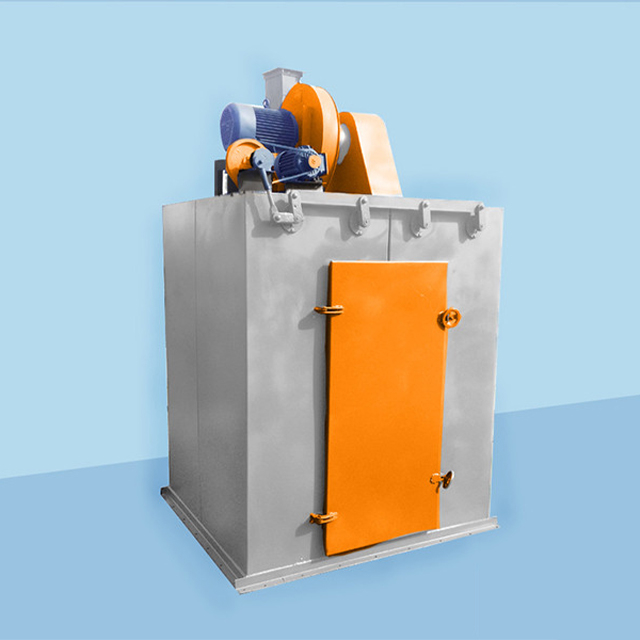

UF Mechanical Vibrating Bag Type Dust Collector

UF mechanical vibrating bag type dust collector

UF series mechanical vibration bag dust collector adopts mechanical vibration ash cleaning method, which can be divided into ordinary type, bin top type and ash cleaning type. The filter wind speed is 0.8-1.2 (m/s), the air volume is 1020-8160m3/h per hour, and the dust collector resistance is less than 1920Pa. It is a small dust collection equipment.

Air volume: 1020-8160 (m3/h)

Model: UF2-UF7

Application: It is mainly used for the dust removal and purification of local discharge points and dust points of various warehouse tops, warehouse bottom, warehouse tops and various transportation equipment.

UF mechanical vibration bag dust collector product introduction

UF series mechanical vibrating bag dust collector is a small bag dust collector which has been improved and designed. It is characterized by strong ash removal capacity of the shaking device, and the dust removal efficiency can reach 99.9%. Economical and practical, compact structure, easy installation and easy maintenance. Main This series of dust collector each specification is divided into A, B, C three types.

Outstanding advantage

The characteristic of this series of dust collector is that the dust removal capacity of the shaking device is strong, and the dust removal efficiency can reach 99.9%. Economical and practical, compact structure, easy installation and easy maintenance.

Working principle

The dust containing gas enters the ash hopper (type A) or ash box (type C) by the air inlet, and then passes through the filter bag or directly after the air inlet (type B) through the filter bag. The coarse particles settle in the ash hopper, ash box or bin due to gravity and inertia, and the fine dust is blocked by the filter bag in the bag wall. The filtered clean gas flows through the filter bag to the air duct and then discharged into the atmosphere. With the increase of filtration time, the dust on the inner surface of the filter bag is gradually increased, and the resistance of the air flow through is also gradually increased. When a certain resistance value is reached (such as 1500Pa), it is necessary to start cleaning so that the dust collector can continue to work. When cleaning, manual or automatic control can be selected according to the need. The suction fan must be turned off first, and the vibration cleaning oscillation device must be opened to vibrate the filter bag to clean the ash and shake the dust in the bag. When the resistance drops to a certain value (such as 1000Pa), the dust removal is stopped manually or automatically, the extraction fan is restarted, and the dust collector enters the filtering state, and so on.

Technical parameter
