With Sieve Ball Mill

With sieve ball mill

With the screen mill as the center drive, circular discharge mill, due to the particularity of its internal structure, in the material crushing, grinding at the same time, but also has a classification function, with high efficiency, energy saving, environmental protection and other characteristics.

Capacity: 0.5-1.1 (t/h)

Specifications: Φ1.9×0.9-Φ2.2×1.2

Weight: 7.2-11.8t

Application: Widely used in abrasives, building materials, resistant materials, chemical and other industries.

Product introduction of ball mill with sieve

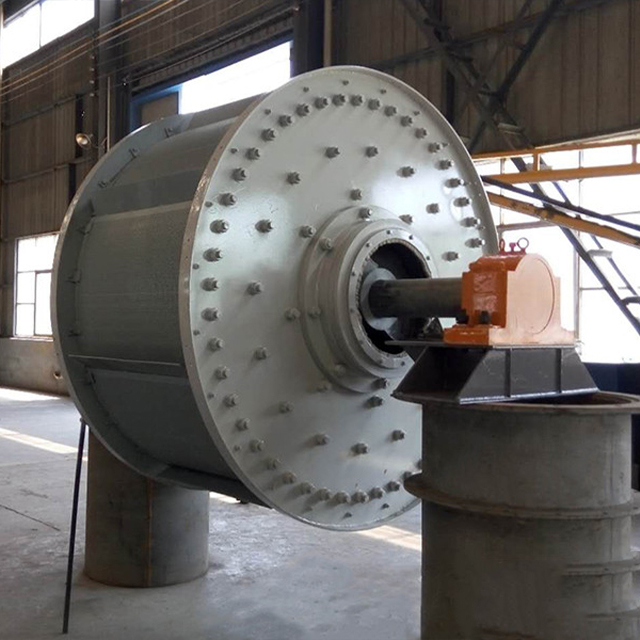

The difference between the ball mill with screen mill and the ordinary ball mill is that there is a screen plate with hole in the discharge port, which has the function of grading while crushing and grinding the material. The company has three specifications and models with screen ball mill, 0.5-1.1t/h, the end plate and lining plate use high manganese steel, the screen is made of carbon steel, and can be adjusted according to user needs, reliable operation, stable and energy saving.

Outstanding advantage

1, grinding and screening concentrated in one, can be completed at the same time;

2, the lining board is cast of high-quality wear-resistant material, wear resistance, long service life;

3, fine product fineness and uniform particle size, particle grading is easy to adjust, high product pass rate;

4, relatively low energy consumption, low operating cost, negative pressure operation, small dust pollution, uniform discharge particle size.

Working principle

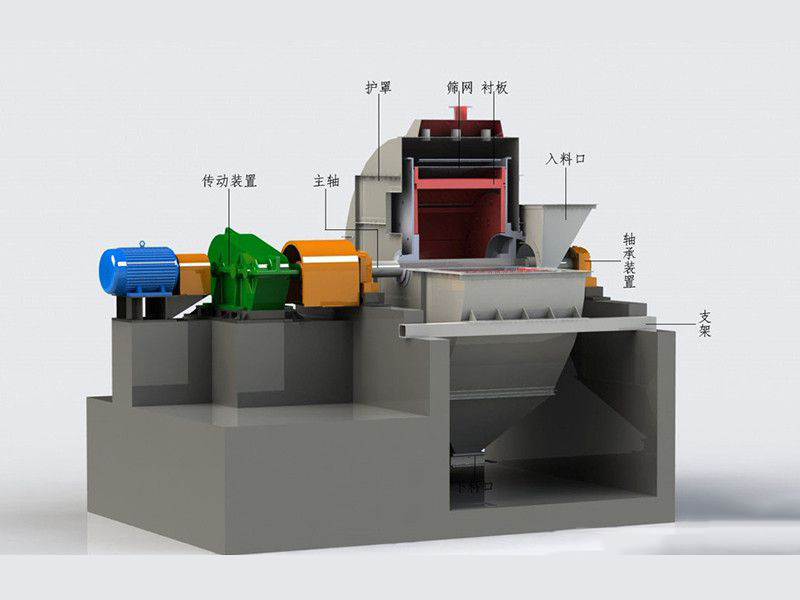

With the screening mill comes with a screen to form a closed grinding and screening circulation system. When the mill rotates, the steel ball is driven by a stepped lining plate under the action of friction, and the material is highly crushed due to the impact and grinding of the moving steel ball. The crushed material is discharged through the screen plate with holes and enters the screen partition. The material with qualified particle size is unloaded through the screen, and the material on the screen is returned to the mill through the material guide plate, so that the product particle size can be better controlled.

Technical parameter
