XB Mixing Tank

Our company provides a variety of washing, flotation, magnetic separation and other equipment used in mineral processing industry to meet the production and use of mineral processing industry, can provide project process design and equipment configuration
Application: The product is suitable for pulp ≤ 30%, according to the solid composition of the raw ore particle size ≤ 1mm.

Availability:

Quantity:



Inquire Add to Basket

Product Description

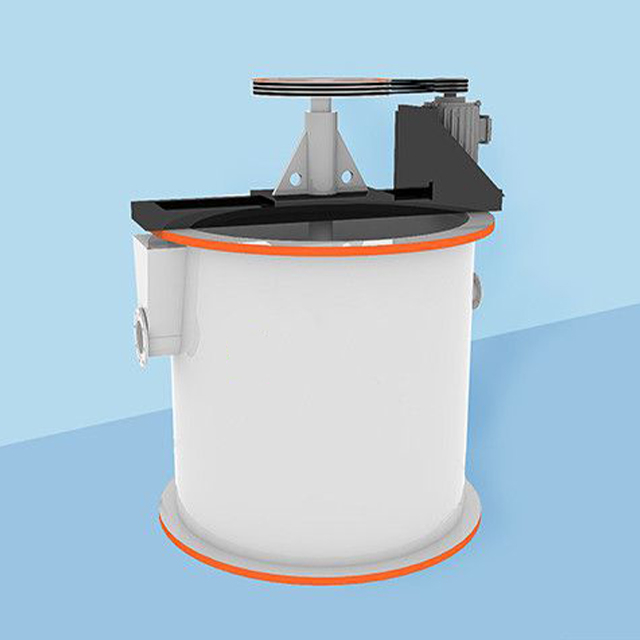

XB Mixing tank

XB type mine mixing tank is suitable for wet mixing slurry materials in various industries, so that the ore particles are suspended and fully in contact with the reagent, mixing, creating conditions for the sorting operation.

Volume: 0.58 ~ 100m³

Model: See the following table of technical parameters

Application: The product is suitable for pulp ≤ 30%, according to the solid composition of the raw ore particle size ≤ 1mm.

XB mixing tank product introduction

Outstanding advantage

1, The impeller diameter is increased, the linear speed is increased, so that the pulp and drug mixing capacity is increased.

2, The impeller is designed as an umbrella impeller, so that the pulp and drug mixing capacity is increased, and the circulation capacity is also strengthened.

3, The groove is equipped with a diversion body, the impeller is located in the diversion body, the stirring capacity is increased, so that the pulp and drugs enter it, the circulation capacity is further strengthened.

4, The umbrella impeller has a downward pressure in the operation process, which strengthens the suction capacity of the pulp, so that the circulation capacity of the pulp and drugs has been strengthened.

5, The lower part of the diversion body is provided with a jet body, pulp and drugs into which the circulation capacity has been further strengthened. The full mixing and circulation of pulp and medicine make the mineral surface fully medicated, which is conducive to flotation.

Working principle

Stirring tank is driven by the motor triangle belt impeller rotation, the drug and pulp fully mixed evenly, increase the reaction time of the drug to strengthen the reaction quality of the necessary equipment, this machine is suitable for mining, can also be used as a variety of chemical industry mixing ingredients.

Technical parameter

Main technical parameters of XB type mine mixing tank
Type	Tank diameter (m)		Tank height (m)		Tank volume (m³)		Impeller diameter (m)	Impeller speed (r/min)		Power (kW)		Weight (t)
XB1000	1.00		1.00		0.58		0.24	530		1.1		0.44
XB1500	1.50		1.50		2.20		0.40	320		1.1		1.08
XB2000	2.00		2.00		5.46		0.55	230		5.5		1.67
XB2500	2.50		2.50		11.20		0.65	200		18.5		3.44
XB3000	3.00		3.00		19.10		0.70	210		22		4.61
xB3500	3.50		3.50		30.00		0.85	230		30		7.28
XB4000	4.00		4.00		45.00		1.00	210		37		9.3
XB4500	4.50		4.50		65.0		1.30	135		37		11.8
XB5000	5.00		5.50		100.00		1.50	55		55		14.22
Main technical parameters of XBT lifting mixing tank
Type specification		Volume (m³)		Impeller diameter (m)		Impeller speed (r/min)			Power (kW)		Weight (t)
XBT-10		0.90		300		460			5.5		0.80
XBT-15		2.80		450		400			7.5		1.50
XBT-20		6.00		550		366			15		2.37
XBT-25		10.00		650		280			22		3.60
XBT-30		21.00		750		250			30		4.80
