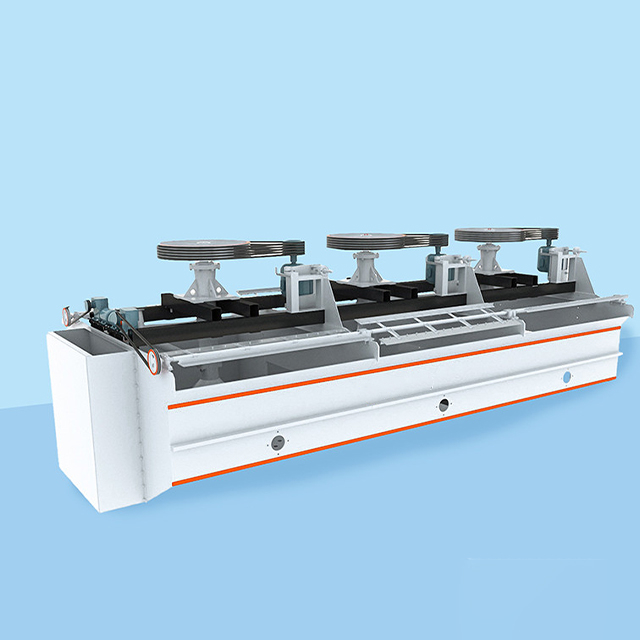

XJ, SF Type Agitation Flotation Machine

XJ, SF type agitation flotation machine

XJ and SF flotation machines are self-aspirated mechanical agitation flotation machines, XJ series tank volume 0.35-5.8m³, impeller diameter 300mm-750mm, processing capacity 0.18-7m³/min; SF series tank volume 0.37-20m³, impeller diameter 296mm-760mm, processing capacity 0.2-20m³/min.

Model: XJ-3-XJ-58, SF-0.37-SF-20

Processing capacity: 0.18-20m³/min

Application: Mainly used in the separation of copper, zinc, lead, nickel, gold and other non-ferrous metals, can also be used for black metal and non-metallic rough selection and selection.

XJ, SF type agitation flotation machine product introduction

XJ, SF type self-priming stirring flotation machine adopts a new structure of forward-leaning tank body, double impeller, equipped with a diversion tube and false bottom device, the slurry in the tank is carried out in a fixed flow mode, which is conducive to the suspension of coarse particles, self-suction air, self-priming pulp, without foam pump.

Outstanding advantage

1, each tank has the triple function of suction, suction and flotation, forming its own flotation circuit, without any auxiliary equipment;

2, horizontal configuration, easy to change the process;

3, pulp circulation is reasonable, can reduce coarse sand precipitation;

4, equipped with pulp surface automatic control device, easy to adjust.

Working principle

When the impeller rotates, a negative pressure zone is formed in the impeller cavity, and the air is sucked into the impeller cavity through the suction tube and the center cylinder, while the pulp is also sucked into the impeller cavity through the circulation on the center cylinder and the cover plate. The gas-liquid mixing is completed here, and the mixed pulp is separated from the impeller blade with large tangential and radial momentum, and dispersed into the groove through the cover plate more evenly. A large number of mineralized bubbles and part of the pulp rise to the upper part of the flotation cell, the scraper will scrape the foam out, the remaining pulp back to the lower part for recycling.

Technical parameter
